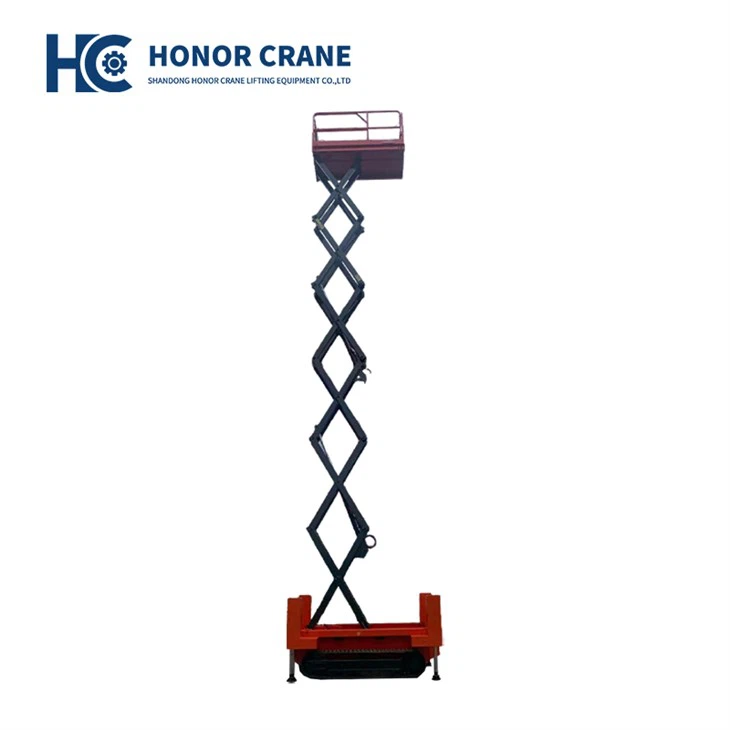

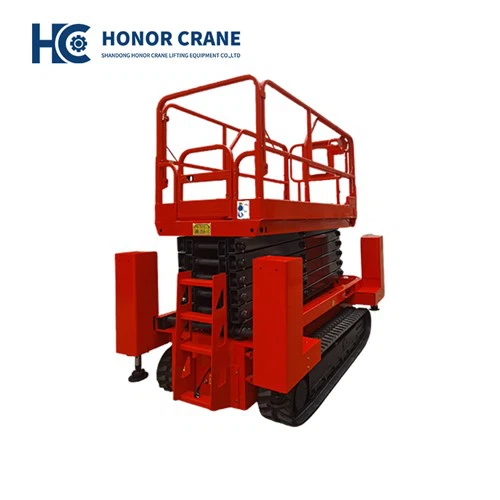

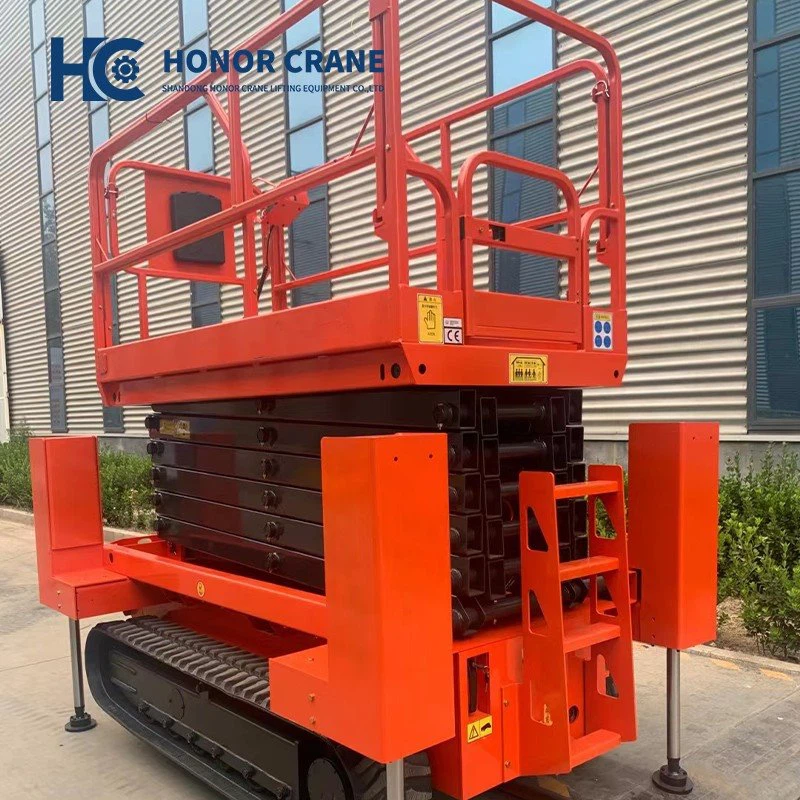

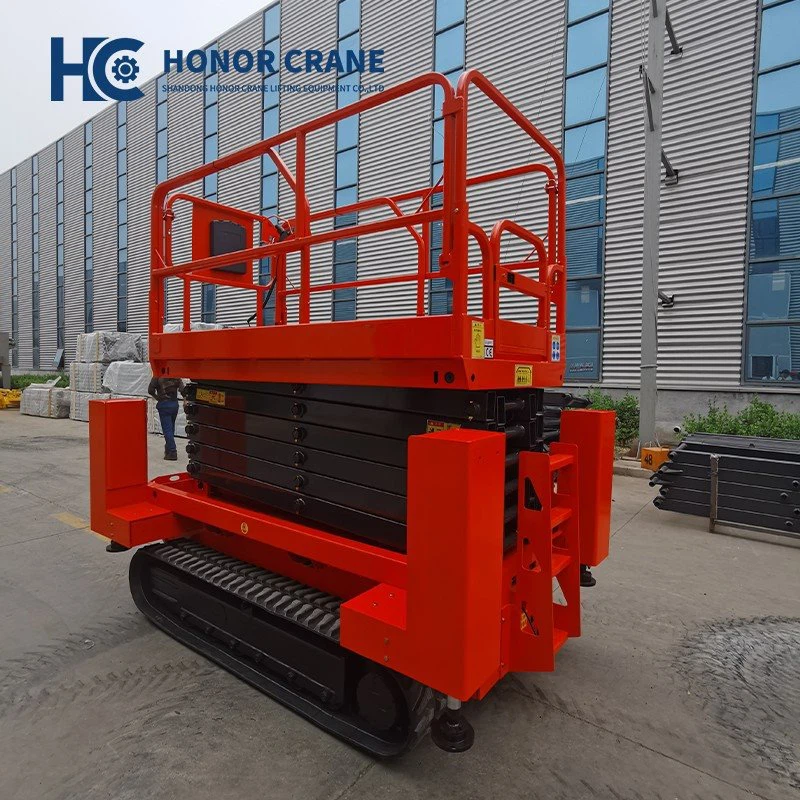

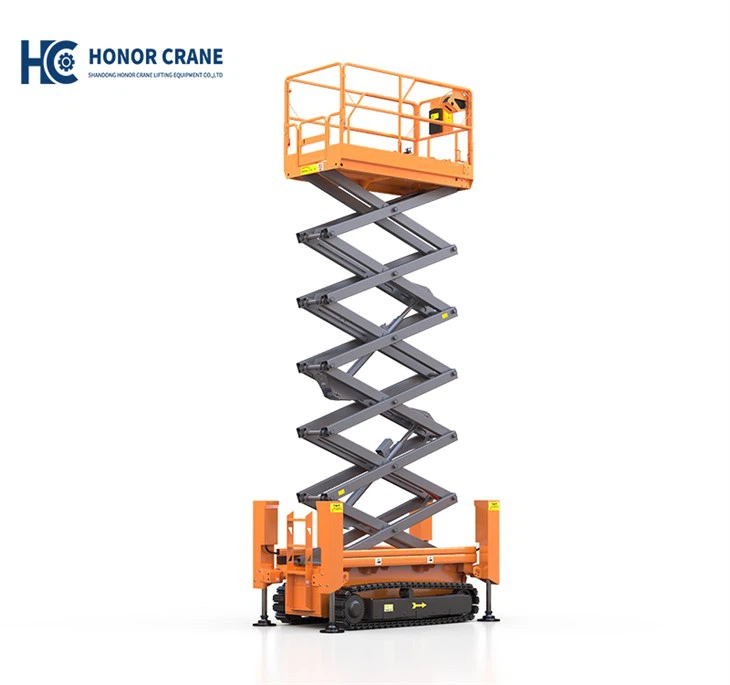

Tracked scissor lifts are advanced aerial work platforms designed to handle harsh and irregular working environments. They combine a powerful hydraulic lifting system with a reinforced tracked chassis, maintaining stable vertical operation while offering exceptional mobility on rugged terrain. Compared to traditional lifting equipment, this design provides greater ground adaptability and reliable performance on uneven surfaces, offering an effective solution for aerial work environments where standard platforms cannot operate.
Application

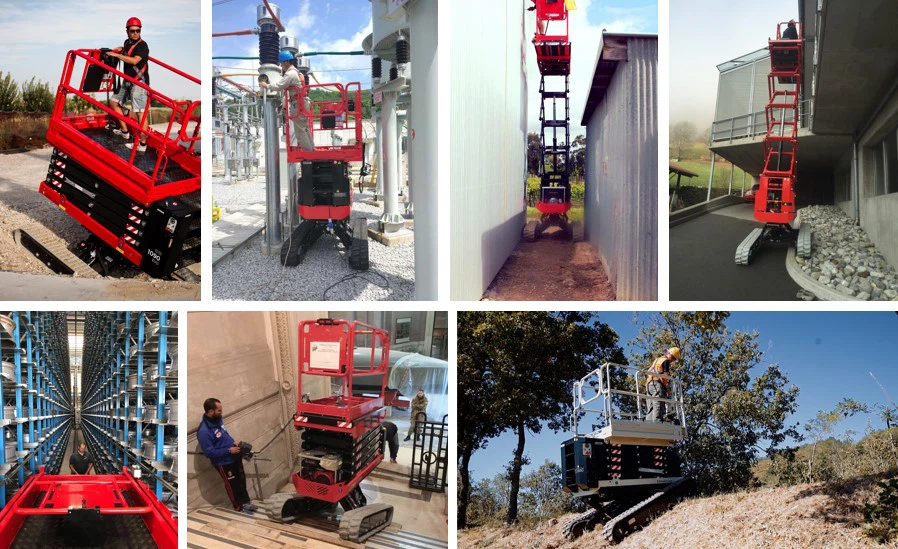

This tracked hydraulic lift is well suited for construction, maintenance, and inspection tasks across demanding environments, including mountainous housing areas, industrial facilities, and restricted indoor locations. The tracked chassis provides reliable stability on uneven or muddy ground, while the compact body design enables efficient operation in narrow or limited spaces. In addition, the lift can be rapidly deployed for emergency response situations, offering a secure elevated platform for urgent repairs and rescue operations.
Operate Video:

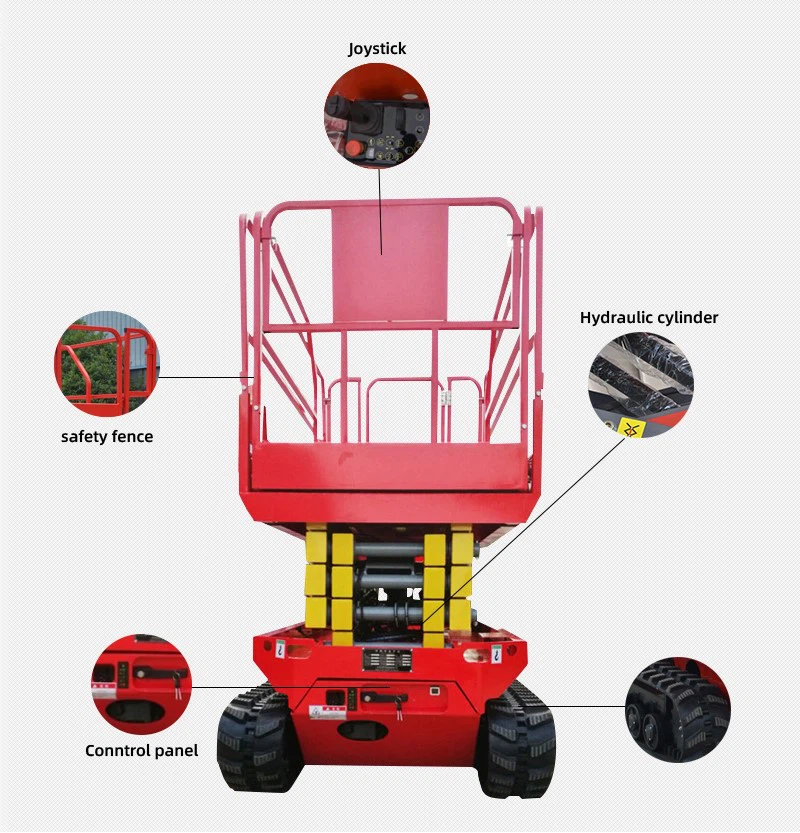

Feature

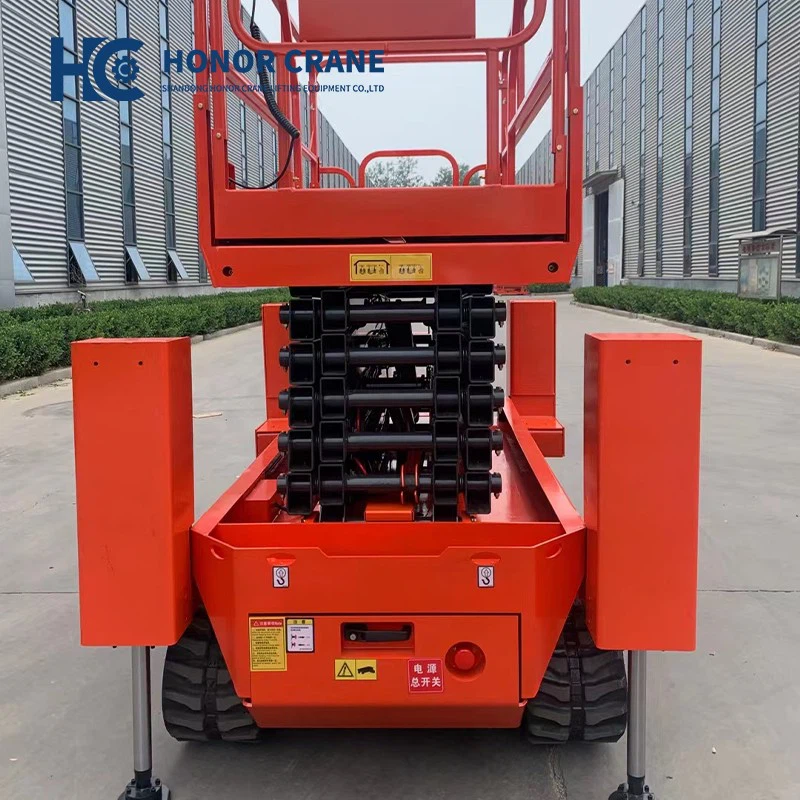

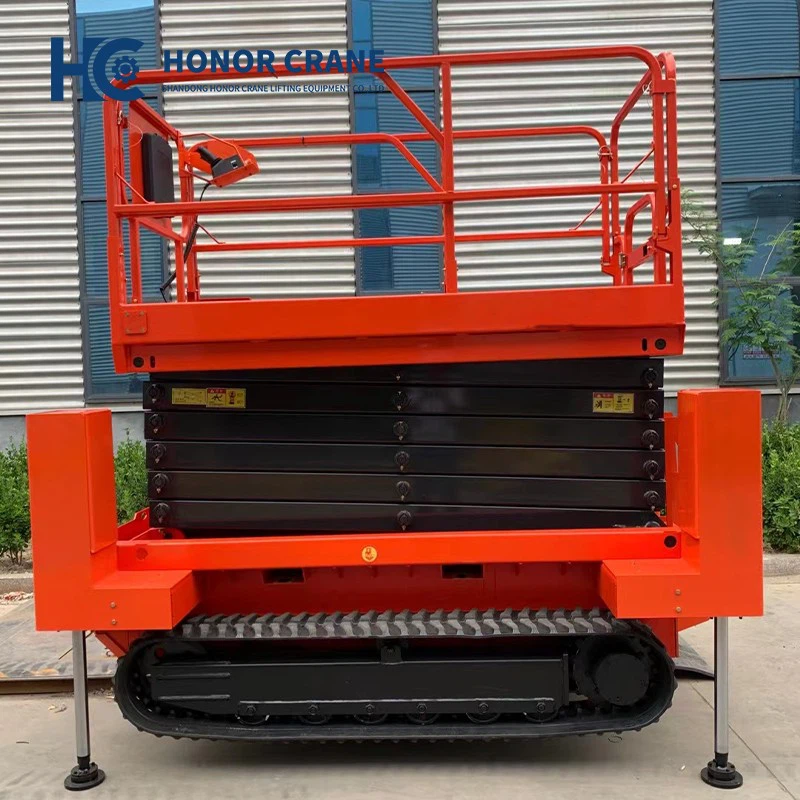

Excellent Terrain Adaptability: Tracked chassis provides strong grip and balanced ground pressure, allowing stable operation on muddy, uneven, or rugged surfaces.
Stable Lifting Performance: Reinforced scissor structure and hydraulic system ensure smooth, controlled vertical lifting with minimal platform sway.
Compact and Maneuverable Design: Small turning radius enables easy movement in narrow spaces and confined job sites.
Efficient Power System: Hydraulic lifting and electric drive delivers reliable power with low noise, high efficiency, and reduced maintenance requirements.
Wide Application Range: Suitable for construction, maintenance, inspection, industrial operations, and emergency rescue in complex environments.
Product Specifications
|
Parameter |
HCPT1416LD |
|
Maximum Working Height |
16m |
|
Maximum Platform Height |
14m |
|
Overall Length |
3.034m |
|
Overall Width |
1.823m |
|
Overall Height (Raised Guardrail) |
2.818m |
|
Overall Height (Folded Guardrail) |
2.288m |
|
Working Platform Size |
2.643×1.115m |
|
Platform Extension Size |
0.9m |
|
Safe Working Load |
320kg |
|
Extension Platform Safe Working Load |
113kg |
|
Minimum Turning Radius |
0mm |
|
Lifting Motor |
48V/4.5KW |
|
Travel Speed (Retracted) |
1.8Km/h |
|
Travel Speed (Elevated) |
0Km/h |
|
Lifting/Lowering Speed |
84/38sec |
|
Maximum Gradient Capacity |
30% |
|
Maximum Working Angle |
1.5°-3° |
|
Battery |
8×12V/100Ah |
Our Advantages of Tracked Scissor Lifts:
With excellent mobility and a compact design, the platform operates efficiently in narrow spaces, wooded areas, and confined construction sites, while its small turning radius ensures smooth maneuvering and reduces setup time. Powered by a high-torque AC drive motor, it provides reliable traction, high energy efficiency, and low maintenance. The electric drive allows quiet, zero-emission operation, suitable for indoor and environmentally sensitive projects. An optional high-capacity Trojan battery extends working time, and features such as electric start, intuitive controls, and a smart touchscreen with real-time monitoring and fault diagnostics enhance both usability and maintenance efficiency.
Notice:
1.Always adhere to the rated load specified on the equipment label. Do not exceed this limit; temporary overloads must not exceed 10% of the rated capacity.
2.Place goods in the center of the platform. Asymmetrical loading is permitted only in exceptional circumstances, and longitudinal and lateral offsets must be well below the rated limits. When loading eccentrically, maintain a safe distance from the platform edges.
3.Personnel lifting is permitted only with appropriate safety measures in place, including guardrails and pipe protection, to prevent falls due to hydraulic system failure.
4.Platform lifting is controlled by a button panel. If the platform is unresponsive, immediately stop operation and perform a system check.
5.If the lift malfunctions or the pressure protection device alarms, immediately disconnect the power. Continued operation under these conditions may cause the hydraulic system to overheat and be damaged. Do not adjust safety devices without authorization.
6.Loading and unloading must be carried out only after the platform has come to a complete stop to prevent tipping during operation.
