Your Professional Heavy Duty Scissor Lift Table Manufacturer & Supplier



Shandong Honor Crane Lifting Equipment Co., Ltd, established in 2014, is a specialized manufacturer dedicated to the R&D, production, and global sales of lifting equipment. Boasting a modern manufacturing facility spanning over 3,000 square meters, we possess an annual production capacity exceeding 1,000 sets of lifting equipment. Our product range includes:Hydraulic Scissor Lifts, Mobile Scissor Lift Platforms, Self-Propelled Scissor Lifts, Electric Forklift Truck, Dock Levelers, Customized Lifting Platforms.




Why Choose Us





Advanced Equipment

We are equipped with CNC cutting machines, automated welding systems, hydraulic testing systems, painting production lines, and load testing equipment, thereby ensuring precision in our manufacturing processes and stability in product quality.



Quality Control

From raw material selection, structural fabrication, and hydraulic assembly to final inspection and testing, every stage is subject to rigorous management and control to ensure product safety, durability, and stable long-term performance.



Global Market Experience

Our products are exported to numerous regions—including Europe, Southeast Asia, the Middle East, South America, and Africa—allowing us to accumulate extensive experience in cross-regional technical adaptation, localized service provision, and regulatory compliance.





Specification



Product Name

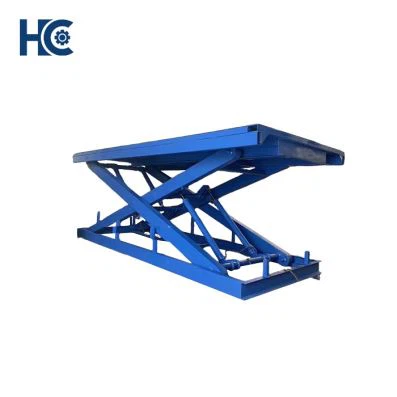

Industrial Power Stationary Scissor Lift Table

Parameter

Specification

Capacity

2000-6000 kgs

Platform Size

2000mm*5000mm

Traveling Height

2000 – 8000mm

Power Supply

220V, 380V, 400V and 415V

Lift Drive

Hydraulic System

Lifting Speed

4-6m/min

Benefits of Heavy Duty Scissor Lift Table



Improved Efficiency

Allows quick lifting and positioning of heavy loads, streamlining loading, unloading, and assembly tasks.

01

Enhanced Safety

Reduces the risk of injury and fatigue by positioning items at ergonomic working heights, minimizing the need for manual lifting

02

Increased Productivity

Supports comfortable and efficient work conditions, allowing employees to work more effectively.

03

Versatility Across Industries

Useful in manufacturing, warehousing, logistics, and other fields requiring frequent lifting and positioning of materials.

04

Cost-Effectiveness

Durable construction and high weight capacity make heavy duty scissor lift tables a reliable, long-term investment for businesses.

05





Parts of Heavy Duty Scissor Lift Table

① Platform – A site on which the lifted cargo stays. It can be customized in different dimensions according to your needs. Also optional parts are available such as guardrails, ramp, anti-skid plate and so on.
② Scissor legs – Just like legs of all creatures, they are used to support the lift table and make the platform change height.
③ Hydraulic cylinders – Different lift models have different number of hydraulic cylinders. They give power to the table and guarantee that the lift table can move up and down.
④ Motor/power source – It is the heart of the whole equipment. It directly provides power for hydraulic pump by electricity or air. Then the lift table is actuated to the designated height. The voltage of power source can also be customized according to your country's standards.
⑤ Base – It is the bottom of the equipment that lies in the ground. The scissor legs move in the embedded track in this base. It can be installed in a pit or directly fixed on the ground to cater to different work sites.

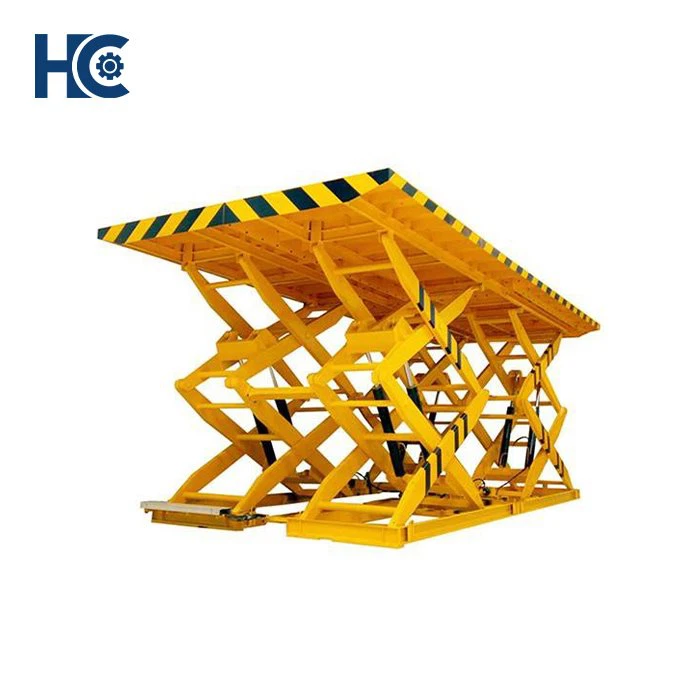

重型液压升降平台
Hydraulic Double Scissor Lift



Working Principles of Heavy Duty Scissor Lift Table

Forcing the fluid into the hydraulic cylinders, the cylinders' stokes outward make the scissor legs apart and the lift table will move up. And on the contrary, forcing the fluid out of the hydraulic cylinders, the lift table will move down.


Lifting the Table
The two ends of scissors are linked to the base and platform respectively so that when the legs open, the platform will rise vertically to reach the height specified. The key part to power the lift table is called check valve.


Lowering the Table
Open a down valve to lower the lift table. This kind of down valve usually stays at a “normally closed” state, for it is being closed unless the electric solenoid is actuated. Therefore, even though a power failure takes place if by chance, the lift table won't lower accordingly. Such safe design markedly reduces the risks of accidents in operations.



Heavy Duty Scissor Lift Table for Industrial Applications


Material Handling
Handling and shifting heavy items such as large equipment, raw materials, etc. is a standard part of every industrial operation. Heavy duty scissor lift tables for material handling play a crucial role in helping factory workers to move heavy items from one place to another without straining themselves. Transporting or maneuvering heavy materials is easily achieved by adjusting the height of the heavy duty scissor lift tables by pressing a button.



Loading and Unloading Vehicles
A major part of many industrial operations is loading and unloading of heavy or large volumes of materials from and onto transportation vehicles such as trucks or ships. By using a heavy duty scissor lift table for loading and unloading cargo, containers, and other material, workers in factories, dock yards, warehouses and other such facilities can quickly and efficiently raise the scissor lift platform to the level of the truck beds or container ships without any fear of injuring themselves.



Lifting Operations
In a number of industries such as construction, warehousing, retail, etc. Heavy duty scissor lift tables play a crucial role in lifting equipment, loads and personnel to different heights easily and efficiently. The smooth movement and stable platform allow workers to store and organize goods at great heights within storage facilities, saving space, while tools and equipment can be safely transported to different levels of under construction buildings.



Inspection and Maintenance
Across many industries such as manufacturing, automotive, and aviation, one of the most important activities is that of inspection and maintenance of different industrial machinery and equipment to ensure their smooth, safe, and uninterrupted performance. By using industrial scissor lifts tables, maintenance personnel can easily and safely reach high and hard-to-reach locations to carry out effective inspection and maintenance tasks.



Assembly Line Operations
Factory operations such as assembly line require workers to spend significant time in performing repetitive activities, often in uncomfortably high locations or crouched positions. Heavy duty scissor lift tables are frequently used in such operations by adjusting them to a convenient height, thereby providing immense relief from constant bending or reaching, improving both health and productivity.



Welding and Fabrication
In several industries like manufacturing, automotive, and aviation, welding and fabrication of parts is an integral operation. Workers have to approach components from various angles and positions to perform these operations. For such operations, heavy duty scissor lift tables are indispensable industrial lifting equipment to ensure that these operations are performed with great precision from comfortable positions.



Heavy Duty Scissor Lift Table Customization



Load Capacity Options
Different load capacities available to meet light, medium, and heavy industrial lifting requirements.

Platform Size Customization
Platform dimensions can be designed according to cargo size and working space layout.

Lifting Height Adjustment
Lifting height can be customized for different loading docks, production lines, or multi-level operations.

Installation Type
Support pit-mounted or floor-mounted installation depending on site requirements.

Safety Devices
Optional overload protection, emergency stop, safety locks, and anti-fall valves for safer operation.



Packaging and Shipping



Packaging

Wooden box

Transportation methods

Road transport, rail transport, sea transport





FAQ



Q: What is a heavy duty scissor lift table used for?

A: It is designed for lifting heavy loads in industrial environments such as factories, warehouses, loading docks, and production lines. It helps handle bulky or high-weight materials safely and efficiently.

Q: How much load can it carry?

A: Heavy duty models are built for large capacity lifting, typically ranging from one ton to several tons depending on the configuration. The exact load is selected based on application needs.

Q: What lifting height is available?

A: The lifting height can be adjusted according to working requirements, such as ground-to-floor lifting, dock loading, or elevated assembly lines.

As one of the most professional heavy duty scissor lift table manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to buy high-grade heavy duty scissor lift table at competitive price from our factory.
