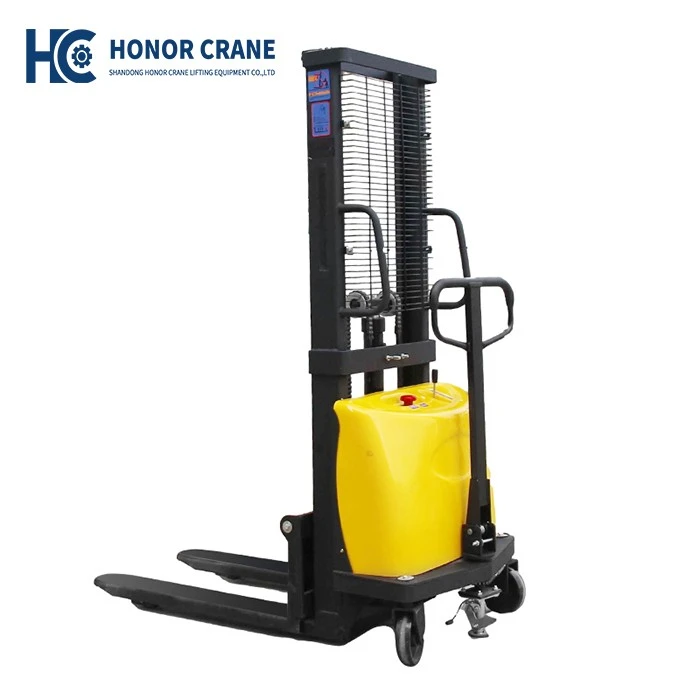

The electric stacker pallet truck is a material handling equipment that integrates electric driving, electric lifting, and stacking functions. It is primarily used for the handling, lifting, and stacking of palletized goods.This equipment utilizes an electric drive system, offering effortless operation and smooth running, effectively reducing manual labor intensity. Compared to ordinary electric pallet trucks, the electric stacker pallet truck has a higher lifting capacity, enabling multi-layer stacking of goods and improving warehouse space utilization. The compact structure and flexible control of the entire vehicle make it suitable for various operating scenarios, including warehouses, factories, logistics centers, and supermarket backrooms.
It is widely used in many fields like the following
Application scenarios of semi-electric lifting stacker:
Explosion-proof scenarios: Chemical, pharmaceutical and other industries. Let's talk about it in detail.
Application in the chemical industry:
Use flameproof motors and electrical systems to prevent electric sparks from igniting flammable gases (such as methane and hydrogen);
Use spark-free materials such as copper alloys and stainless steel for the forks and the body to reduce the risk of mechanical friction;
Equipped with static elimination devices (such as conductive tires and grounding chains) to release static electricity accumulation.
Operate Video:
Feature
Main Features:
Power system: electric lifting and manual pushing.
It uses an electric motor to drive a hydraulic pump, enabling smooth lifting and lowering of the forks. The entire lifting process is characterized by a gentle start, smooth operation, and quick response, effectively avoiding the jerks and impacts that occur during lifting with traditional manual or low-configuration equipment.
During operation, the operator can achieve precise height adjustment through the control handle, allowing the forks to remain stable at the desired height. This facilitates docking with different levels of shelves or stacking positions, improving the accuracy and safety of loading and unloading goods. Even at higher lifting heights, the equipment maintains excellent stability, reducing cargo sway.
Product Specifications
|
Product Name |
Electric Stacker Pallet Jack |
|
Load capacity (kg) |
1000-2000kg |
|
Lifting Height |
1.6-3.5m |
|
Power type |
Manual Pull, Electric Lifting |
|
Color |
Yellow and also can customized |
|
Self Weight (kg) |
380-530kg |
|
Battery Capacity |
12V/120Ah(customizable) |
Packing & Handle Hydraulic Stacker
Package Type: Wooden Crate Packaging
For export orders or long-distance sea freight, the equipment can be packaged in fully enclosed wooden crates:
1. The wooden crates have a sturdy structure with strong resistance to compression and impact.
2. The equipment is securely fixed inside the crate to prevent movement.
3. Moisture-proof materials can be added as needed to suit the marine environment.
4. The outside of the wooden crate will be clearly marked with equipment information, dimensions, and weight, facilitating logistics operations and customs clearance.
Our Advantage of Electric Stacker Pallet Jack:
Excellent spatial adaptability:
The narrow body design (width ≤ 685mm) with an ultra-small turning radius of 1.46 meters allows flexible turning in a 2-meter wide channel.
The scissor-type lifting mechanism supports a lifting height of 3.5 meters, suitable for standard shelves and loft warehouses.
Integrated handling and stacking, one machine for multiple uses.
Combining electric driving and electric lifting, it can perform both short-distance transportation of palletized goods and multi-layer stacking operations, reducing equipment investment and improving efficiency.
