Shandong Honor Crane Lifting Equipment Co., Ltd, established in 2014, is a specialized manufacturer dedicated to the R&D, production, and global sales of lifting equipment. Boasting a modern manufacturing facility spanning over 3,000 square meters, we possess an annual production capacity exceeding 1,000 sets of lifting equipment. Our product range includes:Hydraulic Scissor Lifts, Mobile Scissor Lift Platforms, Self-Propelled Scissor Lifts, Electric Forklift Truck, Dock Levelers, Customized Lifting Platforms.
Why Choose Us
Advanced Equipment
We are equipped with CNC cutting machines, automated welding systems, hydraulic testing systems, painting production lines, and load testing equipment, thereby ensuring precision in our manufacturing processes and stability in product quality.
Quality Control
From raw material selection, structural fabrication, and hydraulic assembly to final inspection and testing, every stage is subject to rigorous management and control to ensure product safety, durability, and stable long-term performance.
Global Market Experience
Our products are exported to numerous regions—including Europe, Southeast Asia, the Middle East, South America, and Africa—allowing us to accumulate extensive experience in cross-regional technical adaptation, localized service provision, and regulatory compliance.
|
Product Name |

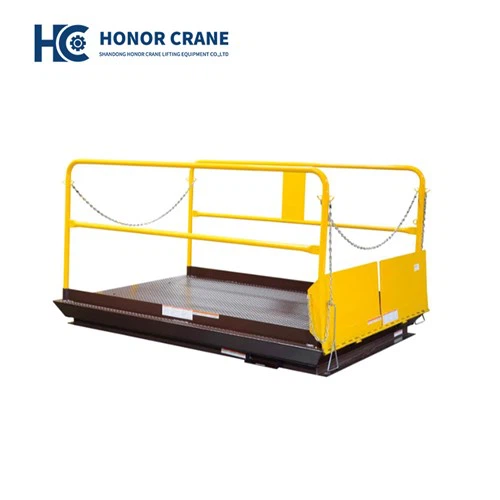

Hydraulic Scissor Dock Lift |
|
Parameter |
Specification |
|
Capacity |
1000-15000 kgs |
|
Platform Size |
Customizable |
|
Stroke |
1000 – 1700mm |
|
Power Supply |
220V, 380V, 400V and 415V Optional |
|
Lift Drive |
Powered by Hydraulic System |
|
Lifting Speed |
4-6m/min |
Improve cargo handling efficiency
The stationary scissor lift platform can smoothly lift goods to a suitable height, making manual loading and unloading of goods more convenient and efficient. By using lifting platforms, warehouse workers can avoid inhumane operations such as bending down and stretching arms for a long time. This can not only reduce the labor intensity of workers, but also improve the efficiency of cargo loading and unloading. Moreover, the equipment can adapt to different loading and unloading height requirements and can handle a variety of goods of different weights and sizes, giving it great flexibility.
Optimize warehouse space utilization
The design of the cargo scissor lift platform takes into account the rational utilization of warehouse space. The intelligent design and structure allow the lifting platform to be perfectly embedded in the warehouse layout without taking up too much space. On the one hand, this can maximize the storage capacity of the warehouse, and on the other hand, it can also increase the storage density of goods. Through scientific layout and use of stationary scissor lifting platforms, warehouses can maximize space utilization and improve the overall efficiency of the warehouse.
Reduce error rates and losses
In the process of warehousing management, the loading, unloading and transportation of goods are links that are prone to errors and losses. Fixed lifting platforms can reduce the occurrence of such errors and losses. Due to the stability and reliability of the equipment, the lifting platform can ensure the stability of the goods during transportation and reduce the risk of damage to the goods. In addition, the height adjustment function of the stationary lifting platform can reduce loading and unloading errors caused by height mismatch.
Improve job safety
In the process of warehouse management, stability and safety are crucial. The fixed lifting platform has a solid structure and safe operating system to ensure the safety of workers and cargo. The equipment is equipped with a number of safety protection devices, such as anti-slip mats, handrails, guardrails, etc., which effectively prevents accidental injuries to people and goods during the lifting process.
Reduce labor costs and improve corporate image
The use of fixed scissor lifting platforms can significantly reduce the time and labor intensity of manual loading and unloading, thereby reducing labor costs. Compared with traditional manual operation, the lifting platform can greatly improve the efficiency of warehouse management and save a lot of human resources. In addition, fixed lifting platforms, as modern storage equipment, can enhance the image and competitiveness of enterprises. This helps to improve the market competitiveness and overall efficiency of the enterprise.
Small Stationary Scissor Lift
Small stationary scissor lifts provide platform heights from 12 to 20 feet and working heights up to 26 feet. They are compact (about 30 to 32 inches wide), making them perfect for indoor use in warehouses or tight spaces. Platform capacity for small lifts usually ranges from 350 to 800 pounds, with some models supporting up to 1,200 pounds.
Medium Stationary Scissor Lift
Medium stationary scissor lifts reach platform heights of 26 to 40 feet and working heights up to 46 feet. These lifts are wider (32 to 69 inches) and can weigh between 4,000 and 9,000 pounds. Electric models typically support 500 to 1,000 pounds, while rough terrain diesel lifts can handle up to 1,500 pounds. The larger platform size allows for more tools and materials, making them versatile for both indoor and outdoor tasks.
Large Stationary Scissor Lift
Large stationary scissor lifts offer platform heights above 40 feet, with some models reaching up to 53 feet and working heights near 60 feet. These heavy-duty lifts are wide (69 to 92 inches) and can weigh over 14,000 pounds. Their weight capacity peaks at 2,500 pounds, making them suitable for multiple workers and heavy equipment on outdoor construction sites or large-scale projects.

Platform of the Stationary Scissor Lift
The platform within a stationary scissor lift's mechanism varies in size, shape, and material. Often referred to as a lift table, this is the area where workers or objects are positioned while being raised or lowered. Equipped with guardrails for safety, platforms used for transporting personnel often include these protective features. Platforms for lifting non-human loads might not have rails.
Stationary Scissor Lift Legs
The stationary scissor lift is constructed with metal struts in an X-shaped pantograph arrangement connecting the platform and base. The height reached by the lift is determined by the length and number of these struts, facilitating the upward and downward motion of the platform. Different power sources can be employed depending on the application specifics.
Hydraulic or Pneumatic Cylinders
Many stationary scissor lifts use between one and four cylinders for compression and expansion. Depending on the design, hydraulic versions use fluid, while pneumatic models use compressed air. By modulating pressure in these cylinders, the platform and scissor legs can be effectively raised or lowered.
The Stable Stationary Scissor Lift Base
The base of a stationary scissor lift is a robust component made from strong brackets, providing essential support. Tracks within this base guide the rollers at the base of the scissor legs, ensuring smooth and steady movement during height adjustments. The base's design can vary based on the model and application.
Powering the Stationary Scissor Lift
stationary scissor lifts derive power from a variety of sources, such as self-contained engines fueled by different types of fuel or external power units. The choice of power source is often influenced by the operating conditions and specific requirements of the lift.
Down Valve for Stationary Scissor Lift
The down valve plays a critical role in controlling the return of hydraulic fluid or compressed air to their reservoirs, thereby regulating how quickly the platform descends. This valve is typically integrated with the power supply system.
Flow Control Valve
The flow control valve is responsible for managing the inflow and outflow of fluid or air in the reservoir cylinder, effectively controlling the speed of ascent and descent of the stationary scissor lift.

Warehouse Loading & Unloading
Used as a warehouse lifting table for transferring goods between floors, storage racks, and loading areas.
Production Line Material Transfer
Installed in factories to support continuous material flow between different production stages.
Dock & Cargo Handling
Acts as an industrial loading platform for efficient loading and unloading of trucks and containers at docks.
Automotive Manufacturing
Applied in assembly lines for lifting vehicle parts, engines, and components during production processes.
Heavy Equipment Assembly Lines
Used in heavy-duty environments to support safe positioning and assembly of large industrial equipment.
Logistics & Distribution Centers
Used in logistics hubs for fast and stable handling of pallets, cartons, and bulk goods between different workflow zones.
Load Capacity Options
Different load capacities available for warehouse, factory, and cargo lifting applications.
01
Platform Size Customization
Platform length and width can be customized to fit different goods and working spaces.
02
Lifting Height Adjustment
Custom lifting heights available for various floor and loading requirements.
03
Power Supply Options
Support for different voltage and power configurations based on local standards.
04
Installation Type
Pit-mounted and floor-mounted designs available for different workplaces.
05
|
Packaging |
Wooden box |
|
Transportation methods |
Road transport, rail transport, sea transport |
As one of the most professional stationary scissor lift manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to buy high-grade stationary scissor lift at competitive price from our factory.
