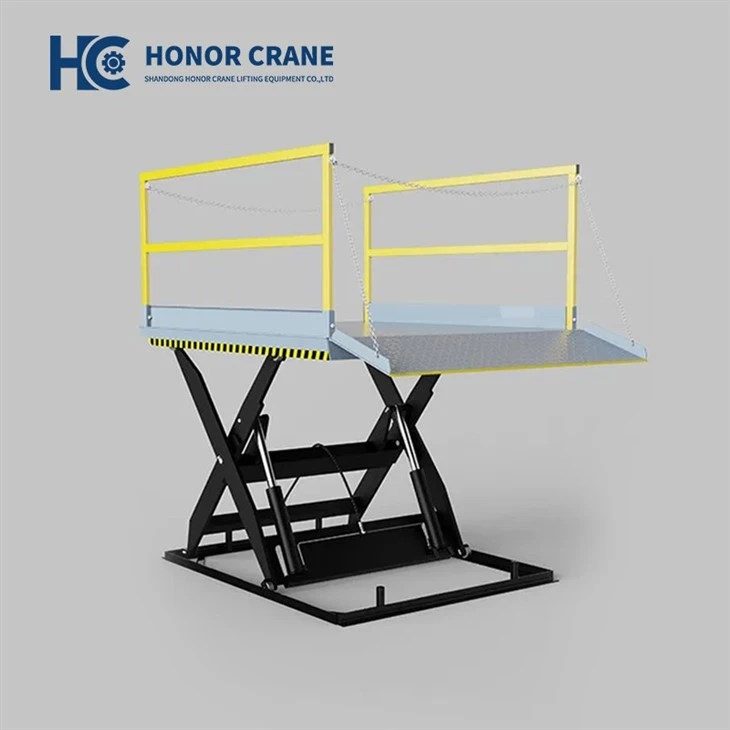

Are you still struggling with the height difference between the truck and the platform? Hydraulic scissor dock lift provides you with efficient solutions. This device is driven by a powerful hydraulic system and relies on a stable scissor structure to achieve smooth takeoff and landing of heavy cargo. It is designed specifically for high-frequency and heavy-duty loading and unloading scenarios, and can flexibly adapt to the height requirements of various types of trucks. Choose it, bid farewell to inefficient manual handling, and embrace a safer and faster logistics turnover experience.
Application
Hydraulic scissor dock lift is widely used in various industrial and logistics scenarios that require solving height difference loading and unloading, and is suitable for the actual operational needs of various industries. The specific applications are as follows:
1. Logistics and warehousing industry: loading and unloading of goods on the platforms of large warehouses and distribution centers, connecting freight trucks and containers of different heights, achieving smooth transition of equipment such as forklifts and hydraulic trucks, adapting to common container specifications such as 20 feet and 40 feet, and improving the efficiency of goods entering and leaving the warehouse.
2. Vertical lifting operations for entry and exit of finished products, suitable for loading and unloading heavy equipment, components, and finished goods, can be used in conjunction with production lines, automatic rolling shutter doors, and other equipment to optimize the production connection process.
3. Dock and Freight Station:
Small docks and short distance freight stations for cargo transfer, solving the height difference problem between trucks and platforms and cargo platforms, without the need for large loading and unloading equipment, flexibly adapting to different vehicle types, and reducing site investment costs.
Feature
1. High stability framework:
Made of robust manganese steel to ensure overall structural stability under heavy load operations.
2. Anti free fall design:
The lifting cylinder is equipped with a speed fuse, which can effectively prevent the platform from suddenly falling even in the event of hydraulic system failure, ensuring operational safety.
3. Flexible installation method:

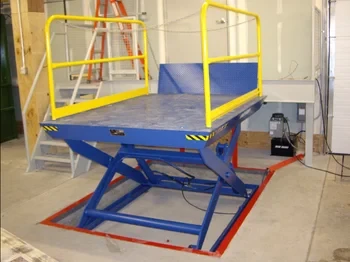

Supports pit installation or ground installation to adapt to different site conditions.
4. Ergonomic configuration:
Equipped with detachable molded pipe guardrails, ensuring the safety of operators and facilitating maintenance and cleaning.
5. Complies with the safety requirements of ANSI MH29.1 Industrial Scissor Lift, ensuring compliance and reliability of the equipment during use.
Product Specifications
|
Product Name |
Hydraulic Scissor Dock Lift |
|
Parameter |
Specification |
|
Capacity |
1000-15000 kgs |
|
Platform Size |
Customizable |
|
Stroke |
1000 – 1700mm |
|
Power Supply |
220V, 380V, 400V and 415V Optional |
|
Lift Drive |
Powered by Hydraulic System |
|
Lifting Speed |
4-6m/min |
Packaging
To ensure that the equipment is not damaged during transportation, this hydraulic scissor dock lift adopts layered protective packaging and strictly follows the industrial equipment transportation packaging standards. The specific packaging details are as follows:
1. Core component protection: Core precision components such as hydraulic pump stations, distribution boxes, and oil cylinders are wrapped in multiple layers of plastic film and cushioned with pearl cotton to prevent collisions and wear during transportation, and to isolate dust and moisture.
2. Small component packaging: All bolts, interfaces, sealing rings, and other small accessories are individually packed in waterproof sealed bags, labeled with component names and quantities for easy installation and retrieval, to avoid loss.
3. Overall packaging: Place all packaged components in a customized export wooden box, reinforce it, seal it tightly, prevent moisture and deformation during transportation, and adapt to various transportation methods such as long-distance sea and land transportation.
Our Advantages
Professional customization:
We not only provide standard products, but also offer customized solutions based on your specific platform height, load-bearing requirements, and operating environment.
01
Quality Commitment:
We use high-quality raw materials, strictly adhere to production standards, and ensure that every device has excellent durability and low failure rates, reducing your long-term operating costs.
Professional and experienced:
We have a senior technical team providing full services from installation guidance to regular maintenance. Based on the pain points of warehousing and logistics, we tailor efficient and safe overall loading and unloading solutions for you.
03
