Why Choose Us

Advanced Equipment

We are equipped with CNC cutting machines, automated welding systems, hydraulic testing systems, painting production lines, and load testing equipment, thereby ensuring precision in our manufacturing processes and stability in product quality.

Quality Control

From raw material selection, structural fabrication, and hydraulic assembly to final inspection and testing, every stage is subject to rigorous management and control to ensure product safety, durability, and stable long-term performance.

Global Market Experience

Our products are exported to numerous regions—including Europe, Southeast Asia, the Middle East, South America, and Africa—allowing us to accumulate extensive experience in cross-regional technical adaptation, localized service provision, and regulatory compliance.

Specification

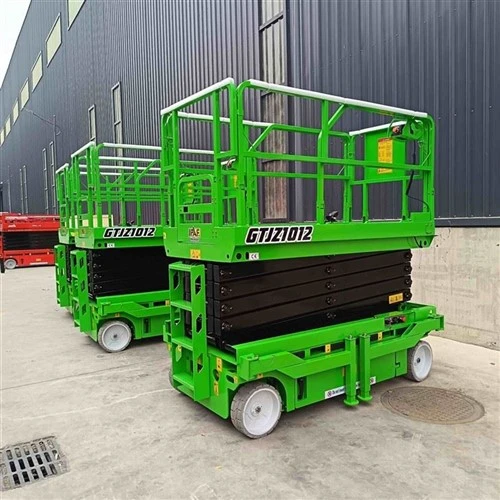

Parameter	GTJZ10
Max. working height	12.00m
Max. platform height	10.00m
Safe working load	320kg
Extended Platform Safe Working Load	113kg
Platform size (L × W × H)	2.29×1.13×1.1m
Overall dimensions (L×W×H; guardrail not folded)	2.495×1.19×2.45m
Overall dimensions (L×W×H; guardrail folded)	2.495×1.19×1.92m
Platform extension size	0.9m
Min. ground clearance	0.1/0.02m
Wheelbase	1.89m
Turning Radius (Inner Wheel/Outer Wheel)	0/2.2m
Lifting/driving motor	24V/3.3kw
Lifting speed	3-5m/min
Machine Travel Speed (Collapsed State)	3.5km/h
Machine Travel Speed (Lifting State)	0.8km/h
Battery	4×12V/200ah

Benefits of Scissor Lift Table

Ease of Use

These lifts are particularly easy to operate. This also means that operators can be trained to use this tool in just a couple of days, allowing you to put it to use with minimal downtime.

Compact Size

A scissor lift table is arguably the most compact type of aerial work platform available. This is important in tight spaces, such as event venues or densely packed warehouses where height access is restricted by stacked crates.

Minimum Floor Space

While other aerial work platforms require a lot of floor space to operate, scissor lift tables are among the most compact lifting equipment. The total area required is virtually equivalent to the area of the liftable platform, making these lifts easy to store.

Easily Customizable

Depending on your business needs, you might want to customize your lift. Scissor lift tables can be tailored to fit your requirements. For example, you can equip yours with tilters to minimize the risk of falling for the operator, or with a turntable that allows it to rotate in addition to lifting the platform.

Economic

Compared to other alternatives, scissor lift tables are arguably the most economical and versatile solution. You can service an entire warehouse with a single vertical lift. Moreover, hydraulic lifts consume almost no power, enhancing their efficiency.

Key Components of Scissor Lift Table

Platform: The platform is the top part of the lift table. It is where lifted items sit.

Base: The base refers to the bottom part of the lift table that rests on the floor. It features a track where scissor legs travel in.

Scissor legs: These are structural members that enable the platform to change elevation.

Hydraulic cylinder: Hydraulic cylinders enable the lift to raise and lower.

Hydraulic power unit (HPU): Scissor lift tables can be powered by either an electric or air motor. The motor provides the necessary power for the hydraulic lift pump to function optimally.

Types of Scissor Lift Tables

Hydraulic Scissor Lift Tables
Hydraulic scissor lift tables are renowned for their power and smooth operation. These systems rely on hydraulic fluid to generate the force required for lifting, which makes them particularly well-suited for heavy-duty applications.
Mechanical Scissor Lift Tables
Mechanical scissor lift tables are chosen for specific applications where unique operational requirements drive the need for a system that's both precise and fast. Characterized by their simplicity and durability, these scissor lift tables utilize mechanisms like chains, ball screws, or rack and pinion systems and are often chosen for applications where straightforward, rugged performance is required.
Pneumatic Scissor Lift Tables
Pneumatic scissor lift tables are powered by compressed air, making them an ideal choice for environments where cleanliness and low noise are critical. These systems are favored in applications that require a fluid-free, smooth, and quiet operation.
Battery Operated Scissor Lift Tables
Battery-operated scissor lift tables combine the advantages of powered lifting with enhanced portability and flexibility. Designed for environments where mobility is key or where access to a constant power source is limited, these systems deliver quiet, efficient performance without the need for direct electrical connections.

Working Process of Scissor Lift Table

This mechanism has linked folding supports in ‘X' form that cross symbolize the scissor mechanism. The platform being lifted is lowered and raised by the power that is applied to the base of the supports, which lengthens the X pattern, thus ascending the platform.

The hydraulic or pneumatic cylinders push on the pins of a scissor mechanism, creating forces on the joints to straighten the legs and raise the table. On the other hand, when the force is released, the scissor mechanism closes, and the table sinks down.

The scissors mechanism of the parallel bars ensures stability and levelness during operation. Depending on the lift direction, scissor legs move the top and bottom of the platform at the same vertical distance, but in opposite directions, and such movements keep the platform horizontal all the time.

Applications of Scissor Lift Table

Warehousing and Distribution: Scissor lift tables are commonly used in warehouses and distribution centers to move materials between different levels including, for example, shelving and loading docks. They can achieve this objective by lowering the need for manual practice and preventing manual injuries.

Manufacturing and Assembly Lines: These places are equipped with scissor lift tables to bring the work to a comfortable level for the workers, thus helping to reduce fatigue and boost productivity. In addition, they may be engaged in the task of carrying heavy parts from one station to another.

Automotive Industry

Scissor lift tables are used for lifting various car parts for repairs. They also help assemble cars. These machines provide safety, performance, and the ability to do several tasks at heights and where strength is required.

Construction Sites

Scissor lift tables are commonly found at the building sites where they are used for tasks such as lifting heavy materials to the upper floors or creating a safe working platform for the workers to perform operations at a high level.

Dockyards and Ports

Scissors lift tables are used for loading and unloading cargoes from ships at dockyards and ports. They aid in the minimization of manual labor and improve the efficiency of operations.

Scissor Lift Table Customization

Load Capacity Options

Different load capacities available to meet various working requirements.

Platform Size Customization

Platform dimensions can be adjusted to fit different workspace layouts and material handling needs.

Lifting Height Adjustment

Lifting height can be designed according to production line, warehouse, or loading requirements.

Table Top Customization

Optional flat top, U-shaped top, roller top, tilting or rotating platform available for different applications.

Installation Type

Support pit-mounted or floor-mounted installation depending on working environment.

Safety Configuration

Optional safety features such as overload protection, emergency stop, anti-fall valve, and safety rail system.

Packaging and Shipping

Packaging	Wooden box
Transportation methods	Road transport, rail transport, sea transport

FAQ

Q: What is a scissor lift table used for?

A: A scissor lift table is mainly used for lifting, lowering, and positioning heavy loads to a comfortable working height. It is commonly found in warehouses, production lines, logistics centers, and maintenance workshops. It helps reduce manual handling and improves work efficiency and safety.

Q: How does a scissor lift table work?

A: It works through a hydraulic system that powers a set of crisscrossed (scissor-like) supports. When the hydraulic cylinder extends, the scissor mechanism opens upward, lifting the platform. When the pressure is released, the platform lowers smoothly and controlled.

Q: What load capacities are available?

A: Scissor lift tables come in a wide range of capacities, typically from 100 kg for light-duty models up to several tons for industrial heavy-duty versions. The right capacity depends on the type of materials being handled and the working environment.

Q: What are the common types of scissor lift tables?

A: The most common types include stationary scissor lift tables, mobile lift tables, low-profile lift tables, and heavy-duty industrial models. Some are fixed in one position, while others are designed with wheels for flexible movement.
