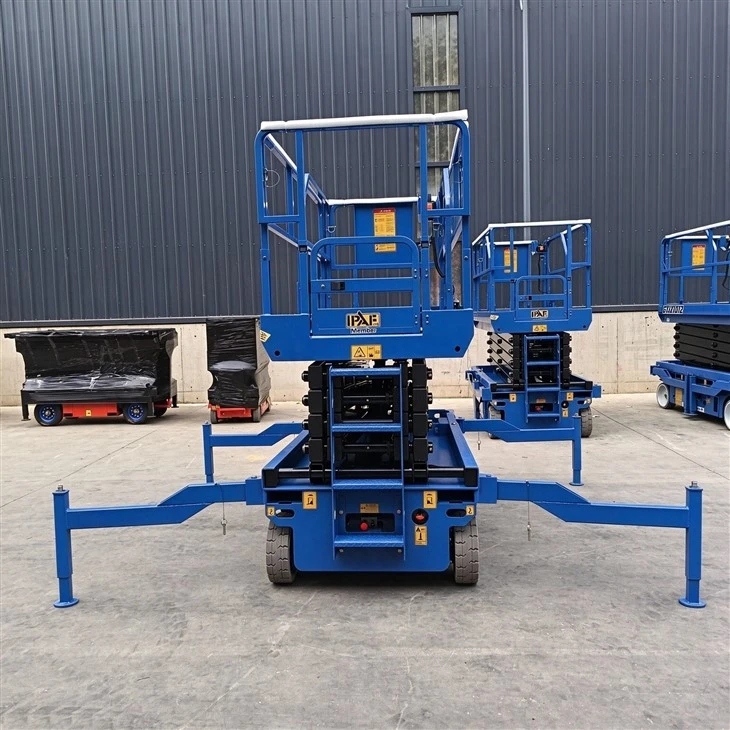

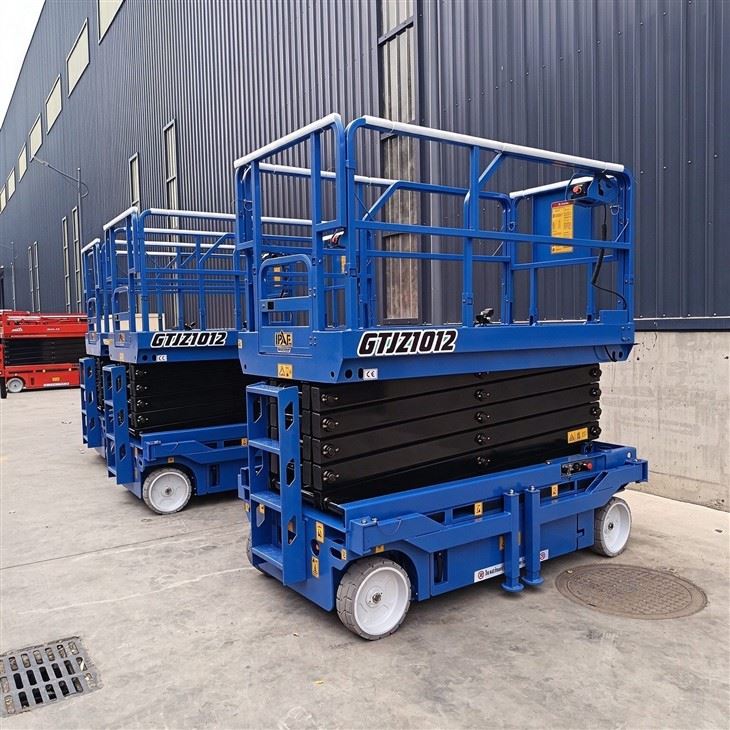

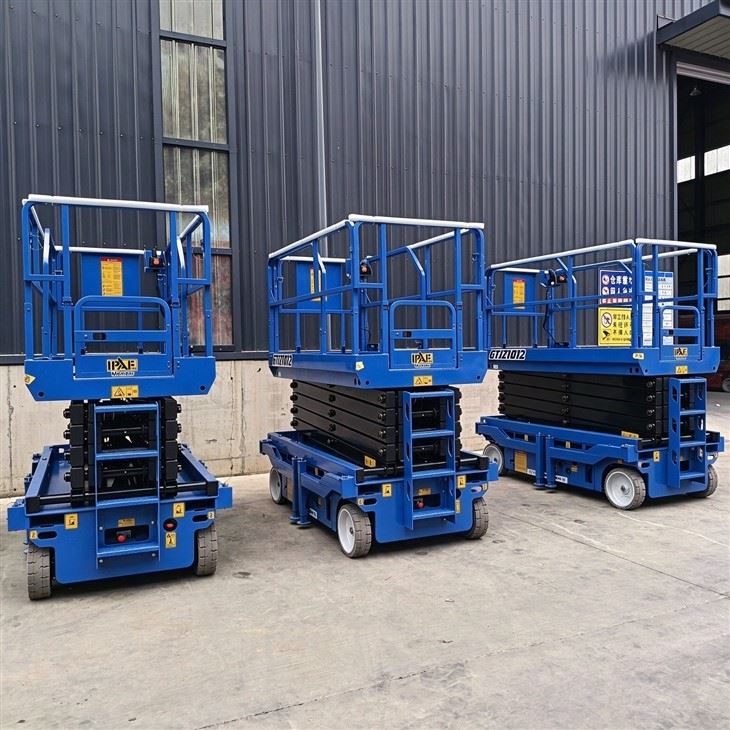

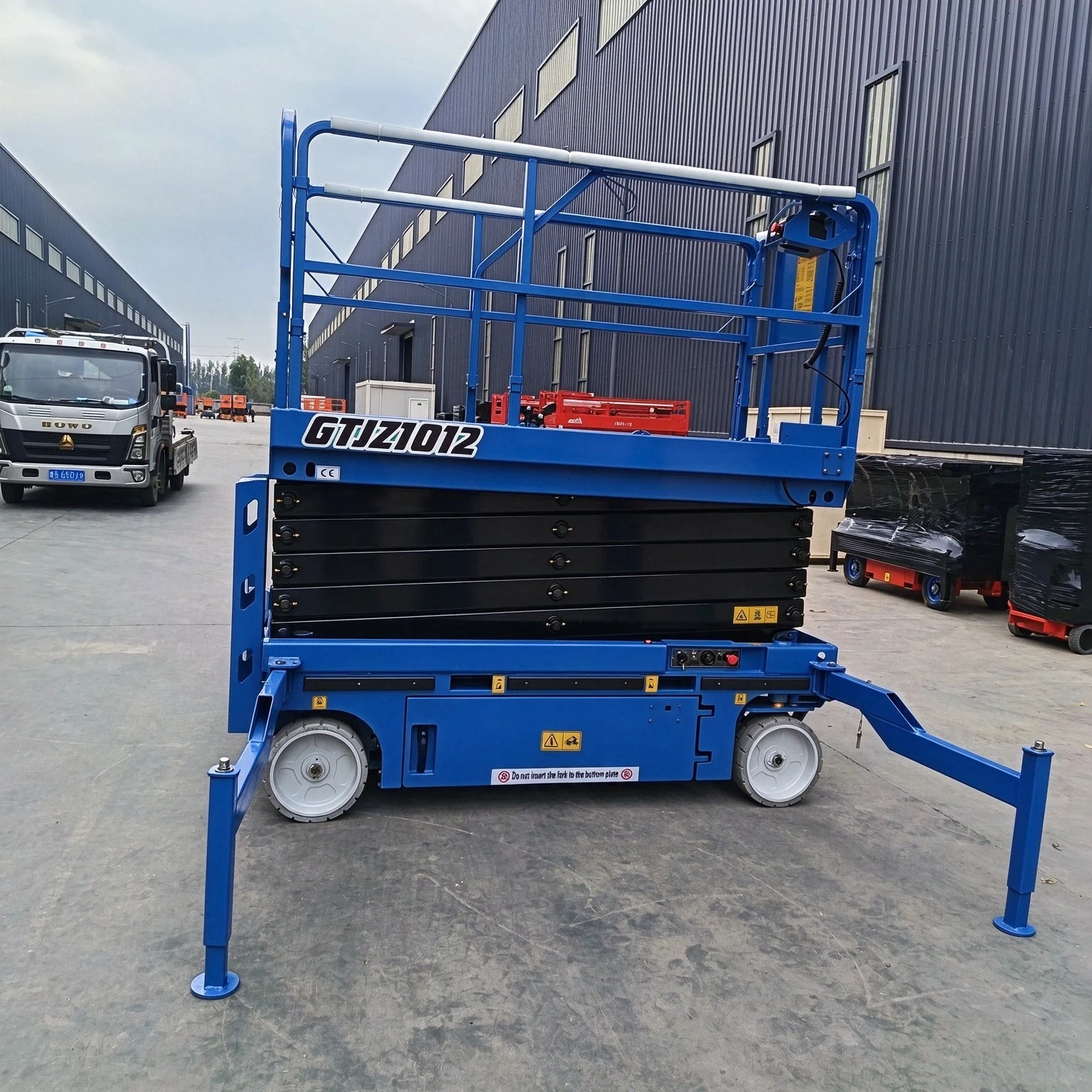

Scissor Lift
| Model | HCGTJZ0406 | HCGTJZ0608 | HCGTJZ0810 | HCGTJZ1012 | HCGTJZ1214 | HCGTJZ1416 |
| Size | ||||||
| Maximum working height | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m | 15.8 m |
| Maximum platform height | 3.8 m | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m |
| Overall length | 1.44 m | 2.39 m | 2.39 m | 2.39 m | 2.39 m | 2.79 m |
| Overall width | 0.70 m | 1.16 m | 1.16 m | 1.16 m | 1.16 m | 1.25 m |
| Overall height (unfolded fence) | 1.86 m | 2.21 m | 2.34 m | 2.47 m | 2.60 m | 2.60 m |
| Overall height (folded fence) | 1.46 m | 1.7 m | 1.82 m | 1.94 m | 2.06 m | 2.1 m |
| Work platform dimensions (length x width) | 1.3*0.68 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.63*1.13 m |
| Platform extension size | 0.55 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Wheelbase | 1.02 m | 1.86 m | 1.86 m | 1.86 m | 1.86 m | 2.23 m |
| Ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Performance | ||||||
| RATED LOAD | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rise/fall time | 3-5m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Front-wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| Tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power | ||||||
| Power source | 2*12V/85AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 1.2KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Drive motor | 2*0.5KW | - | - | - | - | - |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | ||||||
| Whole machine weight | 860 kg | 2100 kg | 2250 kg | 2550 kg | 2950 kg | 3450 kg |
| Model | HCGTJZ0406 | HCGTJZ0608 | HCGTJZ0608 | HCGTJZ0810 | HCGTJZ1012 | HCGTJZ1214 | HCGTJZ1416 |
| Size | |||||||
| Maximum working height | 5.8 m | 7.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m | 15.8 m |
| Maximum platform height | 3.8 m | 5.8 m | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m |
| Overall length | 1.44 m | 1.82 m | 2.39 m | 2.39 m | 2.39 m | 2.39 m | 2.79 m |
| Overall width | 0.70 m | 0.78 m | 1.16 m | 1.16 m | 1.16 m | 1.16 m | 1.25 m |
| Overall height (unfolded fence) | 1.86 m | 2.02 m | 2.21 m | 2.34 m | 2.47 m | 2.60 m | 2.60 m |
| Overall height (folded fence) | 1.46 m | 1.62 m | 1.7 m | 1.82 m | 1.94 m | 2.06 m | 2.1 m |
| Work platform dimensions (length x width) | 1.3*0.68 m | 1.68*0.78 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.63*1.13 m |
| Platform extension size | 0.55 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Wheelbase | 1.02 m | 1.35 m | 1.86 m | 1.86 m | 1.86 m | 1.86 m | 2.23 m |
| Ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Performance | |||||||
| RATED LOAD | 230 kg | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rise/fall time | 3-5m/min | 3-5m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Front-wheel drive | Front-wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| Tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ305*100mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power | |||||||
| Power source | 2*12V/85AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 1.2KW | 1.2KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Drive motor | 2*0.5KW | 2*0.5KW | - | - | - | - | - |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | |||||||
| Whole machine weight | 860 kg | 1200 kg | 2100 kg | 2250 kg | 2550 kg | 2950 kg | 3450 kg |
