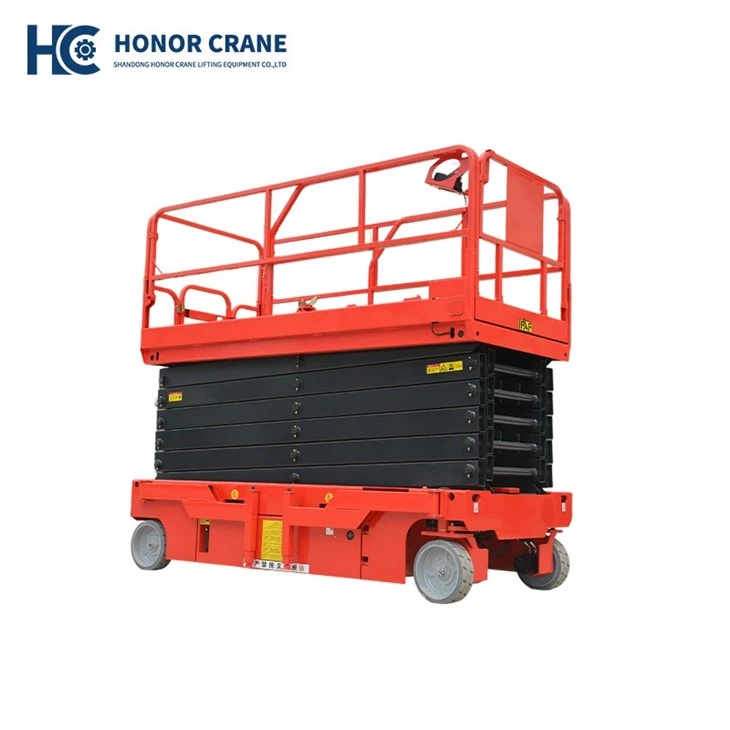

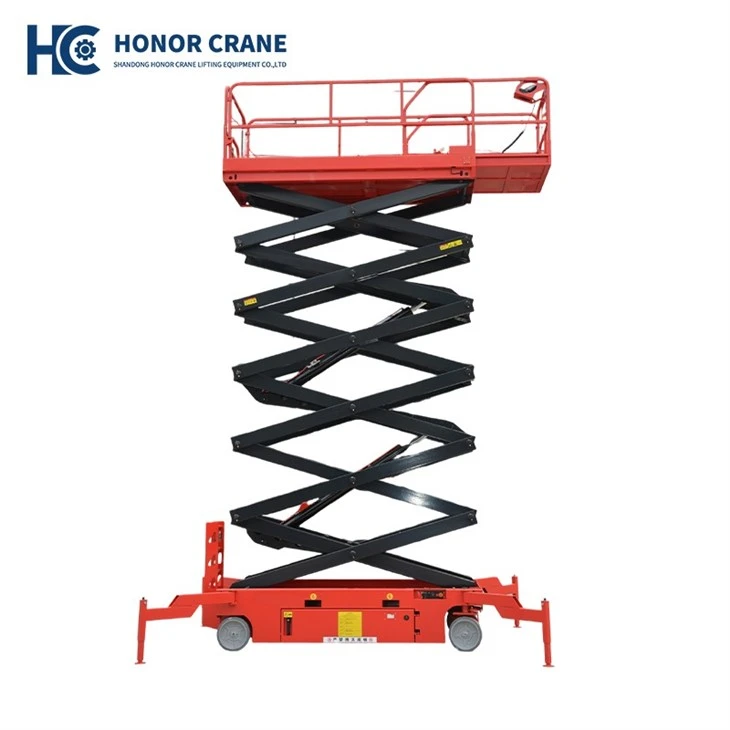

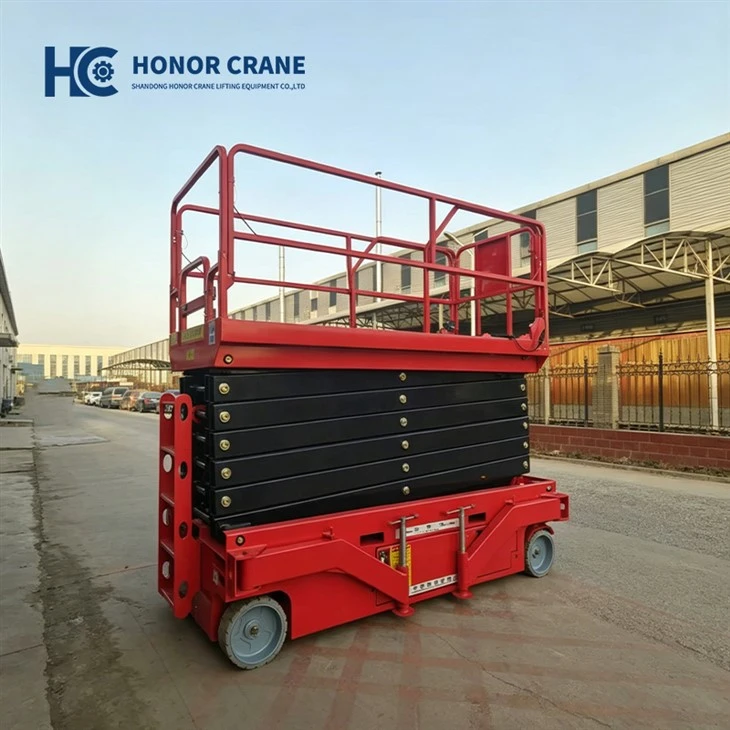

Meet our fully self propelled scissor lift platform, a practical electric aerial work solution tailored for 16meters platform height demands.
Powered by long-lasting storage batteries, it runs quietly with no exhaust pollution, fully fit for indoor renovation, mall maintenance and outdoor construction tasks. Different from ordinary manual moving lifts, this model integrates walking, steering and lifting control on the working platform. Single operator can finish all operations freely, greatly saving labor and improving working efficiency.
Core strengths
1. Zero turning radius:
The inner wheel turning radius is zero, enabling in-place steering in tight spaces, ideal for operations in narrow areas such as warehouses and corridors.
2. Fully autonomous operation:
The platform comes with built-in drives, allowing for lifting, walking, and steering to be controlled by a single operator without requiring additional manpower for traction.
3. Multiple safety protections:
Incline protection, pit protection, emergency descent, emergency stop, overload protection, and oil pipe explosion-proof, meeting indoor and outdoor safety operation standards.
4. Low-maintenance design:
Fault codes displayed directly, rotating chassis for easy inspection, wear-prone components all use universal brand parts, resulting in low maintenance costs.
5. Strong scene adaptability:
The invisible tire does not damage the ground and can operate in various scenarios, both indoors and outdoors, on flat and steep slopes
Operate Video
Feature
This self propelled scissor lift platform is manufactured according to industrial standards, and key components are selected from well-known brands to ensure long-term reliability and maintenance convenience
1. Structural material:
The scissor arm is made of 160 × 80 × 5mm Q345 manganese steel rectangular tube, and the base is treated with shot blasting and painting to prevent corrosion; The guardrail is made of 35 × 35mm square tube and adopts a foldable design to reduce transportation height.
2. Proven hydraulics:
It runs two hydraulic cylinders with built-in burst protection valves, paired with Kunlun N46 anti-wear hydraulic oil. The Danfoss 470 series drive system delivers smooth, precise control at every speed.
3. Reliable electronics:
The Hanbo control box with proportional joystick keeps operations intuitive. Safety components include a Shanghai Molun tilt switch, Ningbo Chengxing door lock, and Qiangtian/Hawei valve group, all designed to prevent unexpected downtime.
4. Practical details:
The self propelled scissor lift platform features a 3mm anti-slip checkered plate for secure footing, plus Ye Feng non-marking solid tires that won't scratch epoxy or marble floors indoors.
Application
Wide application scenarios to meet diverse high-altitude operation needs:
1. Warehousing & Logistics
Ideal for high shelf upkeep, overhead lamp replacement and on-site equipment installation.
2. Commercial Sites
Suitable for glass cleaning, HVAC system arrangement and interior upgrading in office and shopping buildings.
3. Public Service Facilities
Covers daily maintenance of airport terminals, hotel layout arrangement and large stadium routine inspection.
4. Industrial Factory Use
Perfect for steel structure checking, production line overhaul and regular factory equipment servicing.
Product Specifications
|
Parameter |
Self Propelled Scissor Lift Platform |
|
Max. working height |
17.8m |
|
Max. platform height |
15.8m |
|
Safe working load |
320kg |
|
Extended Platform Safe Working Load |
100kg |
|
Platform size (L × W × H) |
3m*1.14m |
|
Overall dimensions (L×W×H; guardrail not folded) |
3.16×1.51×2.88m |
|
Overall dimensions (L×W×H; guardrail folded) |
2.84×1.4×2.26m |
|
Platform extension size |
0.9m |
|
Min. ground clearance |
0.1/0.02m |
|
Wheelbase |
2.4m |
|
Turning Radius (Inner Wheel/Outer Wheel) |
0/3.16m |
|
Lifting/driving motor |
48V/4.5KW |
|
Lifting speed |
3-5m/min |
|
Machine Travel Speed (Collapsed State) |
3.5km/h |
|
Machine Travel Speed (Lifting State) |
0.8km/h |
|
Battery |
4×12V/150ah |
|
Charger |
48V/30A |
|
Max. grade ability |
25% |
|
Max. angle of inclination |
2°/3° |
|
Tires |
Φ381×127mm |
|
Total Weight |
4200kg |
FAQ
|
|
1.Q: How long does the battery last after being fully charged? Is daily charging troublesome?
Equipped with a large capacity dedicated battery, the fully charged state can meet all day normal operations. Equipped with intelligent charging protection, plug-in charging is simple and convenient, effectively extending battery life.
2.Q: Can the equipment operate stably if there is a slight slope or uneven ground on the site?
Equipped with tilt induction protection and pit protection structure, it has good climbing ability, and can smoothly pass through slightly uneven road surfaces and gentle slopes, with stronger operational stability.
3.Q: Is it difficult to maintain and repair in the later stage? Are the parts easy to purchase?
The core adopts well-known accessories commonly used in the market, with reasonable layout, sufficient maintenance space, simple troubleshooting, convenient procurement of conventional vulnerable parts, and lower overall maintenance costs.
