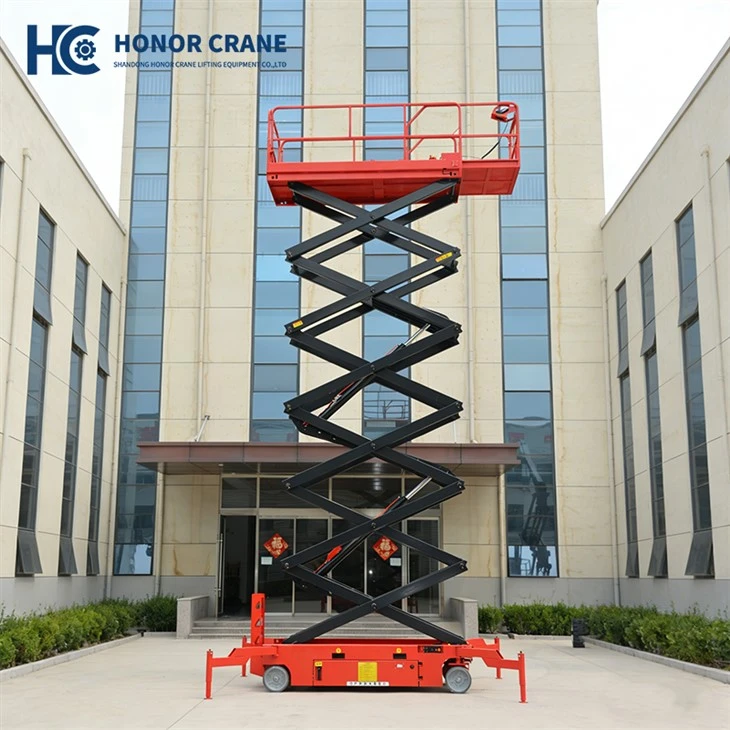

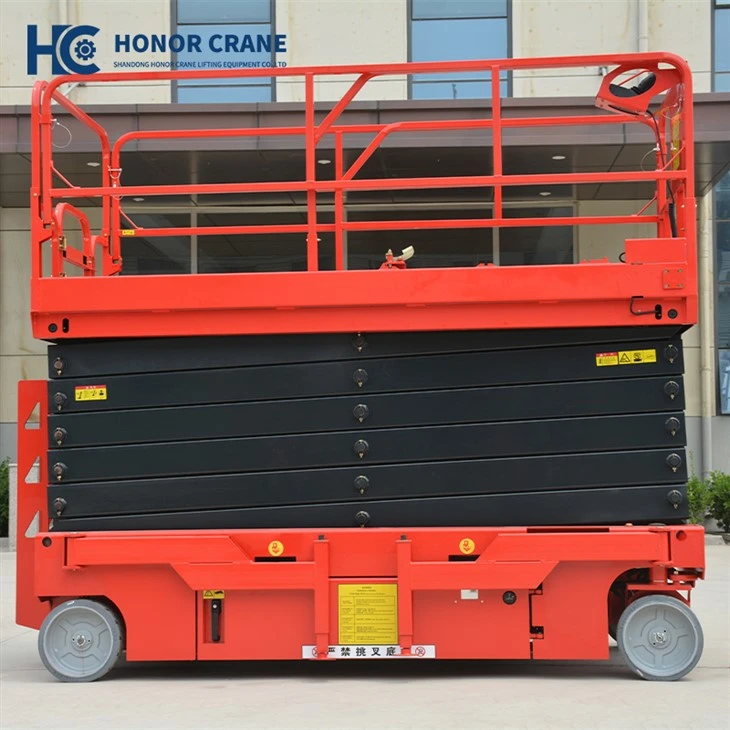

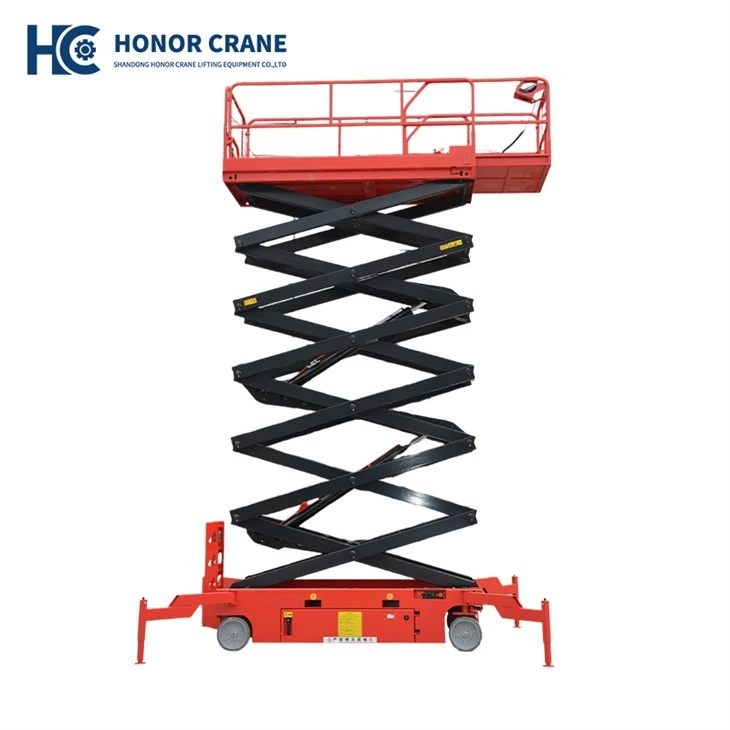

The core highlight of this scissor lift self propelled is its autonomous walking design, equipped with a high-efficiency hydraulic lifting system. It integrates three major characteristics: flexible movement, smooth lifting, and safe operation, making it an efficient and adaptable piece of equipment for high-altitude operations in various industries. It eliminates the need for manual traction and pushing, effectively saving labor costs and significantly improving workstation switching efficiency and overall operational efficiency.
Application
From residential building maintenance to airport terminal upkeep, this self-propelled scissor lift meets the needs of various properties and public facilities. Its dual control system offers flexible operation, and its non-marking wheels protect the delicate floors of commercial centers and lobbies, ensuring efficient operation while protecting the ground.
Operate Video:
Feature
1.Hydraulic Lifting System:
Smooth operation, precise speed control, standard explosion-proof oil pipe valve.
2.Overload Protection:
Built-in warning device and sensor to mitigate risks associated with working at height.
3.Extendable Work Platform:
0.6-meter detachable extension platform, non-slip steel platform and detachable guardrails.
4.Autonomous Electric Drive:
Independent movement, no external pulling required, suitable for large-area/long-distance operations.
5.High-Elasticity Silent Wheels:
Shock-absorbing and non-marking, low-noise operation, effectively protecting the working surface.
Product Specifications
|
Parameter |
GTJZ14 |
|
Max. working height |
15.8m |
|
Max. platform height |
13.8m |
|
Safe working load |
227kg |
|
Extended Platform Safe Working Load |
113kg |
|
Platform size (L × W × H) |
2.67×1.13×1.1m |
|
Overall dimensions (L×W×H; guardrail not folded) |
2.84×1.4×2.595m |
|
Overall dimensions (L×W×H; guardrail folded) |
2.84×1.4×2.06m |
|
Platform extension size |
0.9m |
|
Min. ground clearance |
0.1/0.02m |
|
Wheelbase |
2.26m |
|
Turning Radius (Inner Wheel/Outer Wheel) |
0/2.7m |
|
Lifting/driving motor |
24V/4.5KW |
|
Lifting speed |
3-5m/min |
|
Machine Travel Speed (Collapsed State) |
3.5km/h |
|
Machine Travel Speed (Lifting State) |
0.8km/h |
|
Battery |
4×12V/200ah |
|
Charger |
24V/30A |
|
Max. grade ability |
25% |
|
Max. angle of inclination |
1.5°/3° |
|
Tires |
Φ381×127mm |
|
Total Weight |
3390kg |
Packing
Dedicated reinforced packaging system for ocean shipping, solid wood crate with independent moisture-proof layer, one-piece molded load-bearing base, resistant to bumps and impacts.
Our Advantages
Simplified Operation
One-touch lifting and dual control from the platform or operating panel allow easy adjustments, ideal for tasks requiring frequent height changes.
Stable & Precise
Hydraulic transmission ensures smooth, controlled lifting, making it safe and reliable for high-standard indoor or residential applications.
Power Versatility
Supports AC, DC, diesel, or gasoline engines, providing flexible and reliable power for a variety of site conditions.
Smart Maintenance
Fault code display on the control panel streamlines troubleshooting, reducing downtime and simplifying upkeep for continuous operation.
