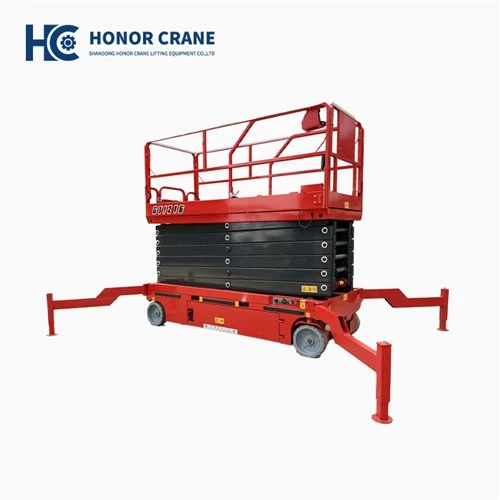

This self‑propelled electric scissor lift is designed for indoor and light‑outdoor aerial operations. Max working height reaches 9.8m, maximum platform height 7.8m.
Fitted with 0.9m extendable platform to expand working area. Main rated load up to 450kg, extended platform load 113kg, enough for operators plus working tools. Powered by 4*6V/200AH batteries, low‑noise and zero‑emission. Front‑wheel drive together with seamless solid tires ensures stable travel. It can drive while lifting, greatly improve working efficiency.
Compact overall dimension, fence can be folded for convenient transportation and storage. 25% gradeability meets slight slope working conditions. Multiple safety protection functions guarantee safe operation. Custom service is supported.
Application
This electric scissor aerial work platform is suitable for various aerial working occasions:
- Commercial building maintenance, shopping mall decoration and lamp installation
- Factory workshop equipment installation, pipeline maintenance and overhead construction
- Warehouse high‑level stock arrangement, logistics inventory handling
- Exhibition venue setup, hotel interior renovation and other indoor high‑altitude jobs

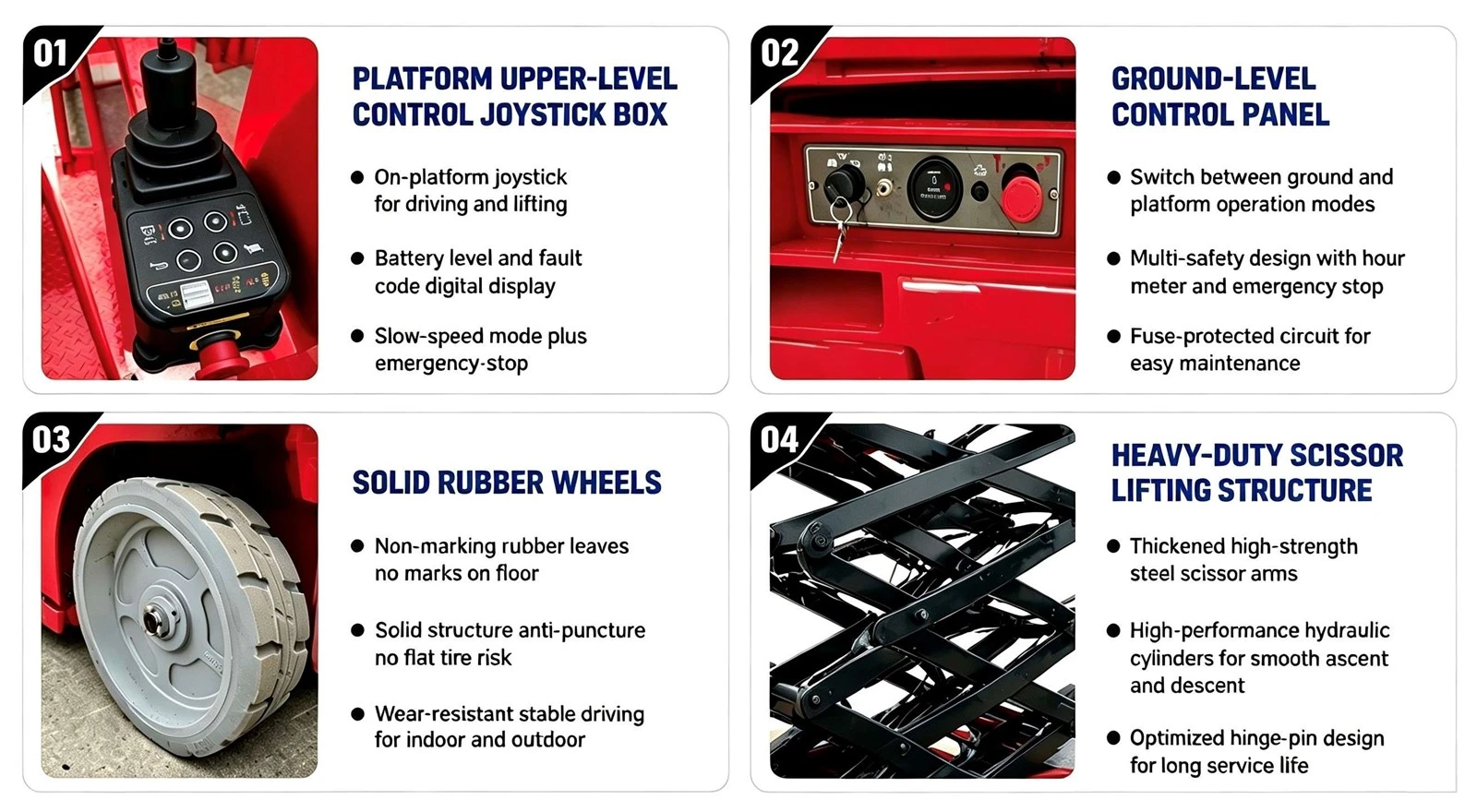

Key Features
Products Specifications
| Item | Specification |
|---|---|
| Maximum working height | 9.8 m |
| Maximum platform height | 7.8 m |
| Overall length | 2.39 m |
| Overall width | 1.16 m |
| Overall height (unfolded fence) | 2.34 m |
| Overall height (folded fence) | 1.82 m |
| Work platform dimensions(L×W) | 2.27*1.13 m |
| Platform extension size | 0.9 m |
| Wheelbase | 1.86 m |
| Ground clearance | 106mm/29mm |
| Rated load | 450 kg |
| Extended platform rated load | 113 kg |
| Machine travel speed(retracted state) | 3.5 km/h |
| Machine travel speed(lifting state) | 0.8 km/h |
| Rise/fall time | 4‑6 m/min |
| Gradeability | 25% |
| Maximum allowable angle for work (front and back) | 3° |
| Maximum allowable angle for work (lateral) | 1.5° |
| Drive | Front wheel drive |
| Tire | Seamless solid tire |
| Tire Size | φ381*127mm |
| Power source | 4*6V/200AH |
| Lifting motor | 24V/4.5KW |
| Charger | 24V /30A |
| Whole machine weight | 2250 kg |
