Products Description

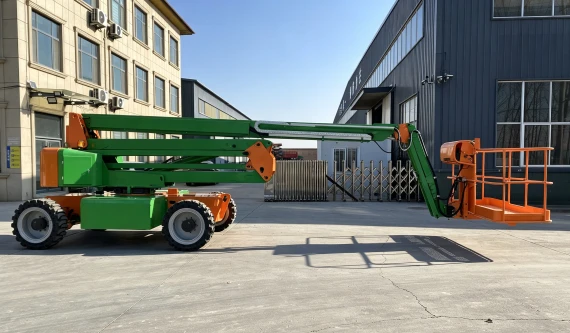

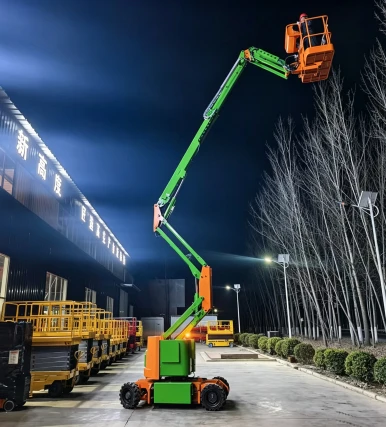

Self-propelled articulated boom lift is convenient to enter narrow doorways and flexible to operate; Lifting and walking are alldriven by AC motors, maintenance free and safer;Green and environmentally friendly, low noise,suitable for construction conditions with high requirements for noise and environmental protection,such as office buildings, shopping malls, residential properties, workshops, airport terminals, etc.
01
Intelligent welding
Integrated standard operating model, robotic welding workstation,automated operations, guaranteed welding quality, and durable structural components.
02
Intelligent coating
Having advanced intelligent coating production lines in the industry, thecoating quality achieves weather resistance and anti-corrosion.
03
Protection is safer
The entire series is equipped with tilt alarms, anti-crush protection, and emergency lowering systems;it features high ground clearance and electrical components with excellent water resistance.
04
Strong adaptability
The whole machine has a lightweight structure, easy transportation,flexible operation, and no pollution; Suitable for various working conditions and sites.
Products Highlights
Precise positioning
All functional actions are controlled by electric proportional control,making operation more flexible and positioning more accurate.
Strong obstacle crossing ability
The articulated boom assembly enables vertical operation flush against the wall and offers exceptional reach and height clearance, providing a larger working area.
Easy to work in narrow spaces
The overall structure layout is compact, with small tail swing and turning radius, making it easy to operate in narrow spaces
Superior performance
The electric articulated arm type is an AC walking drive system with strongerpower, higher waterproof rating, strong power, and superior performance.
Product Details
Various working height options
Proportional control for smooth movement
Safe load‑bearing working platform
Articulated boom for over‑obstacle work
Self‑propelled, drive from platform
Overload & tilt safety protection
Product Specifications
| Model | HC-12 | HC-14 | HC-16 | HC-18 | HC-20 | HC-22 |
|---|---|---|---|---|---|---|
| Specifications | ||||||
| Max. Working height | 12m | 13.9m | 16m | 18m | 20m | 22m |
| Max. Platform height | 10m | 11.9m | 14m | 16m | 18m | 20m |
| Max. span height | 5.4m | 5.4m | 7.86m | 7.86m | 7.86m | 8.54m |
| Max. Working radius | 7.9m | 7.9m | 8.45m | 10m | 10m | 12.9m |
| Platform width | 0.76m | 0.76m | 0.76m | 0.76m | 0.9m | 0.9m |
| Platform length | 1.4m | 1.4m | 1.83m | 1.83m | 2.4m | 2.4m |
| Platform height - stowed | 2.06m | 2.06m | 2.32m | 2.32m | 2.53m | 2.53m |
| Length - stowed | 6.28m | 6.28m | 6.85m | 7.68m | 8.9m | 8.9m |
| Width | 1.45m | 1.6m | 2.32m | 2.32m | 2.45m | 2.45m |
| Wheelbase | 1.87m | 1.87m | 2.36m | 2.36m | 2.5m | 2.5m |
| Ground clearance - center | 0.15m | 0.15m | 0.3m | 0.3m | 0.3m | 0.3m |
| Productivity | ||||||
| Max. Lift capacity | 227kg | 227kg | 256kg/350kg | 256kg/350kg | 256kg/350kg | 256kg |
| Number of platform occupants | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| Platform rotation | 160° | 160° | 160° | 160° | 160° | 160° |
| Turntable rotation | 355° | 355° | 355° | 355° | 355° | 355° |
| Drive speed - stowed | 0-5km/h | 0-5km/h | 0-5.2km/h | 0-5.2km/h | 0-6km/h | 0-6km/h |
| Gradeability - stowed | 35% | 35% | 30% | 30% | 45% | 45% |
| Max. Working angle (Tilt sensor activation) | 3° | 3° | 3° | 5° | 5° | 5° |
| Turning radius (outside) | 3.3m | 3.3m | 4.7m | 4.7m | 5.4m | 5.4m |
| Drive and steer | 4*2 | 4*2 | 4*2 | 4*2 | 4*4 | 4*4 |
| Weight | ||||||
| Weight | 6100kg | 6500kg | 7250kg | 7900kg | 8550kg | 8900kg |
| Power (Diesel engine selection) | ||||||
| Battery | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/320Ah | 48V/320Ah |
| Control voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Pump motor | 5.5kw | 5.5kw | 7kw | 7kw | 7kw | 7kw |
| Drive motor | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw |

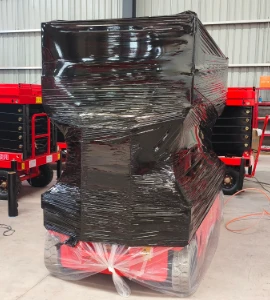

Products Pickage
