Products Description

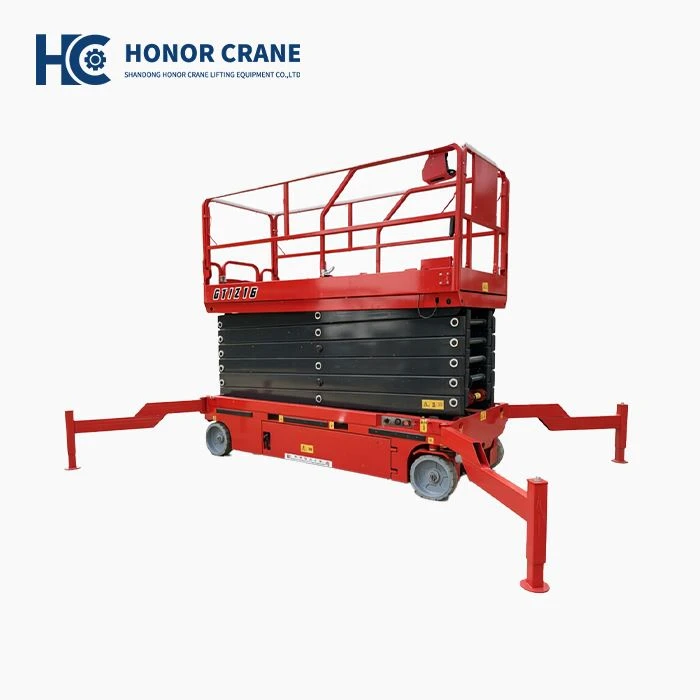

4M Self-propelled scissor Lift Platform is powered by a battery, with no noise orpollution, meeting the needs of indoor and outdooroperations. The overall size is small, easy to move, andcan be freely accessed to meet various narrow spaceoperations.
Products Highlights
Fully proportional control, strong operational comfort
Domestic top tier brand control system with superior performance, reducingproportional valve, achieving highly accurate platform positioning.
Maintenance free design, low maintenance cost
The structural components such as fork frame, steering and pit protection structure areconnected using composite material bearings, which have high load-bearing capacity,strong wear resistance and long service life.
High performance lead-acid batteries
Equipped with first-line brand battery cells, using automotive grade wiring harnesses and connectors for more stable performance and longer service life.
Multiple security protections
Equipped with various safety protection devices such as overload protection,emergency descent, and tilt protection, ensuring safe walking at all heights.
Strong human-computer interaction
Intelligent loT hardware system, easily realizing comprehensive monitoringsuch as device fault reading, software parameter flashing, systemmonitoring and fault diagnosis.
Adapts to various operating conditions
Capable of operating in confined spaces and efficiently handling tasks across various conditions.
Product Specifications
| Model | HC0406 | HC0608 |
|---|---|---|
| Size | ||
| Maximum working height | 5.8m | 7.8m |
| Maximum platform height | 3.8m | 5.8m |
| Overall length | 1.44m | 1.82m |
| Overall width | 0.70m | 0.78m |
| Overall height (unfolded fence) | 1.86m | 2.02m |
| Overall height (folded fence) | 1.46m | 1.62m |
| Work platform dimension (length x width) | 1.3*0.68m | 1.68*0.78m |
| Platform extension size | 0.55m | 0.9m |
| Wheelbase | 1.02m | 1.35m |
| Ground clearance | 106mm/29mm | 106mm/29mm |
| Performance | ||
| RATED LOAD | 230kg | 230kg |
| Extended platform rated load | 113kg | 113kg |
| Machine travel speed (retracted state) | 3.5km/h | 3.5km/h |
| Machine travel speed (lifting state) | 0.8km/h | 0.8km/h |
| Rise/fall time | 3-5m/min | 3-5m/min |
| Gradeability | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° |
| Drive | ||
| Front-wheel drive | Front-wheel drive | Front-wheel drive |
| Tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ305*100mm |
| Power | ||
| Power source | 2*12V/85AH | 4*6V/200AH |
| Lifting motor | 1.2KW | 1.2KW |
| Drive motor | 2*0.5KW | 2*0.5KW |
| Charger | 24V/30A | 24V/30A |
| Weight | ||
| Whole machine weight | 860kg | 1200kg |
Products Production and Packaging
Auxiliary production line
Manual welding
Renowned brand batteries
In stock, ready to ship immediately.
Carefully packed to prevent bumps or damage.
Supports wooden crate packaging.
