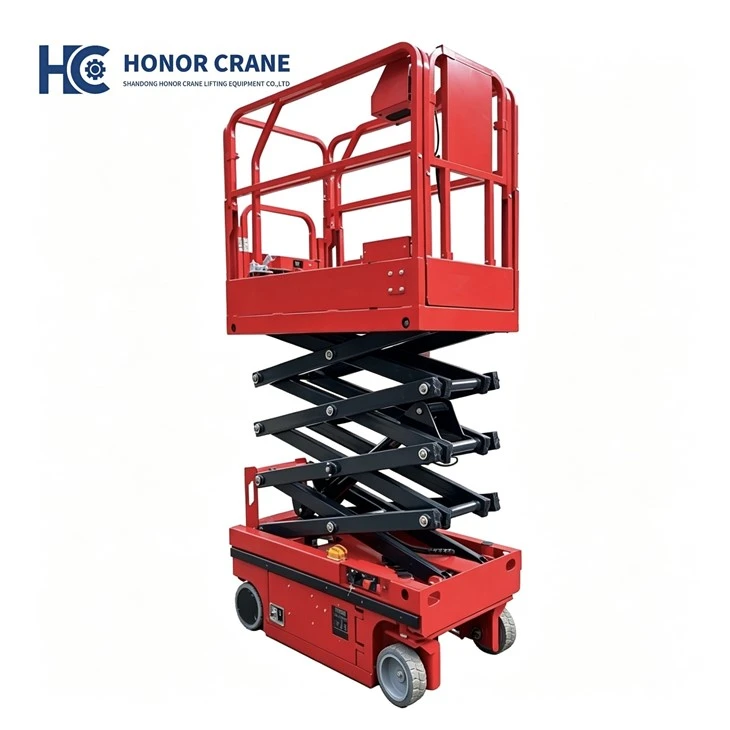

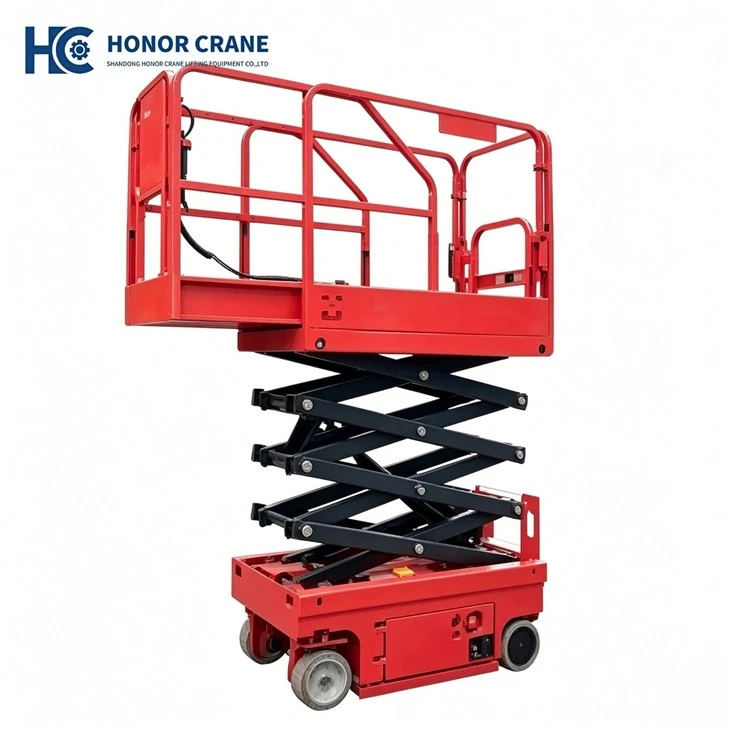

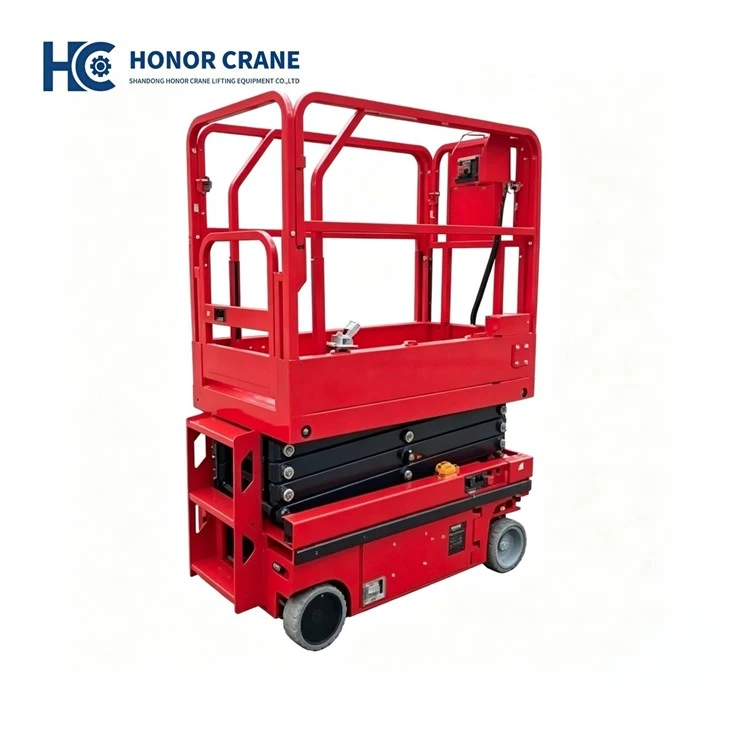

Our self‑propelled electric scissor lift is a high‑performance aerial work solution with 13.8m maximum working height. Powered by large‑capacity battery pack, it delivers low‑noise, emission‑free operation. The extendable platform expands working space, while self‑propelled travel function allows operators to move the machine when elevated, greatly boosting on‑site productivity. Solid seamless tires adapt to various ground conditions, stable hydraulic lifting system ensures safe and smooth operation for various high‑altitude jobs.

Application

This self‑propelled electric scissor lift serves diversified aerial working requirements.

Ideal for building construction, facade maintenance, painting and installation projects.
Widely applied in large warehouses, shopping malls, exhibition halls for equipment maintenance and lamp replacement.
Perfect for factories and workshops for high‑altitude equipment assembly and routine inspection tasks.

Key Features

product-2655-1460

Products Specifications

Item	Specification
Max working height	13.8 m
Max platform height	11.8 m
Overall length	2.39 m
Overall width	1.16 m
Overall height (unfolded fence)	2.60 m
Overall height (folded fence)	2.06 m
Platform dimensions	2.27*1.13 m
Platform extension size	0.9 m
Wheelbase	1.86 m
Ground clearance	106mm/29mm
Rated load	320 kg
Extended platform rated load	113 kg
Travel speed (retracted state)	3.5 km/h
Travel speed (lifting state)	0.8 km/h
Rise/fall time	4‑6 m/min
Max gradeability	25%
Max allowable work angle (front and back)	3°
Max allowable work angle (lateral)	1.5°
Drive	Front wheel drive
Tire	Seamless solid tire φ381*127mm
Power source	4*6V/200AH
Lifting motor	24V/4.5KW
Charger	24V/30A
Whole machine weight	2950 kg
