Featuring compact narrow‑body structure and extendable working platform, this electric scissor lift delivers 230kg main load capacity and 113kg extension load for flexible material handling. It adopts seamless solid tires and front‑wheel drive with 25% gradeability to ensure stable travel under both retracted and lifting conditions. The full‑electric 24V system runs with low noise and zero emission for indoor applications, equipped with complete safety protections such as tilt protection, emergency stop, emergency descent and fault indication.

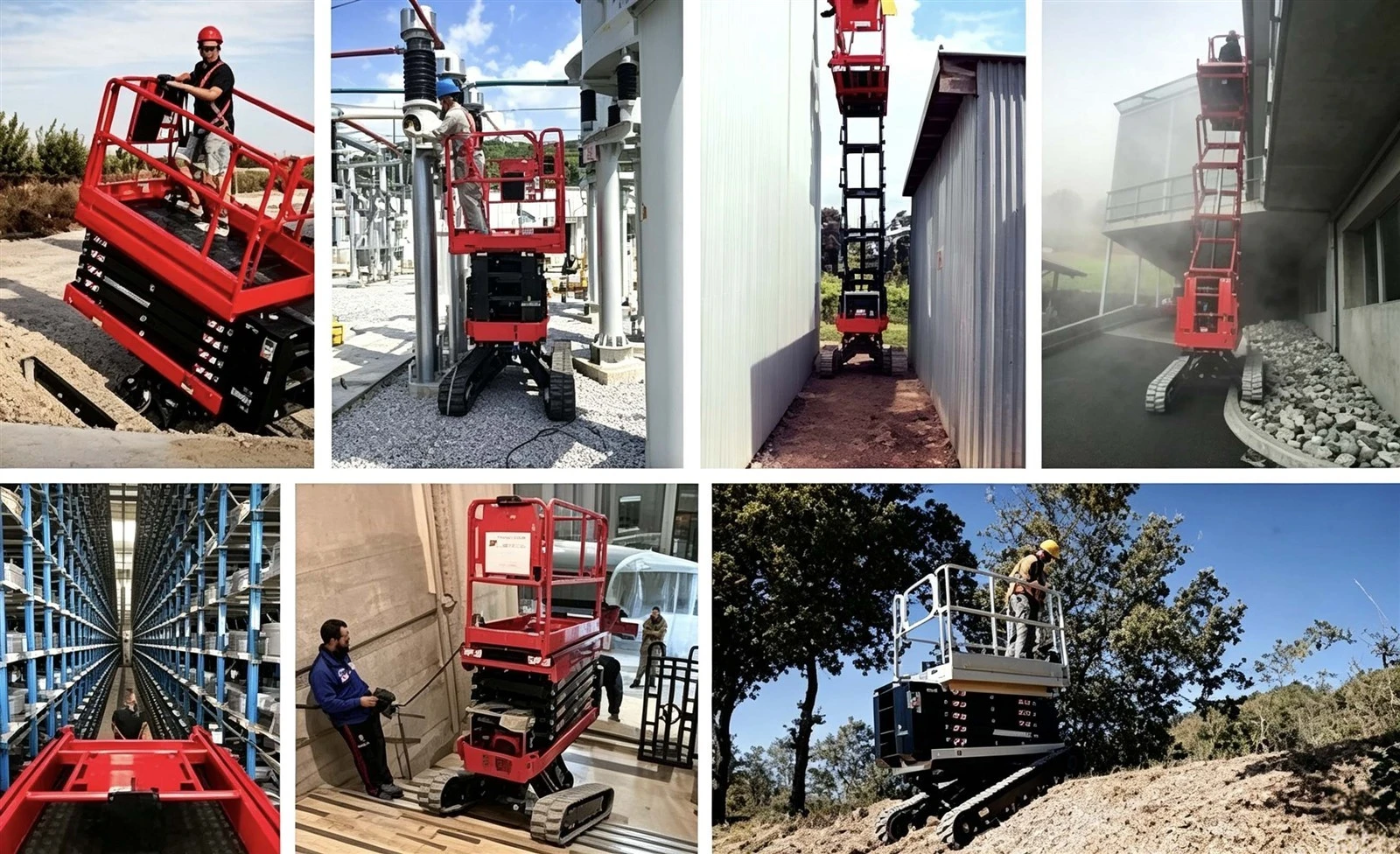

Application
- Commercial building projects: Perfect for daily maintenance, ceiling repair, interior renovation and sign installation in malls, hotels and office buildings. Narrow chassis and non‑marking tires support doorway access, elevator transport and multi‑floor work without floor scratches.
- Warehouse & exhibition tasks: Suitable for high‑altitude lighting fitting and rack inspection in logistics warehouses, as well as booth construction, decoration and dismantling at exhibition venues.
- Industrial workshop work: Capable of equipment assembly, periodic overhaul and routine facility inspection inside manufacturing plants.
- Public facility maintenance: Meets aerial work demands for interior refurbishment and upkeep in hospitals, schools and airport terminals.

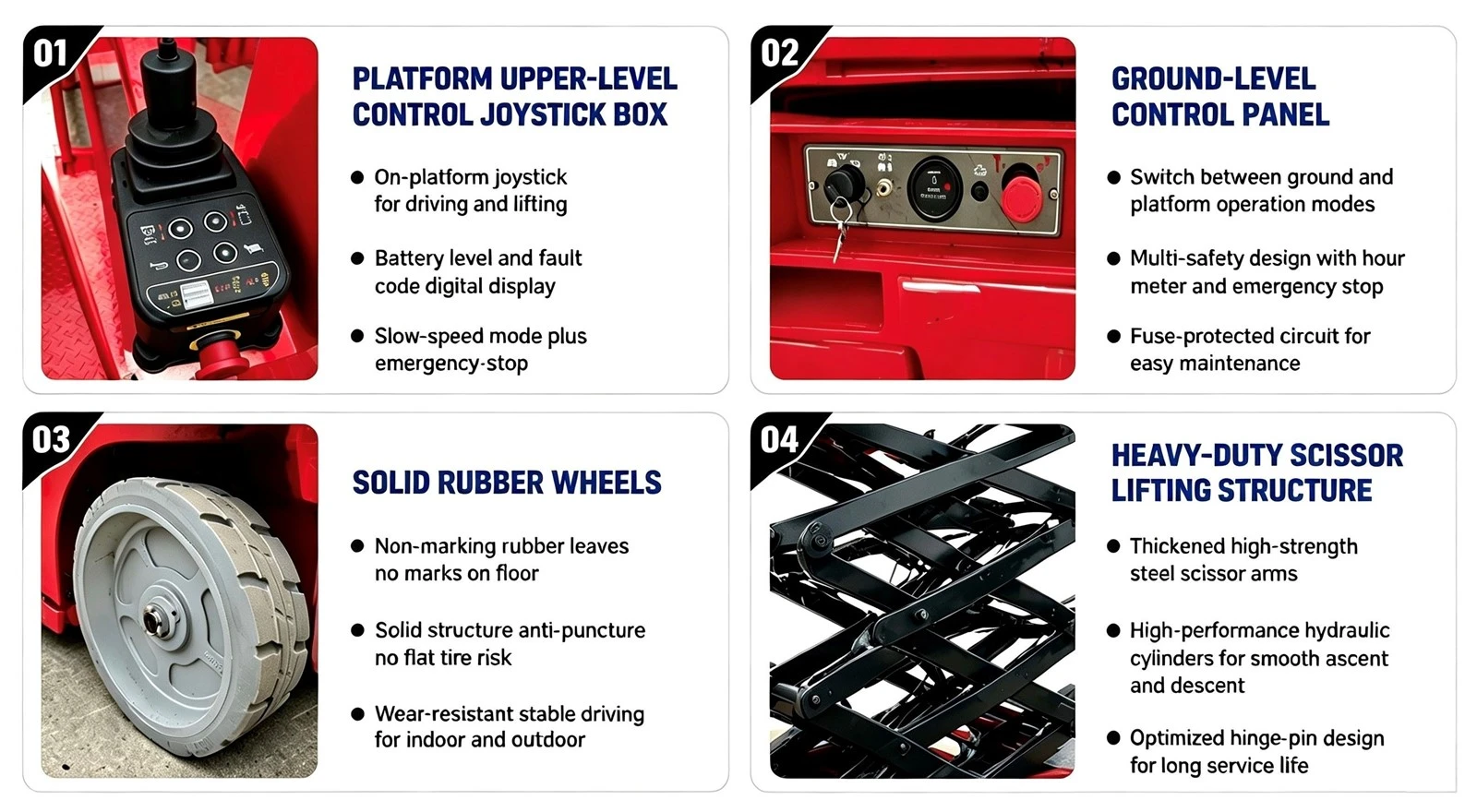

Key Features
Products Specifications
| Item | Specification |
|---|---|
| Model | HC0406 |
| Maximum working height | 5.8 m |
| Maximum platform height | 3.8 m |
| Overall length | 1.44 m |
| Overall width | 0.70 m |
| Overall height (unfolded fence) | 1.86 m |
| Overall height (folded fence) | 1.46 m |
| Work platform dimensions (length × width) | 1.3*0.68 m |
| Platform extension size | 0.55 m |
| Wheelbase | 1.02 m |
| Ground clearance | 106mm/29mm |
| RATED LOAD | 230 kg |
| Extended platform rated load | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h |
| Rise/fall time | 3‑5m/min |
| Gradeability | 25% |
| Maximum allowable angle for work (front and back) | 3° |
| Maximum allowable angle for work (lateral) | 1.5° |
| Drive | Front‑wheel drive |
| Tire | Seamless solid tire |
| Tire Size | φ230*80mm |
| Power source | 2*12V/85AH |
| Lifting motor | 1.2KW |
| Drive motor | 2*0.5KW |
| Charger | 24V /30A |
| Whole machine weight | 860 kg |
