Products Description

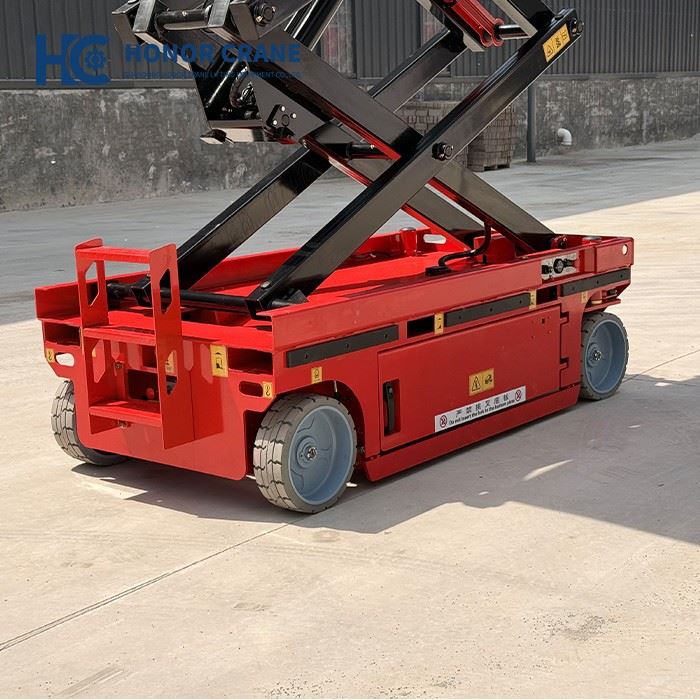

Mobile Scissor Lift
Self-propelled mobile scissor lift platform is an electric aerial work vehicle that can be used both indoors and outdoors. It operates by hydraulic scissor lift. People can directly operate, turn and raise/lower the platform while standing on it, without having to lower the platform every time they move to a new location.
Compared with the ordinary push-pull type, it can move by itself, without the need for manual pushing. Changing workstations is particularly convenient for it, saving both time and effort. It is suitable for use in warehouses, factories, construction sites, equipment installation, and building maintenance.
Main Feature
-
Self-propelled is more convenient: Once the platform reaches a safe height, it can be driven directly without repeatedly lowering and moving. This way, work can be done faster and more smoothly, with less hassle.
-
Smooth lifting and strong load-bearing capacity: The thickened steel scissor arms ensure smooth vertical lifting without shaking. It has a large load capacity and is stable to use.
-
Electric operation is more practical: Powered by batteries, it has low noise, no exhaust gas, and is easy to maintain. It is particularly suitable for indoor use.
-
Easy to operate: The platform is equipped with a joystick, allowing direct control of forward movement, turning, and lifting. A single person can operate it.
-
Security Configuration
- One-button emergency stop button
- Emergency automatic descent
- Automatic protection for road potholes
- Inclination sensing alarm
- Overweight protection shutdown
- With safety door and protective fence
- Anti-slip floor plate for platform
- Automatic parking brake
Standard Configuration
| MPGTJZ0406/MPGTJZ0608 | |||
| Proportional control | Automatic brake system | Charging protection system | Full range driving |
| Emergency descent system | Folding fence | Seamless tire | Platform self-locking door |
| Emergency stop button | Standard transport forklift holes | Unidirectional extension platform | Horn |
| Fault diagnosis | Automatic pit protection system | Strobe light | Action buzzing |
| Tilt protection system | |||
| MPGTJZ0608/MPGTJZ0810/MPGTJZ1012/MPGTJZ1214/MPGTJZ1416 | |||
| Proportional control | Automatic brake system | Charging protection system | Full range driving |
| Emergency descent system | Folding fence | Seamless tire | Platform self-locking door |
| Emergency stop button | Standard transport forklift holes | Unidirectional extension platform | Horn |
| Fault diagnosis | Automatic pit protection system | Strobe light | Action buzzing |
| Tilt protection system | Safety maintenance support rod | ||
Mobile scissor Lift Platform
Product Parameters
| Model | MPGTJZ0406 | MPGTJZ0608 | MPGTJZ0608 | MPGTJZ0810 | MPGTJZ1012 | MPGTJZ1214 | MPGTJZ1416 |
| Maximum working height | 5.8 m | 7.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m | 15.8 m |
| Maximum platform height | 3.8 m | 5.8 m | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m |
| Overall length | 1.44 m | 1.82 m | 2.39 m | 2.39 m | 2.39 m | 2.39 m | 2.79 m |
| Overall width | 0.70 m | 0.78 m | 1.16 m | 1.16 m | 1.16 m | 1.16 m | 1.25 m |
| Overall height (unfolded fence) | 1.86 m | 2.02 m | 2.21 m | 2.34 m | 2.47 m | 2.60 m | 2.60 m |
| Overall height (folded fence) | 1.46 m | 1.62 m | 1.7 m | 1.82 m | 1.94 m | 2.06 m | 2.1 m |
| Work platform dimensions (length x width) | 1.3*0.68 m | 1.68*0.78 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.63*1.13 m |
| Platform extension size | 0.55 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Wheelbase | 1.02 m | 1.35 m | 1.86 m | 1.86 m | 1.86 m | 1.86 m | 2.23 m |
| Ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Performance | |||||||
| RATED LOAD | 230 kg | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rise/fall time | 3-5m/min | 3-5m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Front-wheel drive | Front-wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| Tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ305*100mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power | |||||||
| Power source | 2*12V/85AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 1.2KW | 1.2KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Drive motor | 2*0.5KW | 2*0.5KW | - | - | - | - | - |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | |||||||
| Whole machine weight | 860 kg | 1200 kg | 2100 kg | 2250 kg | 2550 kg | 2950 kg | 3450 kg |
why choose us
why choose our Self-Propelled Scissor Lift
- Hydraulic lifting, stable and smooth operation
- Comes with built-in mobility, facilitating repositioning
- Compact design, suitable for narrow spaces
- Easy maintenance, energy-efficient and durable
- Multiple operating heights available for selection
- Complete safety configuration, ensuring peace of mind when using
- Supports OEM/ODM customization
- Quick delivery
- Professional export production, with extensive experience
FAQ
01.What is a self-propelled scissor lift?
02.Self-propelled vs manual scissor lift: what's the difference?
03.What working heights are available?
04.Can it be used indoors and outdoors?
05.What safety features are included?
