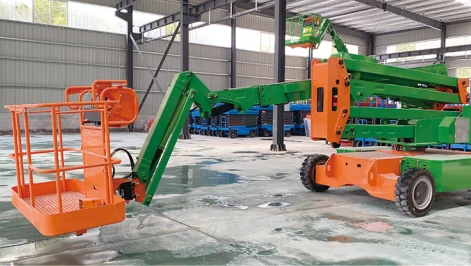

Self-propelled articulated boom lift

This product is convenient to enter narrow doorways and flexible to operate; Lifting and walking are alldriven by AC motors, maintenance free and safer;Green and environmentally friendly, low noise,suitable for construction conditions with high requirements for noise and environmental protection,such as office buildings, shopping malls, residential properties, workshops, airport terminals, etc.

Intelligent welding

Integrated standard operating model, robotic welding workstation,automated operations, guaranteed welding quality, and durable structural components.

Intelligent coating

Having advanced intelligent coating production lines in the industry, thecoating quality achieves weather resistance and anti-corrosion.

Protection is safer

The entire series is equipped with tilt alarms, anti-crush protection, and emergency lowering systems;it features high ground clearance and electrical components with excellent water resistance.

Strong adaptability

The whole machine has a lightweight structure, easy transportation,flexible operation, and no pollution; Suitable for various working conditions and sites.

Precise positioning

All functional actions are controlled by electric proportional control,making operation more flexible and positioning more accurate.

Strong obstacle crossing ability

The articulated boom assembly enables vertical operation flush against the wall and offers exceptional reach and height clearance, providing a larger working area.

Easy to work in narrow spaces

The overall structure layout is compact, with small tail swing and turning radius, making it easy to operate in narrow spaces

Superior performance

The electric articulated arm type is an AC walking drive system with strongerpower, higher waterproof rating, strong power, and superior performance.

Model	HC-12	HC-14	HC-16	HC-18	HC-20	HC-22
Specifications
Max. Working height	12m	13.9m	16m	18m	20m	22m
Max. Platform height	10m	11.9m	14m	16m	18m	20m
Max. span height	5.4m	5.4m	7.86m	7.86m	7.86m	8.54m
Max. Working radius	7.9m	7.9m	8.45m	10m	10m	12.9m
Platform width	0.76m	0.76m	0.76m	0.76m	0.9m	0.9m
Platform length	1.4m	1.4m	1.83m	1.83m	2.4m	2.4m
Platform height - stowed	2.06m	2.06m	2.32m	2.32m	2.53m	2.53m
Length - stowed	6.28m	6.28m	6.85m	7.68m	8.9m	8.9m
Width	1.45m	1.6m	2.32m	2.32m	2.45m	2.45m
Wheelbase	1.87m	1.87m	2.36m	2.36m	2.5m	2.5m
Ground clearance - center	0.15m	0.15m	0.3m	0.3m	0.3m	0.3m
Productivity
Max. Lift capacity	227kg	227kg	256kg/350kg	256kg/350kg	256kg/350kg	256kg
Number of platform occupants	2-3	2-3	2-3	2-3	2-3	2-3
Platform rotation	160°	160°	160°	160°	160°	160°
Turntable rotation	355°	355°	355°	355°	355°	355°
Drive speed - stowed	0-5km/h	0-5km/h	0-5.2km/h	0-5.2km/h	0-6km/h	0-6km/h
Gradeability - stowed	35%	35%	30%	30%	45%	45%
Max. Working angle (Tilt sensor activation)	3°	3°	3°	5°	5°	5°
Turning radius (outside)	3.3m	3.3m	4.7m	4.7m	5.4m	5.4m
Drive and steer	4*2	4*2	4*2	4*2	4*4	4*4
Weight
Weight	6100kg	6500kg	7250kg	7900kg	8550kg	8900kg
Power (Diesel engine selection)
Battery	48V/300Ah	48V/300Ah	48V/300Ah	48V/300Ah	48V/320Ah	48V/320Ah
Control voltage	12VDC	12VDC	12VDC	12VDC	12VDC	12VDC
Pump motor	5.5kw	5.5kw	7kw	7kw	7kw	7kw
Drive motor	2*3.3kw	2*3.3kw	2*3.3kw	2*3.3kw	2*3.3kw	2*3.3kw
