scissor lifts offer working heights ranging 5–18 m and platform loads from 227 kg up to 1000 kg.
We have over 10 product lines available, with three power options: battery, AC and diesel.
Our HC scissor lifts run on batteries. They produce zero emissions and run quietly. Equipped with four-wheel drive, they handle rough ground well and deliver strong traction and gradeability. The HC range uses a tank-style rubber track chassis. It stays stable on soft ground without sinking, solving the common limitation of standard scissor lifts that can only operate on hard, flat surfaces.
The HCmini model is built for tight, confined spaces. Its compact design makes it highly maneuverable. Overall, our scissor lifts work great for indoor and outdoor installation and construction jobs.
Rough Terrain Scissor Lift has a maximum working height of 10 meters. It is equipped with a diesel engine, a 4-meter-long extension platform.It can carry 2 to 4 workers according to different product standards, with a maximum load of 567 kg.
| Max Working Height | 10 m |
| Lifting Capacity | 567 kg |
| Overall Width | 1.76 m |
| Overall Length - without support legs | 2.67 m |

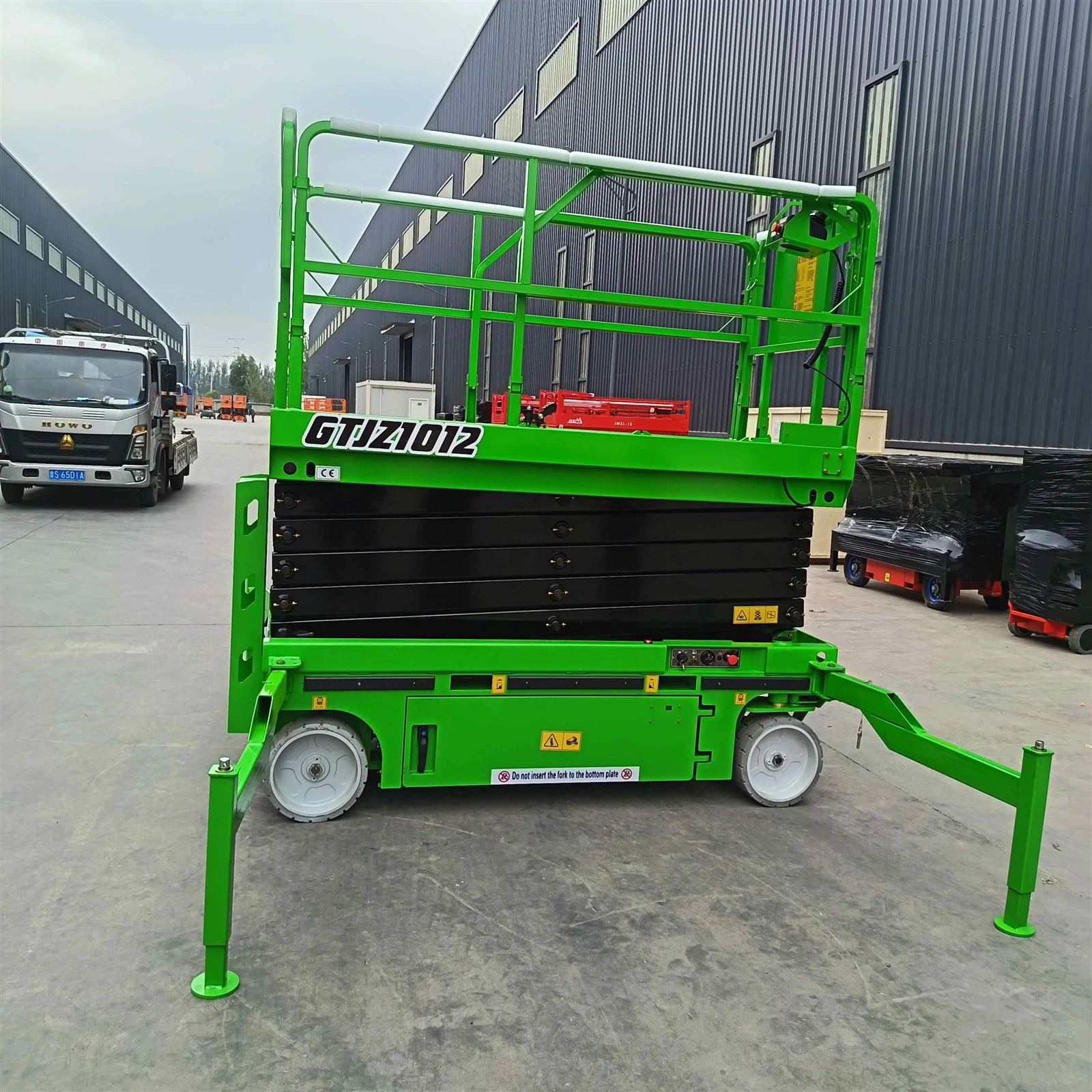

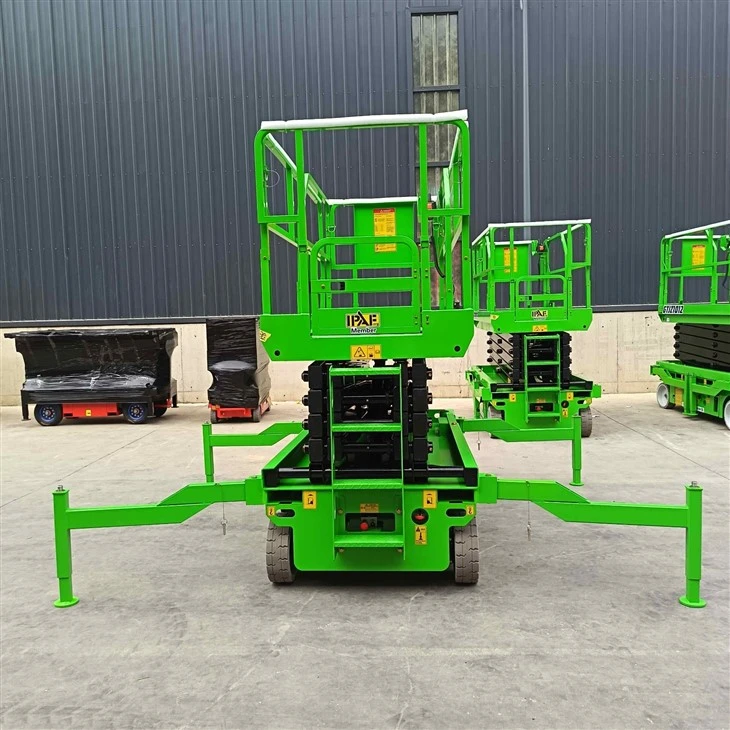

| Overall Length - with support legs | 3.18 m |
Professional team
29,000+ experts worldwide
Senior project managers effectively control all aspects of the project
7x24 hours delivery
Located in 27 cities around the world,with 50 delivery centers,providing 200+ languages,7x24 hours delivery capacity,is the best partner for enterprise globalization
Compact Scissor Lift
If you're after a compact scissor lift that doesn't skimp on performance, our mini model is the pick. We have two versions available. They're small and easy to maneuver in tight spots, fit through standard doorways and ride inside regular elevators. Even so, they reach a working height of 19 feet, and the platform has plenty of room for two operators.
Flatbed Scissor Lift vs. Off-road Scissor Lift
Both types come with roomy work platforms, but they suit different job sites. The flatbed scissor lift works best indoors or outdoors on firm, level ground. Go with an off-road model for soft or uneven terrain. It delivers solid traction, good travel speed and strong climbing power to keep your jobs moving efficiently.
| Model | HCGTJZ0406 | HCGTJZ0608 | HCGTJZ0608 | HCGTJZ0810 | HCGTJZ1012 | HCGTJZ1214 | HCGTJZ1416 |
| Size | |||||||
| Maximum working height | 5.8 m | 7.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m | 15.8 m |
| Maximum platform height | 3.8 m | 5.8 m | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m |
| Overall length | 1.44 m | 1.82 m | 2.39 m | 2.39 m | 2.39 m | 2.39 m | 2.79 m |
| Overall width | 0.70 m | 0.78 m | 1.16 m | 1.16 m | 1.16 m | 1.16 m | 1.25 m |
| Overall height (unfolded fence) | 1.86 m | 2.02 m | 2.21 m | 2.34 m | 2.47 m | 2.60 m | 2.60 m |
| Overall height (folded fence) | 1.46 m | 1.62 m | 1.7 m | 1.82 m | 1.94 m | 2.06 m | 2.1 m |
| Work platform dimensions (length x width) | 1.3*0.68 m | 1.68*0.78 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.63*1.13 m |
| Platform extension size | 0.55 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Wheelbase | 1.02 m | 1.35 m | 1.86 m | 1.86 m | 1.86 m | 1.86 m | 2.23 m |
| Ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Performance | |||||||
| RATED LOAD | 230 kg | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rise/fall time | 3-5m/min | 3-5m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Front-wheel drive | Front-wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| Tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ305*100mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power | |||||||
| Power source | 2*12V/85AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 1.2KW | 1.2KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Drive motor | 2*0.5KW | 2*0.5KW | - | - | - | - | - |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | |||||||
| Whole machine weight | 860 kg | 1200 kg | 2100 kg | 2250 kg | 2550 kg | 2950 kg | 3450 kg |
