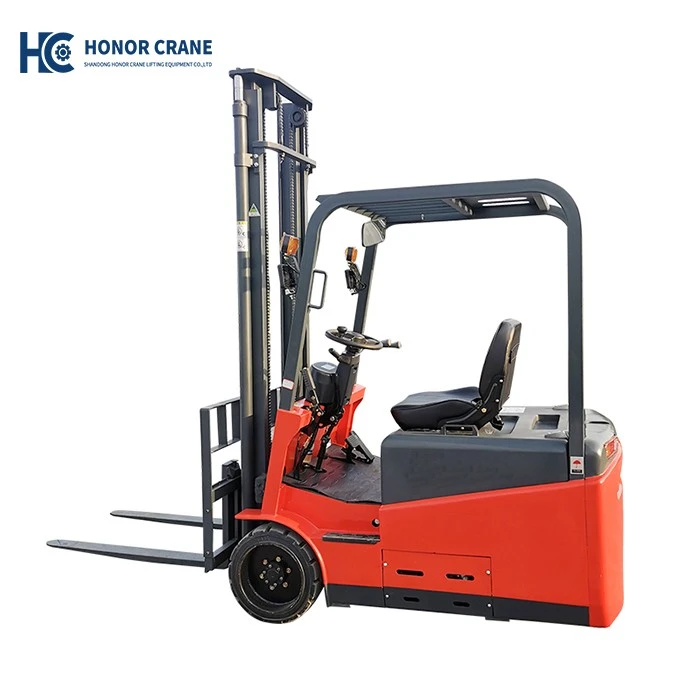

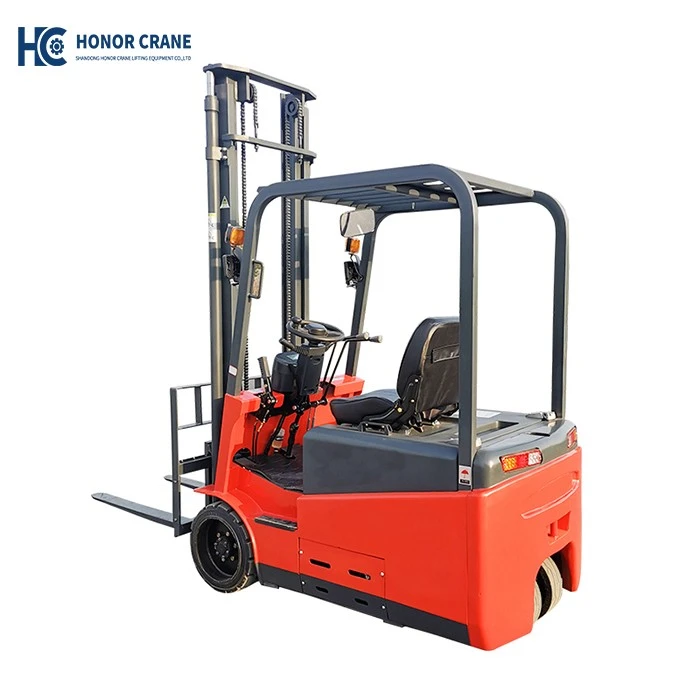

Electric Counterbalance Forklift is a logistics handling and lifting equipment that uses batteries as its power source and adopts an integrated rear-wheel drive and steering design. Its three support points (two support points for the front wheels and one support point for the rear wheels) form a stable triangular structure, which combines flexibility and stability.
It is widely used in many fields like the following
1. Electric counterbalanced forklifts can penetrate 1.5-1.8m wide channels in automobile manufacturing workshops to complete precise transfer of engine assemblies (1-3 tons), increasing single-time efficiency by 30%. The 360° on-site turning function enables seamless connection between welding and assembly lines.
2.Precision parts handling: Equipped with 180° rotating forks and a positioning system with very low error, it can realize two-way storage and retrieval of pallets in the gearbox assembly line, and complete 60 sets of parts sorting per hour.
3.Intelligent warehouse docking:Through the on-board data-reading device, intelligent stacking with space utilization can be realized in the stereoscopic warehouse
Operate Video:
Feature
Three-wheel layout design: It adopts a three-point support structure with two front wheels driving and one rear wheel steering. Compared with traditional four-point forklifts, it reduces the mechanical structure redundancy by 1/4, and minimizes the turning radius.
Turntable steering axle: It is equipped with a high-precision worm gear transmission system, with a steering angle error of almost 0, supports 360° in-situ steering, and can complete a U-turn in a 2-meter wide channel.
Intelligent distribution of center of gravity: It monitors the load distribution in real time through sensors, automatically adjusts the front and rear wheel speed difference when turning, and controls the lateral offset within 5cm to ensure the stability of operations in narrow channels.
Various Functions
Product Specifications
|
Product Name |
Electric Counterbalance Forklift |
|
Load Capacity (kg) |
1000kg |
|
Max Lifting Height |
3000mm |
|
Fork Size |
1070×100×35mm |
|
Fork Size |
1400 mm |
|
Min height |
2000mm |
|
Battery(V/AH) |
48V /150AH |
Packing & Electric Counterbalance Forklift
Package Type: We use wooden boxes for packaging because wooden boxes have good corrosion resistance and impact resistance. The frame is welded with 5mm thick steel plate and angle steel, and a "well"-shaped channel steel base is set at the bottom to meet the strength requirements of forklift loading and unloading and container stacking. The gap between the equipment in the box and the frame is filled with EPE foam material (thickness ≥ 5cm) to prevent displacement caused by transportation vibration.
Our Advantages of 3 Wheel Electric Forklift:
Efficient operation: Super long endurance. It supports 3-minute battery replacement or 2-hour fast charging, ensuring 24-hour continuous operation. The battery pack integrates a liquid cooling system to ensure that the charging and discharging efficiency is greater than 95% in an environment of -20℃~55℃.The cycle life is ≥4000 times, and the capacity attenuation rate is less than 10%.The DC fast charging pile supports full charge recovery in 2 hours (charging power ≥30kW).The battery replacement system is equipped with RFID intelligent identification to ensure seamless connection between the battery pack and the vehicle control system.
