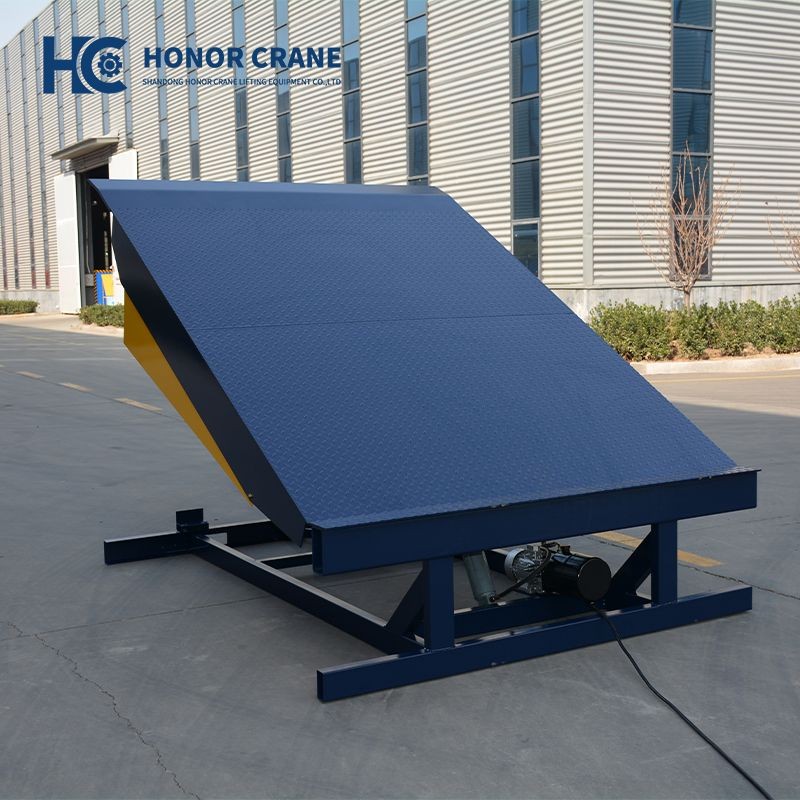

Our loading dock leveller provides a safe, efficient, and reliable connection between the warehouse floor and trucks or containers. It features one-touch automatic lifting, precisely adapting to vehicles of varying heights without manual adjustment. The robust platform, with its anti-slip surface, reinforced structural components, and corrosion-resistant coating, can withstand continuous heavy loads.
Application
The loading dock leveller is designed for seamless material handling in warehouses, distribution centers, ports, and manufacturing plants. It provides a safe and efficient interface between trucks or containers and facility floors, supporting heavy-duty operations, accelerating loading and unloading workflows, and enhancing overall operational productivity.
Operate Video:
Feature
1.Anti-slip and Durable Platform
This platform uses textured steel plates to increase friction and prevent goods or personnel from slipping during tilting or lifting. The robust and wear-resistant steel can withstand high-frequency heavy-duty operations, extending the equipment's lifespan.
2.Stable Tilting Structure
The platform uses a blued steel frame and a precision tilting drive device to achieve smooth tilting and reliable return. This design allows for angle adjustments during loading and unloading while maintaining platform stability, preventing cargo shifting or tipping.
3.High-Efficiency Power System
This system is equipped with a high-performance motor that provides strong and stable power for rapid lifting and precise tilting. The motor operates with low noise and low energy consumption, improving operational efficiency and cost-effectiveness.
4.Strong Load-Bearing Frame
The reinforced steel base frame evenly distributes the load, preventing localized deformation. It can withstand heavy cargo handling while ensuring long-term stability and durability.
Product Specifications
|
Fixed Dock Leveler |
Specification |
|
Rated Capacity |
10 tons |
|
Platform Size (Length) |
2m |
|
Platform Size (Width) |
2.5m |
|
Lip Plate Width |
0.4m |
|
Upward Travel |
0.3m |
|
Downward Travel |
0.2m |
|
Installation Pit Size |
2.08×2.54×0.6m |
|
Motor Power |
0.75kw |
Our Advantages of Loading Dock Leveller:
The loading dock leveller utilizes a precisely designed foundation to ensure long-term stability and robust load-bearing capacity. Construction strictly adhered to professional drawings, with precise positioning holes, pre-embedded cable trays, and cable conduits aligned along the foundation pit's axis. Angle steel components were secured with internal anchor bolts, creating a structural interlock between the triangular support area and the steel edges, thereby enhancing structural stability. The foundation employed a layered compaction method: a bottom layer of graded gravel, a top layer of concrete, and side walls rigidly connected to the building via bidirectional steel wire mesh. Continuous monitoring of component gaps throughout construction ensured structural integrity, enabling the platform to operate stably without deformation under heavy loads.
