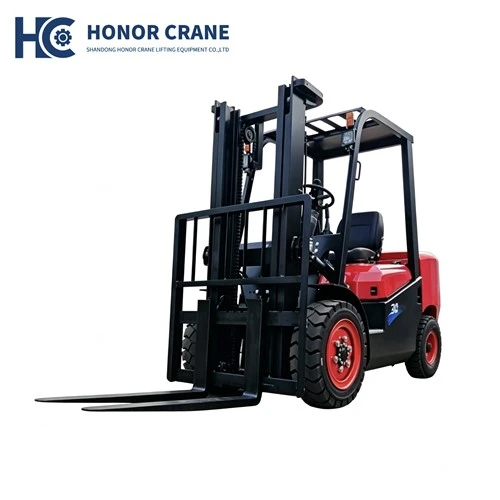

Our 2 ton diesel counterbalance forklift is built for heavy-duty material handling in warehouses, yards and construction sites. Powered by XINCHAI diesel engine, it delivers steady power and strong climbing ability for outdoor heavy-load transport.
Key Features
Reinforced Fork
Built with thick high‑strength steel forks and heavy‑duty carriage. Resists deformation under heavy loads to guarantee secure pallet handling.
Robust Welded Mast System
Heavy‑duty multi‑stage welded mast ensures smooth lifting and tilting. Stable performance for high‑level stacking and material storage tasks.
Heavy‑Duty Deep‑Tread Tires
Deep‑groove tires deliver excellent traction. Perfect for yards, construction sites and all kinds of uneven outdoor working surfaces.
Powerful Diesel Engine
Equipped with proven XINCHAI C490BPG diesel engine, it outputs stable and sufficient power for heavy‑load outdoor tasks.
Products Specifications
| Item | Specification |
|---|---|
| Rated Capacity | 2000 kg |
| Load Center | 500 mm |
| Power Type | Diesel |
| Max Lifting Speed (No-Load / Full-Load) | 400 mm/s |
| Max Driving Speed (Full-Load / No-Load) | 17 / 19 km/h |
| Max Towing Capacity (Full-Load / No-Load) | 14 / 9 kN |
| Gradeability (Full-Load / No-Load) | 15% / 20% |
| Lifting Height (H1) | 3000 mm |
| Free Lift Height | 60 mm |
| Mast Tilting Angle (Forward-Backward) | 6° /12° |
| Min. Turning Radius | 2450 mm |
| Min. Right Angle Aisle Width | 2050 mm |
| Min. Ground Clearance | 110 mm |
| Overall Length (Including Fork) | 3820 mm |
| Overall Length (Without Fork) | 2640 mm |
| Overall Width | 1160 mm |
| Overall Height (Mast Lowered) | 2095 mm |
| Overall Height (Mast Extended) | 4080 mm |
| Front Overhang | 451 mm |
| Wheelbase | 1640 mm |
| Front Tread | 970 mm |
| Rear Tread | 970 mm |
| Fork Width | 100 mm |
| Fork Thickness | 40 mm |
| Backrest Height | 1000 mm |
| Standard Fork Length | 1070 mm |
| Engine Model | XINCHAI C490BPG |
| Rated Power | 40 Kw |
| Rotate Speed at Rate Power | 2650 rpm |
| Max. Torque | 162 Nm |
| Rotation Speed at Max. Torque | 1800~1900 rpm |
| Type of Power Shift | Mechanical / Hydraulic |
| Curb Weight | 3050 kg |
Optional Configurations
Custom Optional Parts & Engines
A wide range of optional configurations and attachments are available to match diverse working demands.
You can choose different cabins, high‑visibility masts, various tires, LED headlights and premium seats.
Multiple well‑known brand engines including ISUZU, MITSUBISHI, YANMAR, KUBOTA, CUMMINS, KOHLER are optional.
EPA‑compliant engine is provided for special market requirements. OEM & ODM customization is supported.
