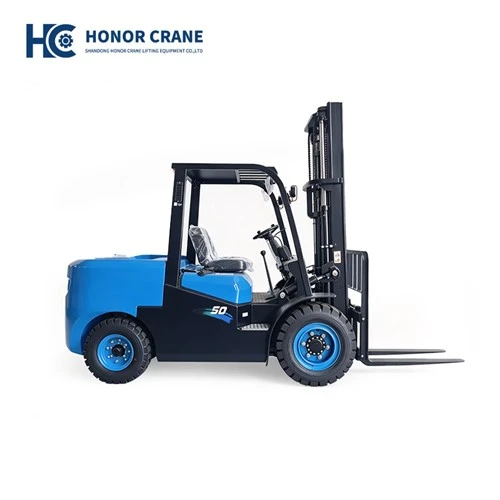

5-ton diesel forklift is a piece of heavy-duty material handling equipment with a rated capacity of 5,000 kg and a load center of 600 mm. It comes with a standard lifting height of 3 meters, with customizable mast options reaching up to 6 meters.
Designed with durability as a core priority, the unit features a chassis and mast constructed from thickened, high-strength steel. This design offers excellent impact resistance and structural integrity, making it well-suited for continuous, heavy-duty operations.
With a high-quality diesel engine that delivers substantial torque and power, the forklift ensures stable performance across various outdoor environments-including storage yards and construction sites with uneven terrain. Its heavy-duty hydraulic system provides smooth lifting and lowering, with minimal risk of leaks and a low failure rate.
The forklift includes a standard overhead guard designed for optimal visibility, along with an ergonomic seat to reduce operator fatigue during extended shifts. Optional attachments-such as sideshifters, fork positioners, and paper roll clamps-are also available.
|
TECHNICAL SPECIFICATIONS FOR DIESEL FORKLIFT |
|||
|
Performance |
Model |
CPC50K/CPCD50k |
|
|
Rated Capacity |
5000 kg |
||
|
Load Center |
500 mm |
||
|
Power Type |
Diesel |
||
|
Max. Lifting Speed (No-Load / Full-Load) |
330 mm/s |
||
|
Max. Towing Capacity (Full-Load / No-Load) |
22 km/h |
||
|
Max. Driving Speed (Full-Load /No-Load) |
15.5 kN |
||
|
Grade ability (Full-Load /No-Load) |
15/20 % |
||
|
Lifting Height |
(H1) |
3000 mm |
|
|
Free Lift Height |
150 mm |
||
|
Mast Tilting Angle (Forward-Backward) |
6/12 ( ∘ ) |
||
|
Min. Turning Radius |
2850 mm |
||
|
Min.Right Angle Aisle Width |
2350 mm |
||
|
Min. Ground Clearance |
180 mm |
||
|
Dimensions |
Overall Length (Including Fork) |
(A) |
4410 mm |
|
Overall Length (Without Fork) |
3190 mm |
||
|
Overall Width |
(B) |
1380 mm |
|
|
Overall Height (Mast Lowered) |
(H) |
2210 mm |
|
|
Overall Height (Mast Extended) |
(H2) |
4320 mm |
|
|
Overall Height to Overhead |
(H3) |
2200 mm |
|
|
Front Overhang |
(A1) |
545 mm |
|
|
Wheelbase |
(A2) |
1980 mm |
|
|
Front Tread |
(B1) |
1080 mm |
|
|
Rear Tread |
(B2) |
970 mm |
|
|
Tire |
Front Wheel |
300-15 mm |
|
|
Rear Wheel |
700-12 mm |
||
|
Fork |
Fork Width |
(B3) |
150 mm |
|
Fork Thickness |
(H4) |
50 mm |
|
|
Backrest Height |
1275 mm |
||
|
Fork Length |
(A3) |
1220 mm |
|
|
Engine |
Engine Model |
XINCHAI C490BPG |
|
|
Rated Power |
45/2300 kW/r.p.m |
||
|
Max. Torque |
193/1600-1800 Nm/r.p.m |
||
|
Number of Cylinders |
4 |
||
|
Displacement |
3.168 L |
||
|
Type of Power Shift |
Mechanical/Hydraulic |
||
|
Curb Weight |
5500 kg |
||
HC products are exported to Europe, Southeast Asia,the Middle East, South America, and Africa, and havebeen widely recognized by customers for their stableperformance and competitive value.
