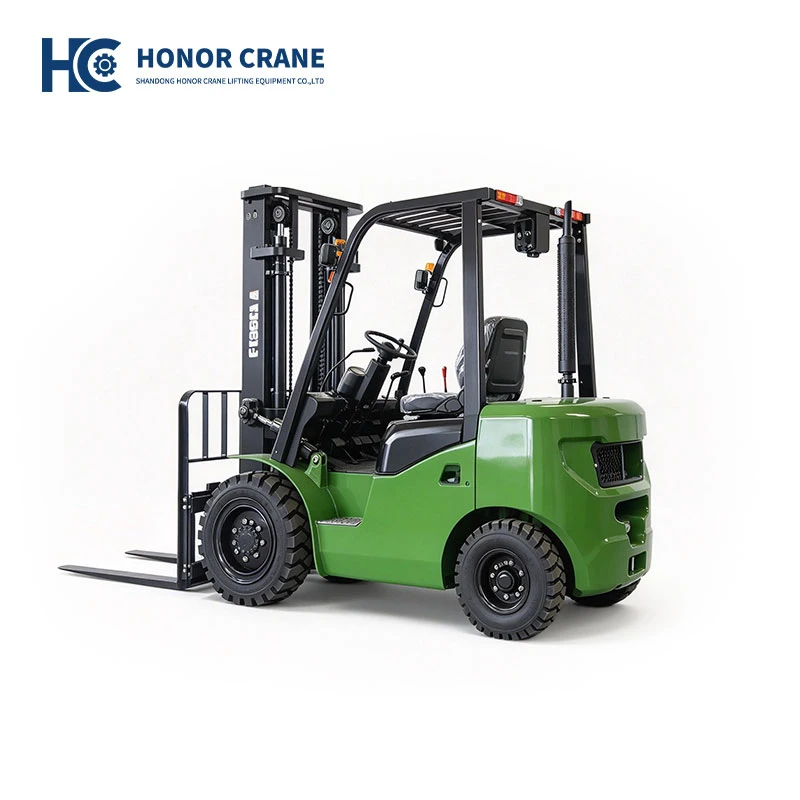

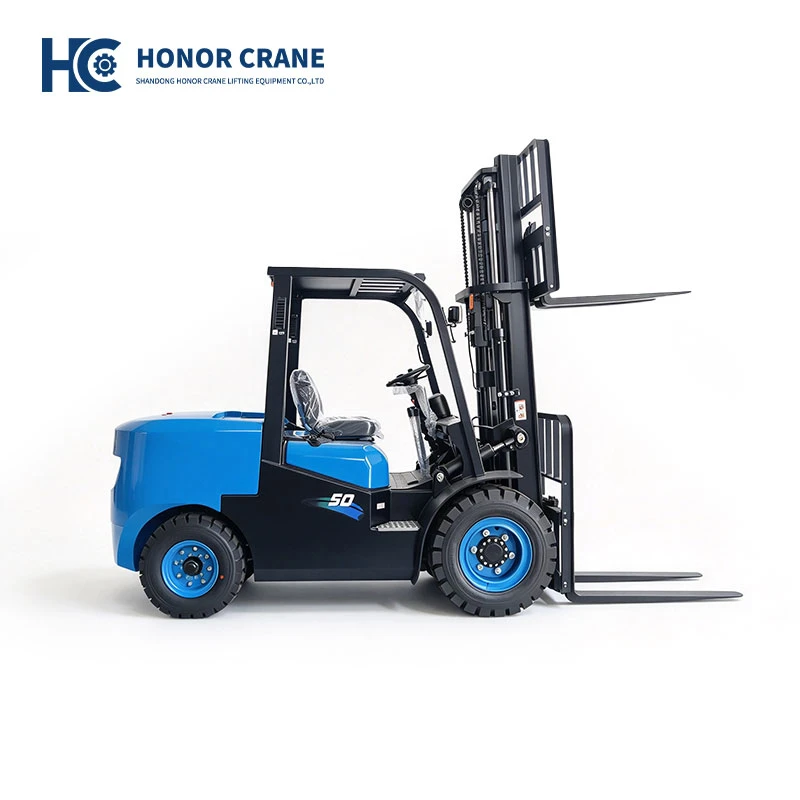

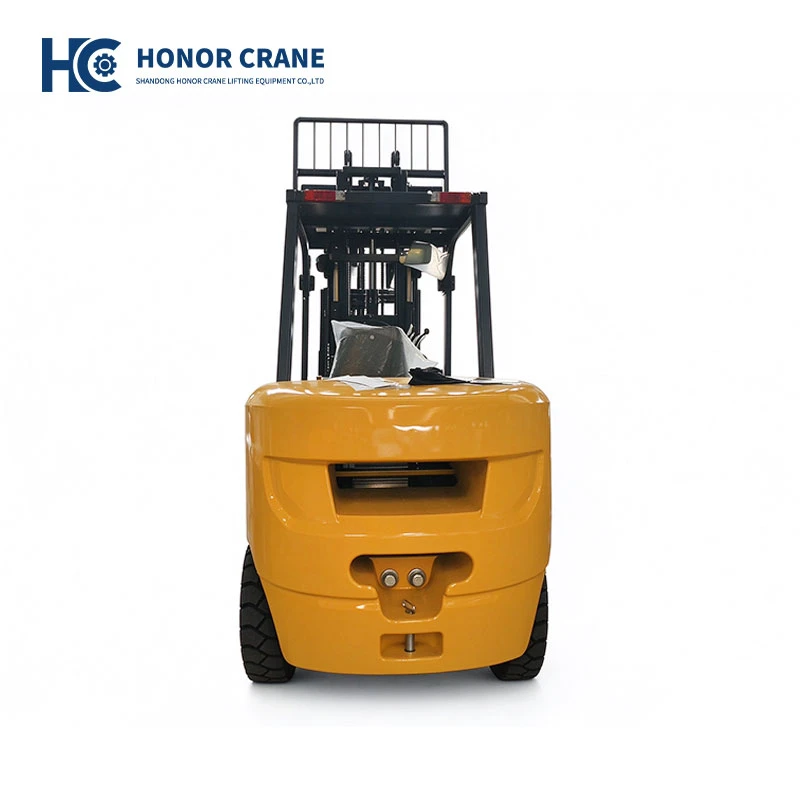

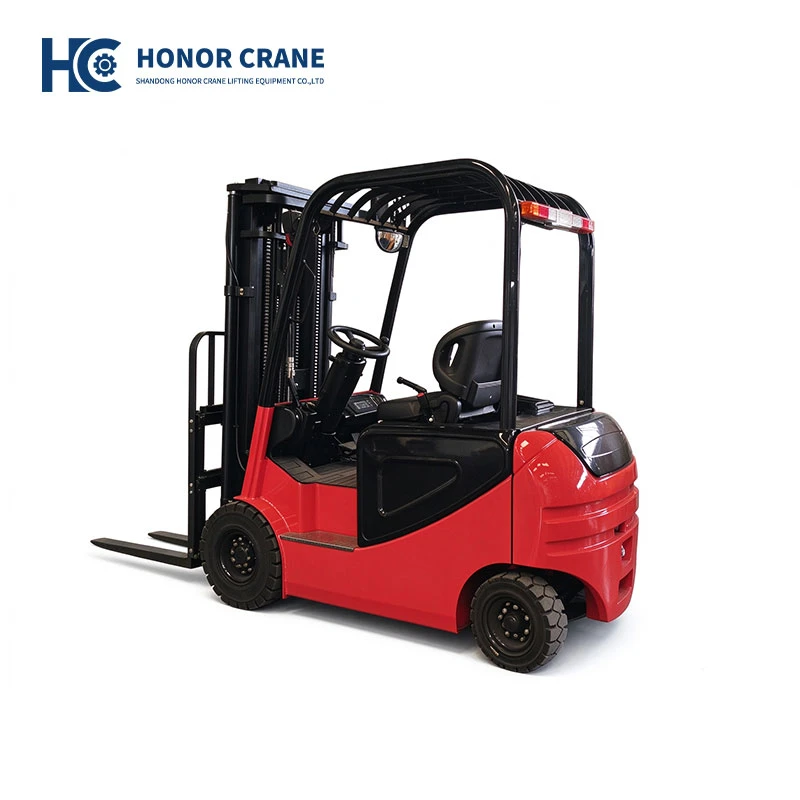

4 Ton Diesel Forklift is a heavy-duty internal combustion forklift designed for medium- and heavy-duty material handling applications. With a rated load capacity of up to 4,000 kg, it features a robust chassis and a powerful diesel engine, providing strong performance, high load capacity, stable operation, and excellent durability.

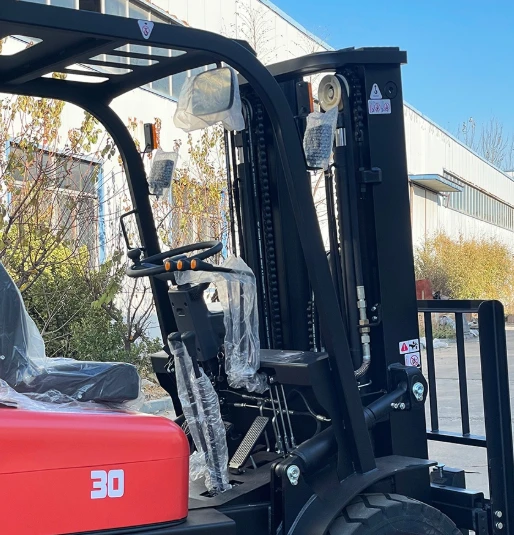

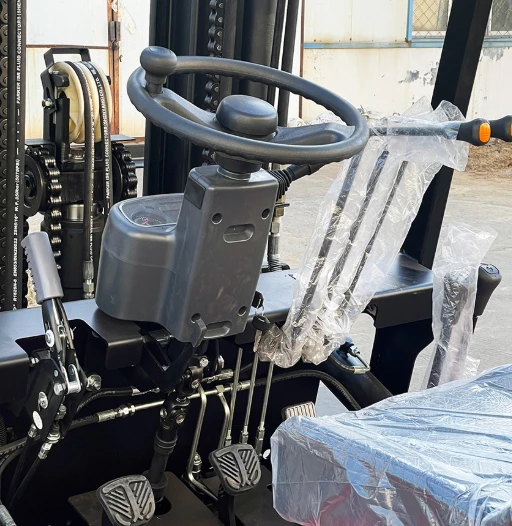

Equipped with a wide-view mast and a comfortable operator compartment, the forklift provides good visibility and efficient operation. Its heavy-duty tires and stable chassis allow it to handle various working conditions, making it suitable for warehouses, factories, logistics centers, construction sites, ports, freight yards, and other material handling environments.
|
TECHNICAL SPECIFICATIONS FOR DIESEL FORKLIFT |
|||
|
Performance |
Model |
CPC40/CPCD40 |
|
|
Rated Capacity |
4000 kg |
||
|
Load Center |
500 mm |
||
|
Power Type |
Diesel |
||
|
Max. Lifting Speed (No-Load / Full-Load) |
470/420 mm/s |
||
|
Max. Towing Capacity (Full-Load / No-Load) |
18/20 km/h |
||
|
Max. Driving Speed (Full-Load /No-Load) |
16.5/11.5 kN |
||
|
Grade ability (Full-Load /No-Load) |
15/20 % |
||
|
Lifting Height |
(H1) |
3000 mm |
|
|
Free Lift Height |
80 mm |
||
|
Mast Tilting Angle (Forward-Backward) |
6/12 ( ∘ ) |
||
|
Min. Turning Radius |
2540 mm |
||
|
Min.Right Angle Aisle Width |
2050 mm |
||
|
Min. Ground Clearance |
135 mm |
||
|
Dimensions |
Overall Length (Including Fork) |
(A) |
4170 mm |
|
Overall Length (Without Fork) |
2950 mm |
||
|
Overall Width |
(B) |
1230 mm |
|
|
Overall Height (Mast Lowered) |
(H) |
2130 mm |
|
|
Overall Height (Mast Extended) |
(H2) |
4270 mm |
|
|
Overall Height to Overhead |
(H3) |
2130 mm |
|
|
Front Overhang |
(A1) |
465 mm |
|
|
Wheelbase |
(A2) |
1735 mm |
|
|
Front Tread |
(B1) |
1000 mm |
|
|
Rear Tread |
(B2) |
970 mm |
|
|
Tire |
Front Wheel |
2.50-15 mm |
|
|
Rear Wheel |
6.50-10 mm |
||
|

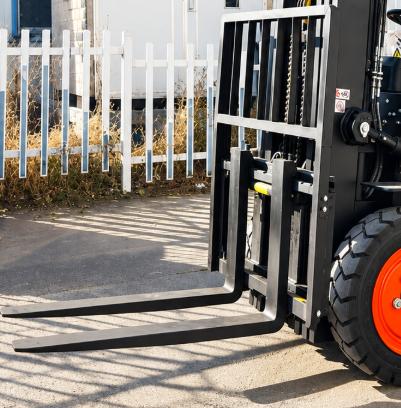

Fork |
Fork Width |
(B3) |
122 mm |
|
Fork Thickness |
(H4) |
50 mm |
|
|
Backrest Height |
1225 mm |
||
|
Fork Length |
(A3) |
1220 mm |
|
|
Engine |
Engine Model |
XINCHAI C490BPG |
|
|
Rated Power |
40 Kw |
||
|
Rotate Speed at Rate Power |
2650 rpm |
||
|
Max. Torque |
162 Nm |
||
|
Rotation Speed at Max. Torque |
1800~1900 rpm |
||
|
Type of Power Shift |
Mechanical/Hydraulic |
||
|
Curb Weight |
4600 kg |
||
