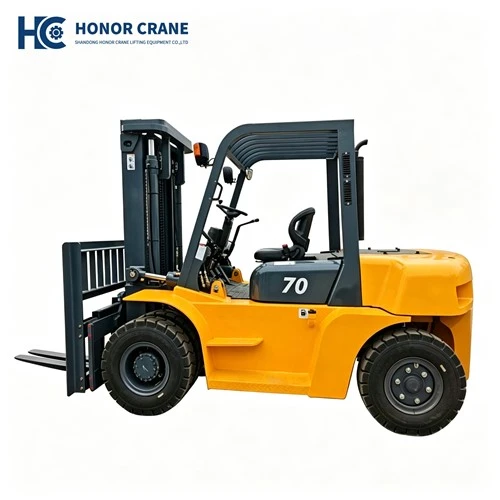

This heavy-duty diesel forklift is designed for 7-ton heavy load material handling. Powered by Quanchai 4J1 diesel engine, it provides reliable power output and good adaptability to tough outdoor working environments. Adopting hydraulic power shift transmission, the machine realizes smooth gear shifting and simple operation. The reinforced mast and thick heavy-duty forks ensure high loading stability and safety during lifting. With great gradeability and large ground clearance, this forklift can work well on uneven ground. It is a reliable handling solution for factories, yards, ports and construction sites. Custom service including color and attachments is available.
Key Features
Reinforced Fork
Built with thick high‑strength steel forks and heavy‑duty carriage. Resists deformation under heavy loads to guarantee secure pallet handling.
Robust Welded Mast System
Heavy‑duty multi‑stage welded mast ensures smooth lifting and tilting. Stable performance for high‑level stacking and material storage tasks.
Heavy‑Duty Deep‑Tread Tires
Deep‑groove tires deliver excellent traction. Perfect for yards, construction sites and all kinds of uneven outdoor working surfaces.
Powerful Diesel Engine
Equipped with proven QUANCHAI 4J1 diesel engine, it outputs stable and sufficient power for heavy‑load outdoor tasks.
Products Specifications
| Item | Specification |
|---|---|
| Rated Capacity | 7000 kg |
| Load Center | 600 mm |
| Power Type | Diesel |
| Max. Lifting Speed (No-Load / Full-Load) | 450 mm/s |
| Max. Driving Speed (Full-Load / No-Load) | 26 / 28 km/h |
| Max. Towing Capacity | 54 kN |
| Gradeability (Full-Load / No-Load) | 15% / 20% |
| Lifting Height | 3000 mm |
| Free Lift Height | 150 mm |
| Mast Tilting Angle (Forward-Backward) | 6° /12° |
| Min. Turning Radius | 3450 mm |
| Min. Right Angle Aisle Width | 3090 mm |
| Min. Ground Clearance | 230 mm |
| Overall Length (Including Fork) | 4800 mm |
| Overall Width | 1995 mm |
| Overall Height (Mast Lowered) | 2500 mm |
| Overall Height (Mast Extended) | 4420 mm |
| Overall Height to Overhead | 2420 mm |
| Front Overhang | 610 mm |
| Wheelbase | 2250 mm |
| Front Tread | 1470 mm |
| Rear Tread | 1700 mm |
| Front Wheel | 8.25-15-14 |
| Rear Wheel | 8.25-15-14 |
| Fork Width | 150 mm |
| Fork Thickness | 65 mm |
| Backrest Height | 1365 mm |
| Fork Length | 1220 mm |
| Engine Model | QUANCHAI 4J1 |
| Rated Power | 85 kW |
| Rotate Speed at Rate Power | 2200 rpm |
| Max. Torque | 500 Nm |
| Rotation Speed at Max. Torque | 1650 rpm |
| Type of Power Shift | Hydraulic |
| Curb Weight | 9500 kg |
Optional Configurations
Custom Optional Parts & Engines
A wide range of optional configurations and attachments are available to match diverse working demands.
You can choose different cabins, high‑visibility masts, various tires, LED headlights and premium seats.
Multiple well‑known brand engines including ISUZU, MITSUBISHI, YANMAR, KUBOTA, CUMMINS, KOHLER are optional.
EPA‑compliant engine is provided for special market requirements. OEM & ODM customization is supported.
