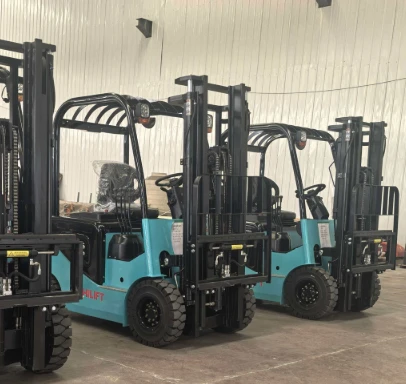

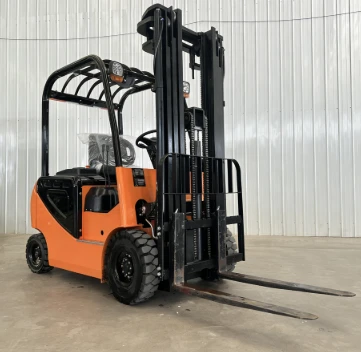

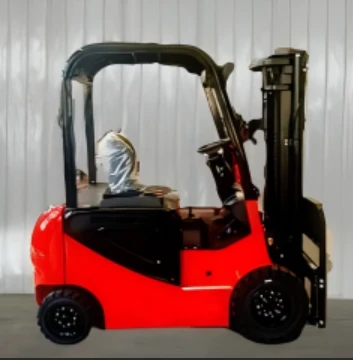

1.6 Ton Electric-Forklift

Model

CPD15

Rated lifting capacity

1500

Load center

500

Power source

Lithium-ion battery

Operation type

Ride-on

Wheelbase

1450

Wheel track (front/rear)

945\880

Front overhang

325

Mast tilt angle (forward/backward)

5\10

Max. lifting height

3000

Free lift height

105

Mast overall height (forks lowered, mast vertical)

2115

Max. operating height

4055

Overhead guard height

2120

Overall length (with forks)

3190 (without fork 2120)

Overall width

1096

Min. ground clearance (at mast)

100

Minimum turning radius

2180

Fork dimensions

40*100*1070

Max. travel speed (unladen)

15

Max. travel speed (laden)

13

Lifting speed (laden/unladen)

S 10\12

Lowering speed (laden/unladen)

550

Max. Gradeability (laden/unladen)

15\20

Total weight

2650

Number of wheels (X = drive wheel; front/rear)

2\2

Tire type (front/rear)

Solid tire

Tire size (front/rear)

6.50-10/16*6-8

Service brake

Hydraulic-pedal type

Parking brake

Mechanical-manual type

Drive motor power (S2-60min)

5KW

Lift motor power (S3-15%)

5KW

Drive motor control method

AC/Alternating Current

Lift motor control method

AC/Alternating Current

Hydraulic system operating pressure

18MP

Battery (voltage/capacity)

76.8V\150AH
