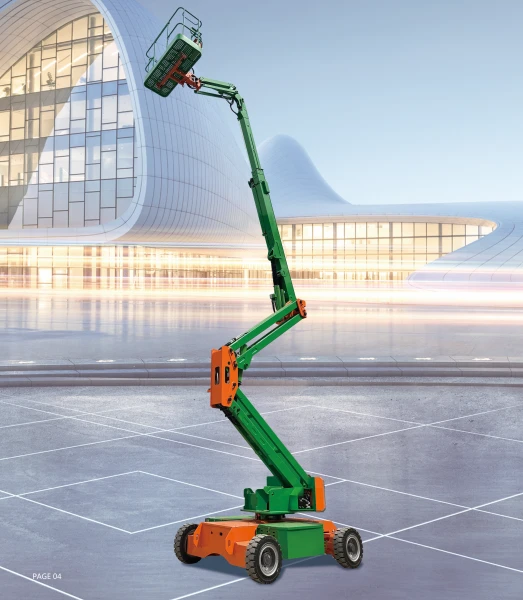

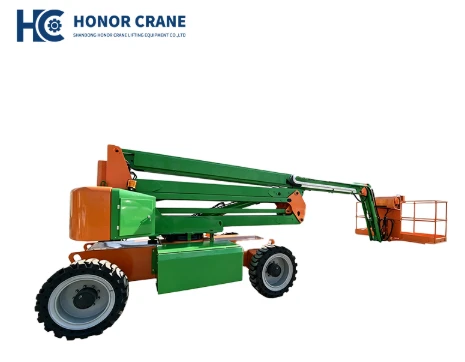

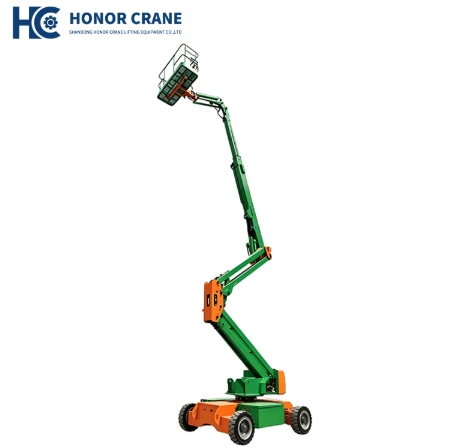

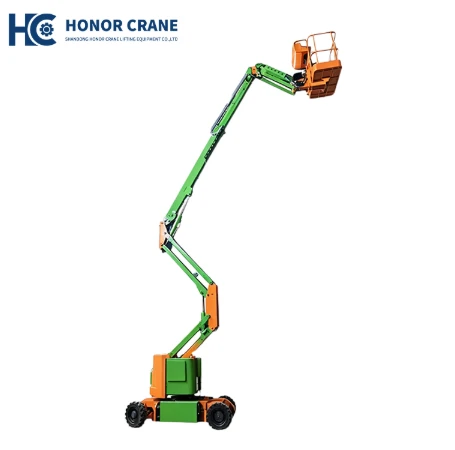

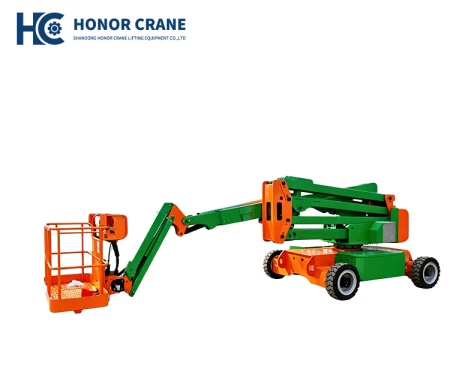

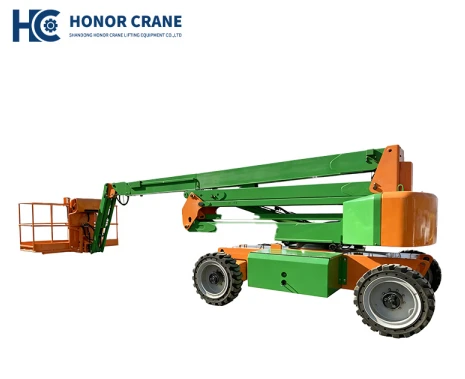

HC 12m-22m Self-propelled articulated boom lift
This product is convenient to enter narrow doorwaysand flexible to operate; Lifting and walking are alldriven by AC motors, maintenance free and safer;Green and environmentally friendly, low noise,suitable for construction conditions with highrequirements for noise and environmental protection,such as office buildings, shopping malls, residentialproperties, workshops, airport terminals, etc.
01
Flexible operation, precise positioning
02
Adapts to various operating conditions.
03
Long lifespan, impressive range
Product Showcase

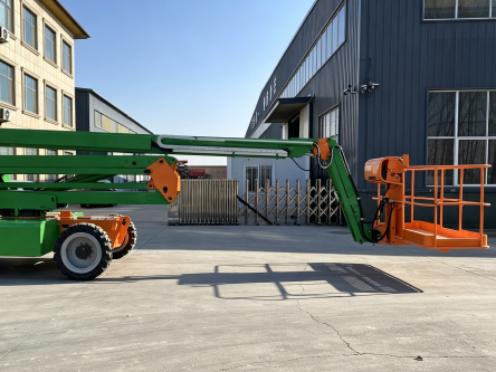

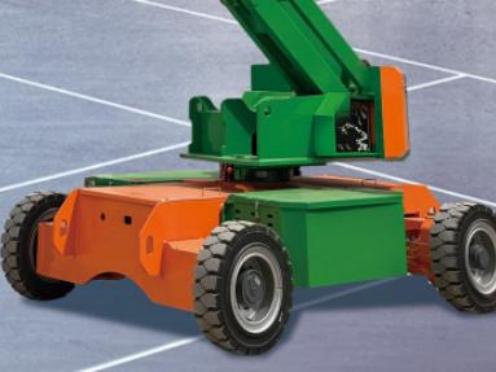

Strong obstacle crossing ability

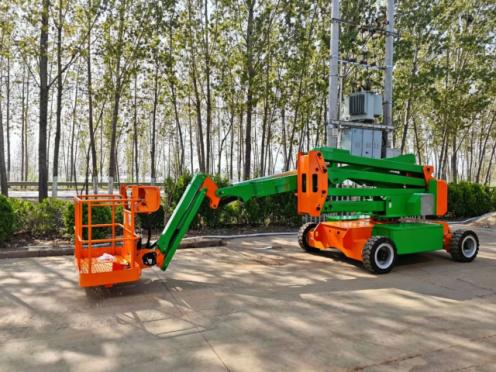

Easy to work in narrow spaces

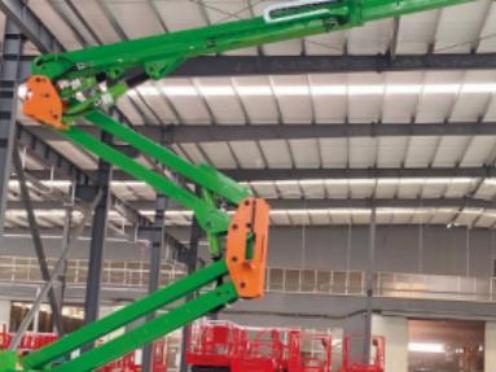

Superior performance
| Model | HC-12 | HC-14 | HC-16 | HC-18 | HC-20 | HC-22 |
|---|---|---|---|---|---|---|
| Specifications | ||||||
| Max. Working height | 12m | 13.9m | 16m | 18m | 20m | 22m |
| Max. Platform height | 10m | 11.9m | 14m | 16m | 18m | 20m |
| Max. span height | 5.4m | 5.4m | 7.86m | 7.86m | 7.86m | 8.54m |
| Max. Working radius | 7.9m | 7.9m | 8.45m | 10m | 10m | 12.9m |
| A Platform width | 0.76m | 0.76m | 0.76m | 0.76m | 0.9m | 0.9m |
| B Platform length | 1.4m | 1.4m | 1.83m | 1.83m | 2.4m | 2.4m |
| C Platform height - stowed | 2.06m | 2.06m | 2.32m | 2.32m | 2.53m | 2.53m |
| D Length - stowed | 6.28m | 6.28m | 6.85m | 7.68m | 8.9m | 8.9m |
| E Width | 1.45m | 1.6m | 2.32m | 2.32m | 2.45m | 2.45m |
| F Wheelbase | 1.87m | 1.87m | 2.36m | 2.36m | 2.5m | 2.5m |
| Ground clearance - center | 0.15m | 0.15m | 0.3m | 0.3m | 0.3m | 0.3m |
| Productivity | ||||||
| Max. Lift capacity | 227kg | 227kg | 256kg/350kg | 256kg/350kg | 256kg/350kg | 256kg |
| Number of platform occupants | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| Platform rotation | 160° | 160° | 160° | 160° | 160° | 160° |
| Turntable rotation | 355° | 355° | 355° | 355° | 355° | 355° |
| Drive speed - stowed | 0-5km/h | 0-5km/h | 0-5.2km/h | 0-5.2km/h | 0-6km/h | 0-6km/h |
| Gradeability - stowed | 35% | 35% | 30% | 30% | 45% | 45% |
| Max. Working angle (Tilt sensor activation) | 3° | 3° | 3° | 5° | 5° | 5° |
| Turning radius (outside) | 3.3m | 3.3m | 4.7m | 4.7m | 5.4m | 5.4m |
| Drive and steer | 4*2 | 4*2 | 4*2 | 4*2 | 4*4 | 4*4 |
| Weight | ||||||
| Weight | 6100kg | 6500kg | 7250kg | 7900kg | 8550kg | 8900kg |
| Power (Diesel engine selection) | ||||||
| Battery | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/320Ah | 48V/320Ah |
| Control voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Pump motor | 5.5kw | 5.5kw | 7kw | 7kw | 7kw | 7kw |
| Drive motor | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw | 2*3.3kw |
Product Details

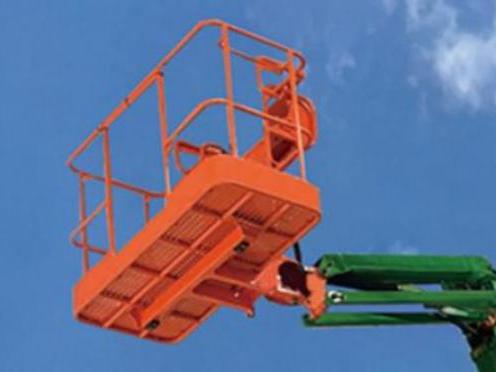

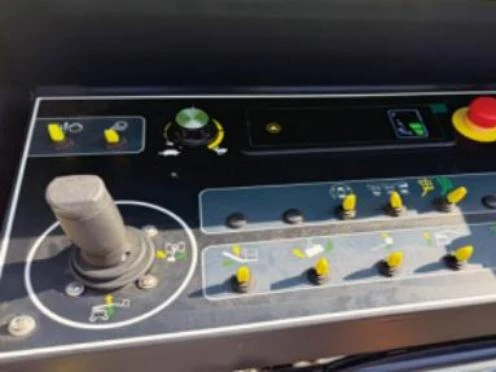

Strong human-computer interaction
Multiple security protections
Strong adaptability
Product Packaging
Supports wooden crate packaging.
Multi-layered protection
Safe, secure, and highly protective.
