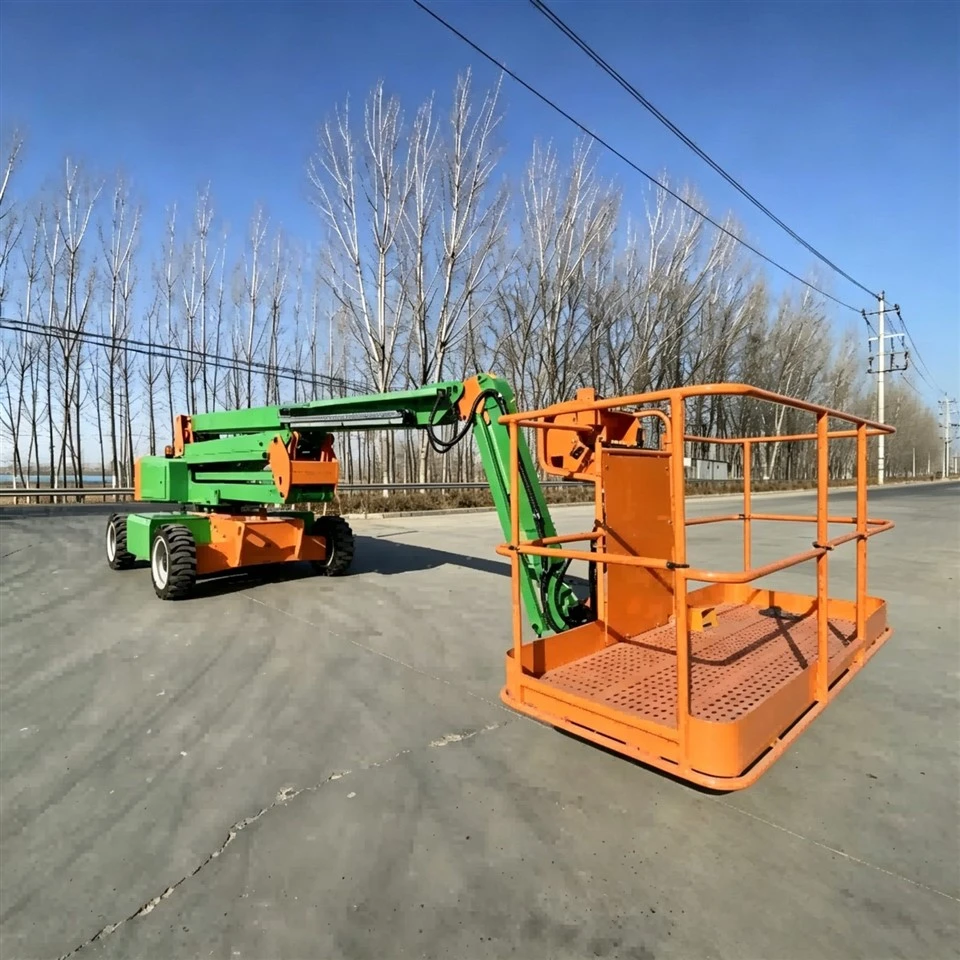

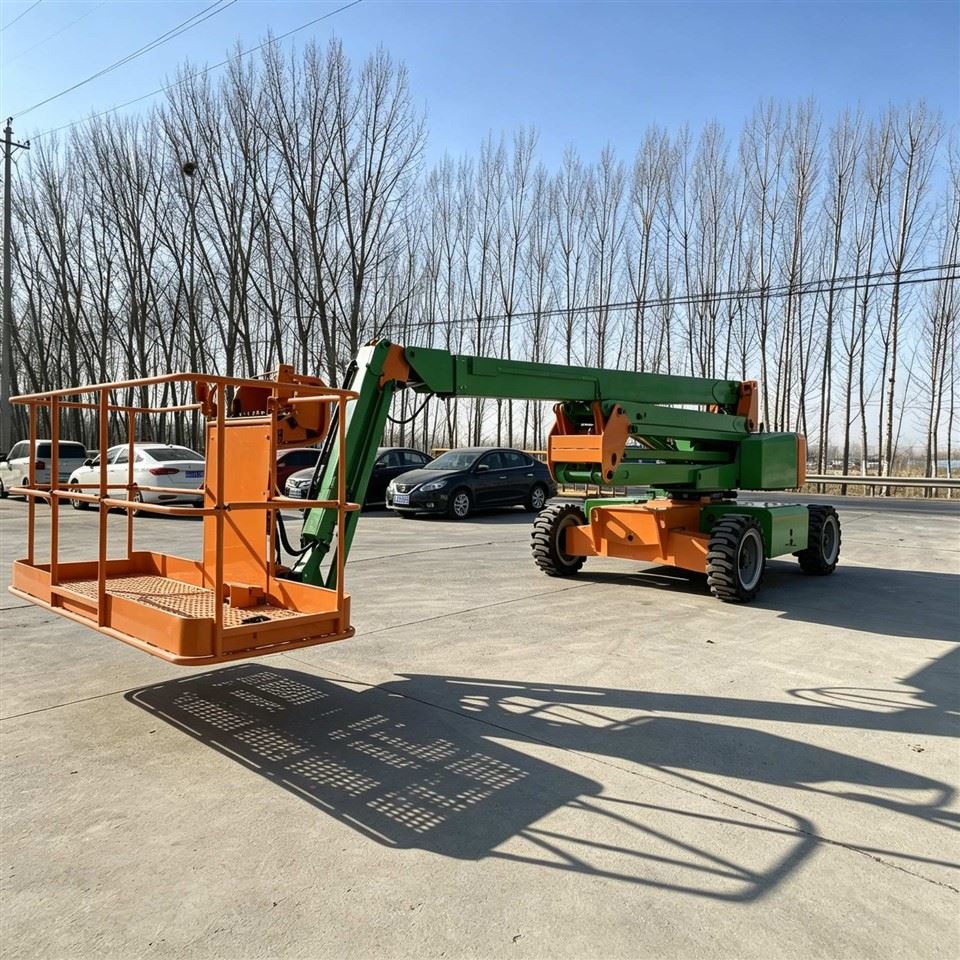

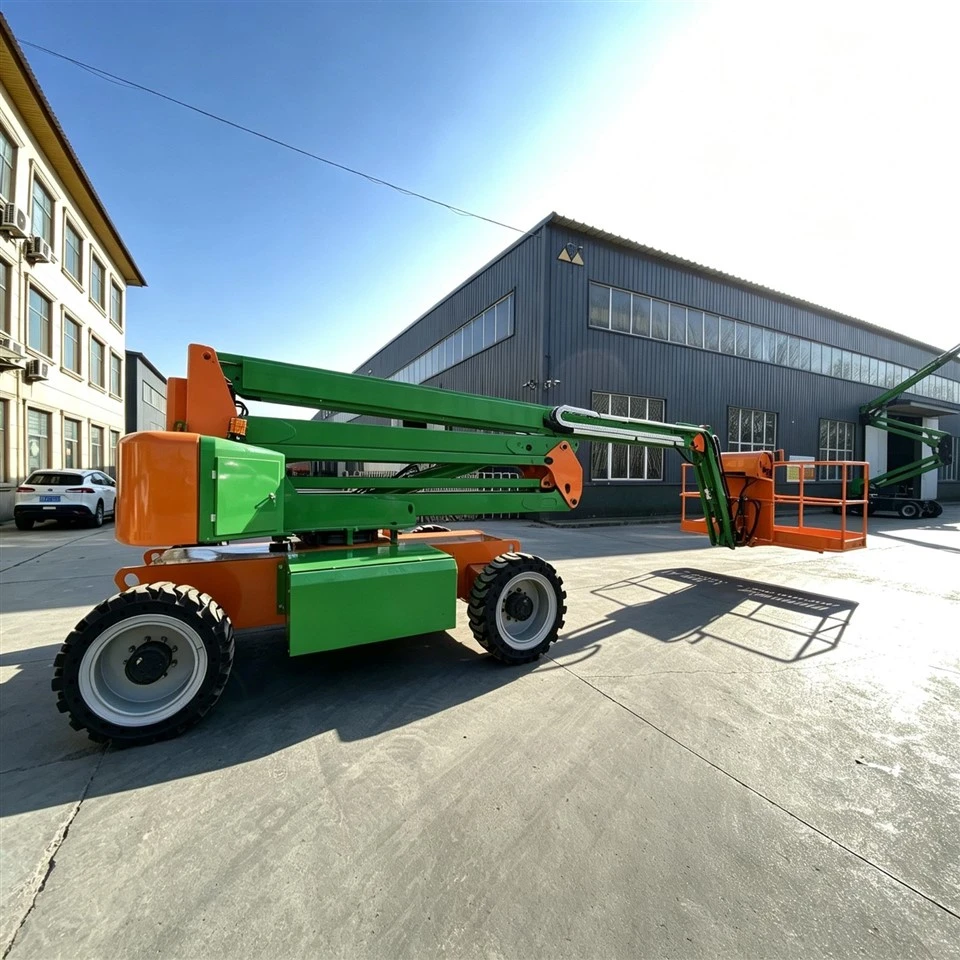

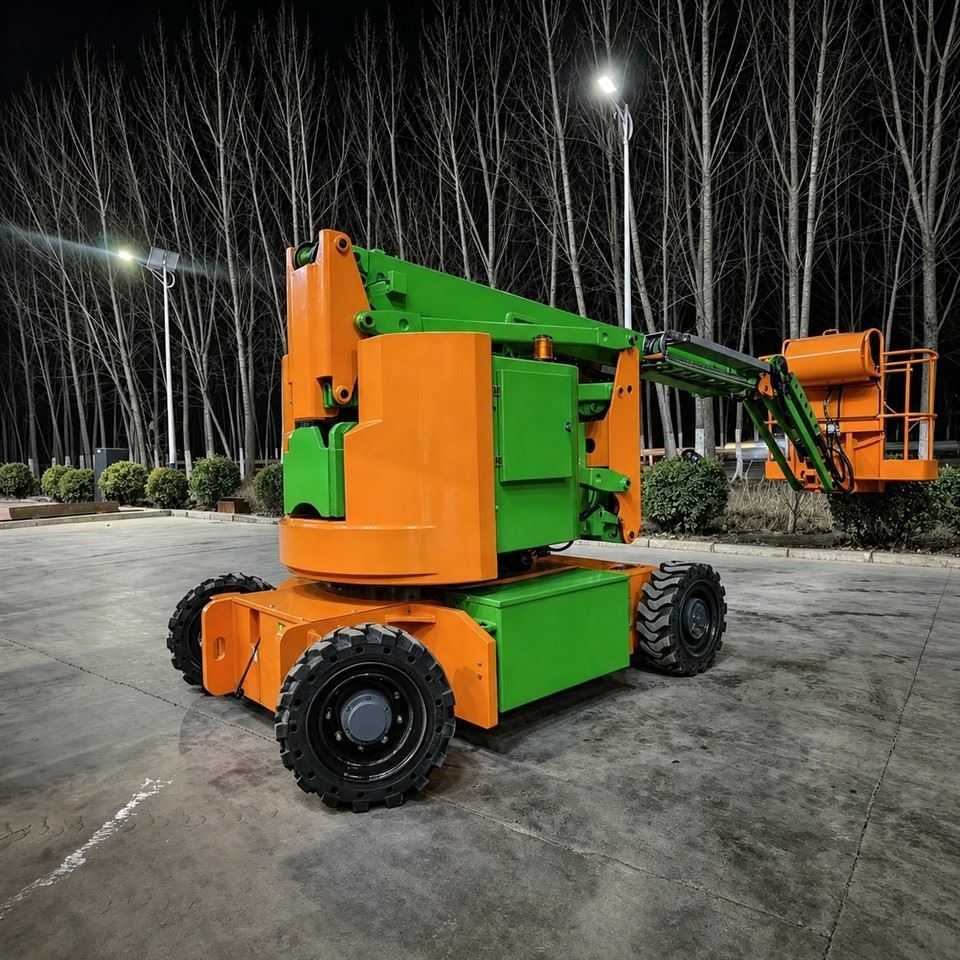

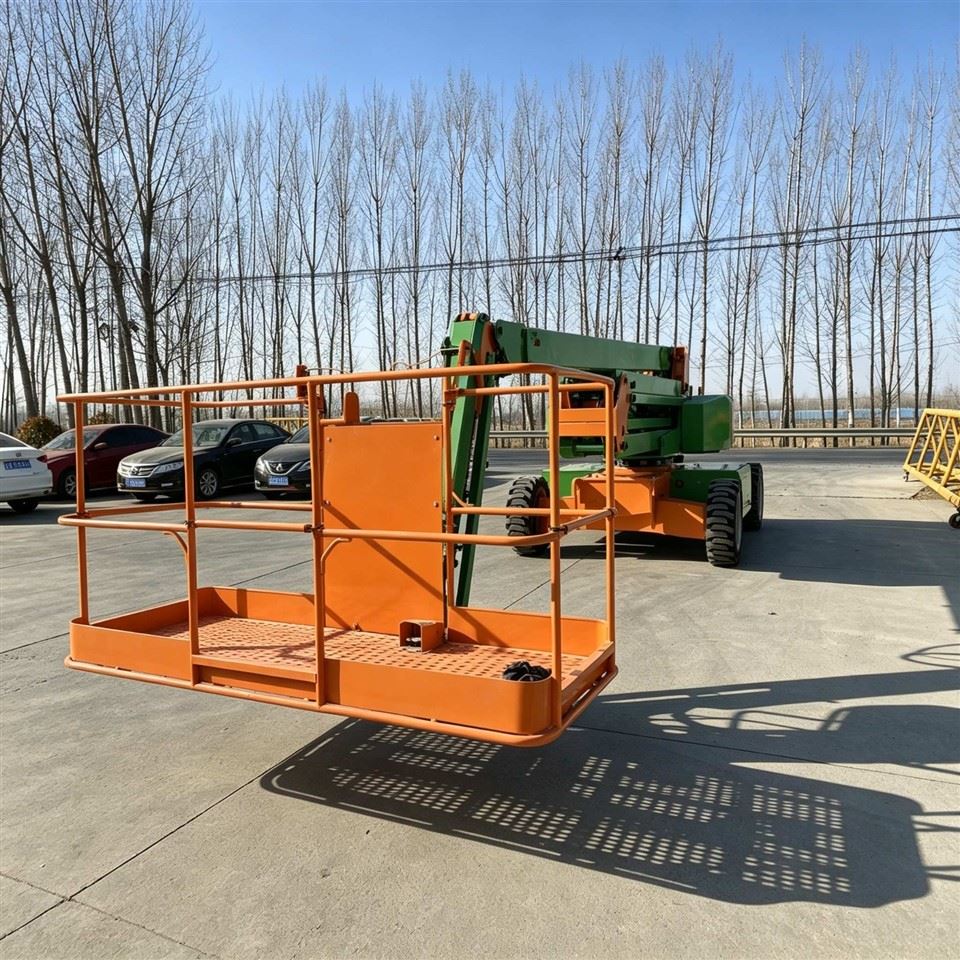

Self Propelled Boom Lift

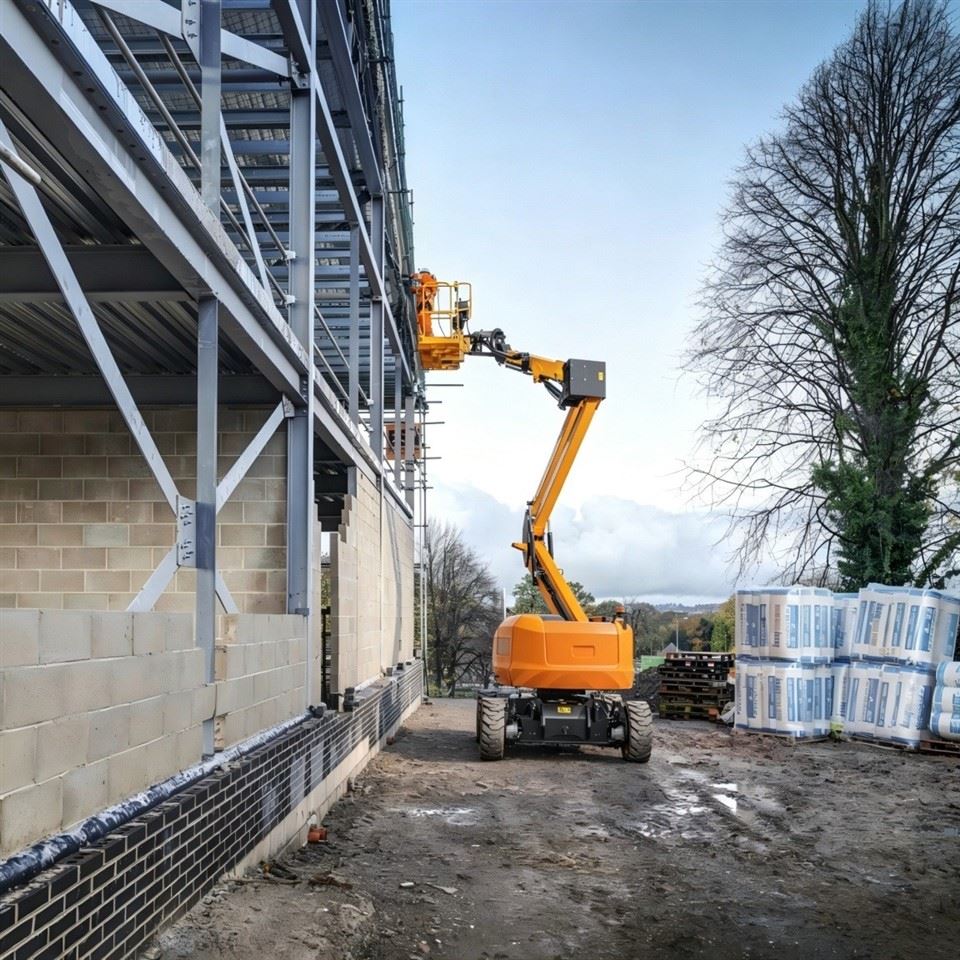

High-performance Self Propelled Boom Lift with flexible operation, excellent lifting capacity and reliable stability. Suitable for construction, equipment installation, warehouse maintenance and other elevated work applications.
Self-propelled & easy to operate
In Stock
Worldwide Shipping Available
High quality
advanced equipment
professional team
one-stop solution
Products Description
| Parameter | |
| Specifications | |
| Max. Working Height | 23.8m |
| Max. Platform Height | 21.8m |
| Max. Span Height | 17m |
| Maximum Horizontal Outreach | 11m |
| A. Overall Length | 11m |
| B. Overall Width | 2.5m |
| C. Overall Height | 2.765m |
| Work Platform Dimensions (L x W) | 2.44×0.9m |
| D. Wheelbase | 2.51m |
| Track Width | 2.14m |
| E. Ground Clearance (Center) | 0.4m |
| Productivity | |
| Rated Load (Unrestricted/Restricted) | 300kg/450kg |
| Turntable Rotation Angle | 360° |
| Tail Swing | 1.4 |
| Platform Swing Amplitude | 180° |
| Forearm Swing Amplitude | 130° |
| Maximum Allowable Chassis Angle | 5°/5° |
| Minimum Turning Radius (Inner/Outer Wheel) | 1.9m/3.9m |
| Maximum Gradeability (Pump/Hydraulic) | 45%/24% |
| Driving Type | 4×4 (4WD, 4-wheel steering, crab walk) |
| Tire Type | Foam filled tire |
| Tire Size | 355/55D625 |
| Power (Diesel Engine Optional) | |
| Battery | 80V/350Ah |
| Charger | 80V/80A |
| Drive Motor | AC 54V |
| Lifting Motor | AC 56V |
| Hydraulic Oil Tank | 120L |
| Weight | |
| Overall Weight | 12300kg |
Products Description
|
No. |
Configuration Item |
|
1 |
Full proportional control |
|
2 |
Action sound and light warning |
|
3 |
Platform self-locking |
|
4 |
Emergency descent |
|
5 |
Emergency stop |
|
6 |
Prevent compression |
|
7 |
Platform automatic leveling |
|
8 |
Fault indication |
|
9 |
Tilt protection |
|
10 |
Weighing system |
|
11 |
Platform rotation |
Packing
