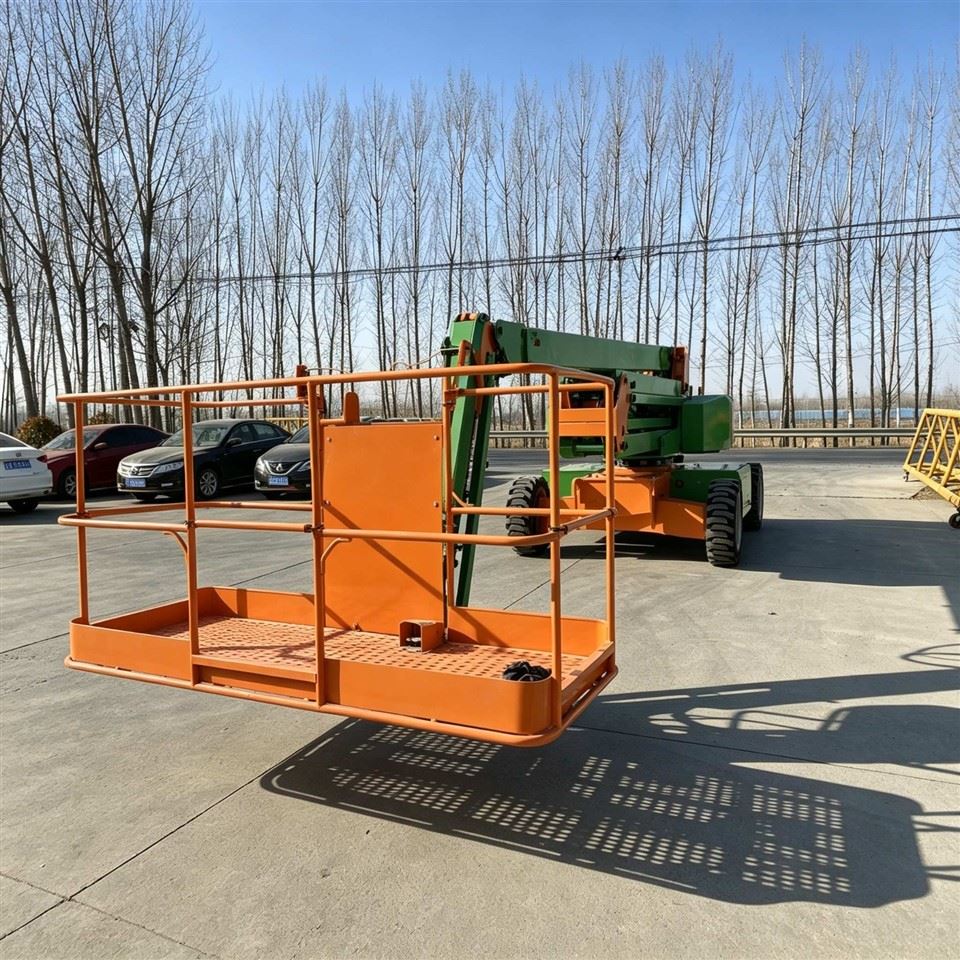

Articulated Boom Aerial Work Platform

Self‑propelled articulated boom lift features knuckle boom structure for excellent over‑obstacle performance. Working height ranges from 21.8m to 32.4m. Equipped with full proportional control, tilt protection, weighing system, emergency descent and other standard safety configurations. Electric and diesel power versions are optional.
🚨 In stock available, global shipping supported. Contact us to get your instant quotation.

Self‑propelled articulated boom lift

Self‑propelled articulated boom lift Adopts flexible knuckle‑boom structure, ideal for aerial work where obstacles need to be bypassed. It comes with full‑proportional control, tilt protection, weighing system and emergency descent function to guarantee safe site operation. Working height covers 21.8m‑32.4m, both electric and diesel power types are offered for your selection.

Products Description

Parameter
Specifications
Max. Working Height	21.8m
Max. Platform Height	19.8m
Max. Span Height	16.6m
Maximum Horizontal Outreach	10.2m
A. Overall Length	10.2m
B. Overall Width	2.5m
C. Overall Height	2.765m
Work Platform Dimensions (L x W)	2.44×0.9m
D. Wheelbase	2.51m
Track Width	2.14m
E. Ground Clearance (Center)	0.4m
Productivity
Rated Load (Unrestricted/Restricted)	300kg/450kg
Turntable Rotation Angle	360°
Tail Swing	1.4
Platform Swing Amplitude	180°
Forearm Swing Amplitude	130°
Maximum Allowable Chassis Angle	5°/5°
Minimum Turning Radius (Inner/Outer Wheel)	1.9m/3.9m
Maximum Gradeability (Pump/Hydraulic)	45%/24%
Driving Type	4×4 (4WD, 4-wheel steering, crab walk)
Tire Type	Foam filled tire
Tire Size	355/55D625
Power (Diesel Engine Optional)
Battery	80V/350Ah
Charger	80V/80A
Drive Motor	AC 54V
Lifting Motor	AC 56V
Hydraulic Oil Tank	120L
Weight
Overall Weight	12000kg
