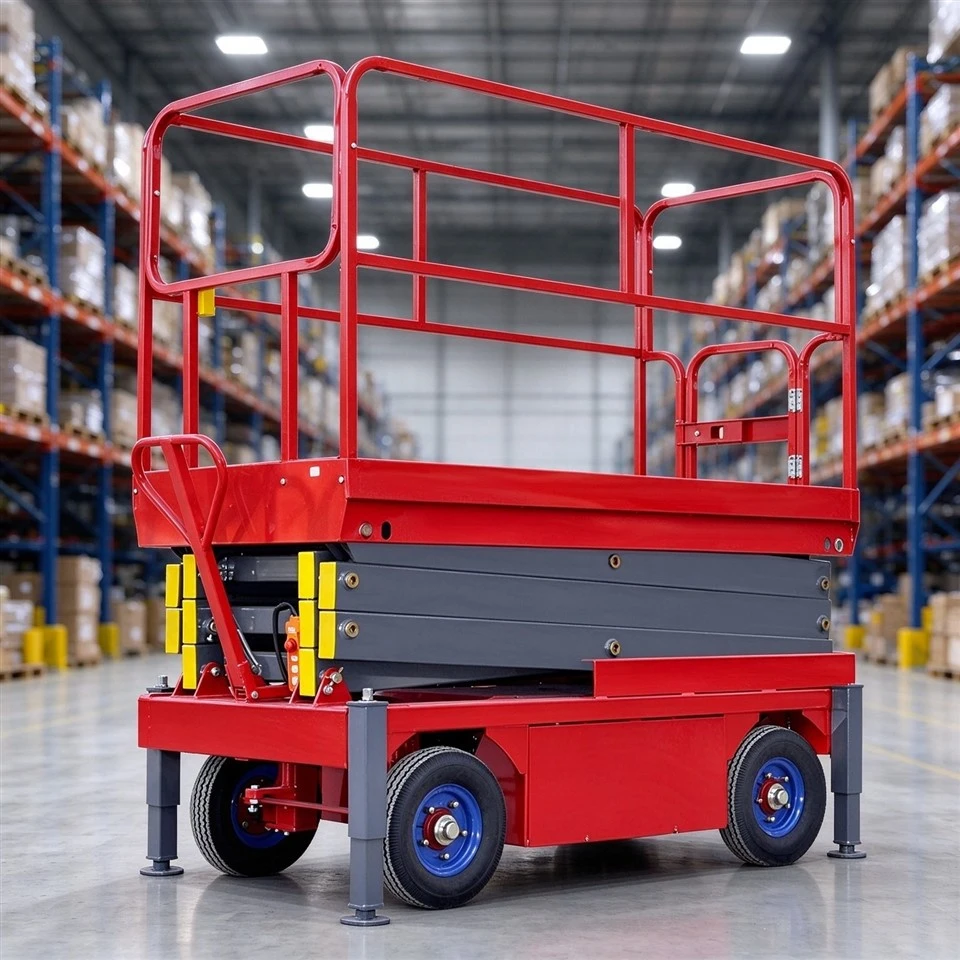

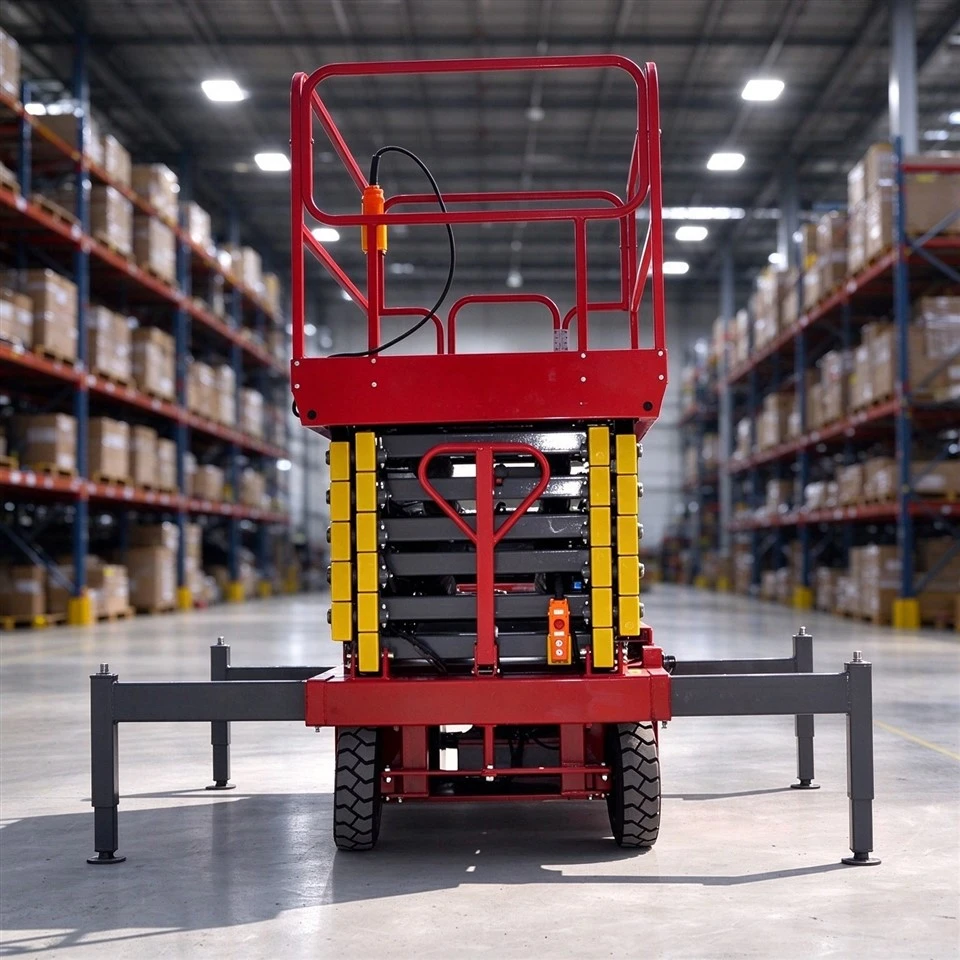

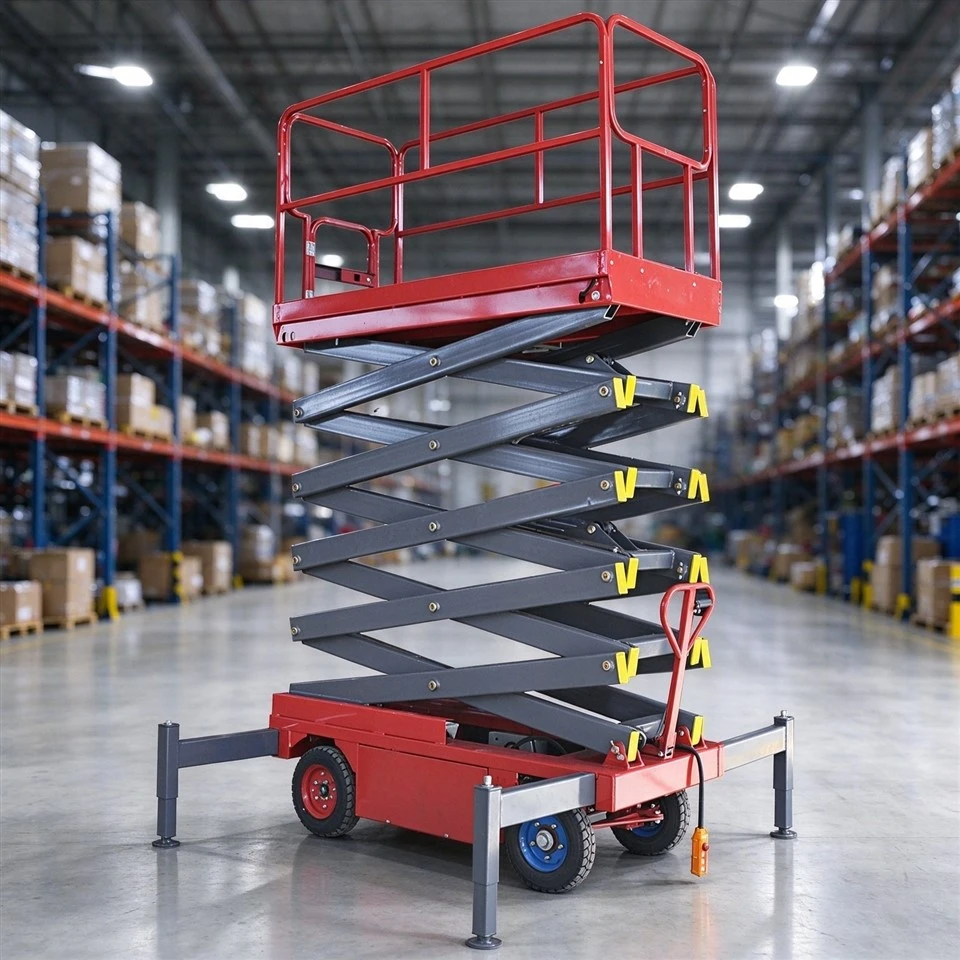

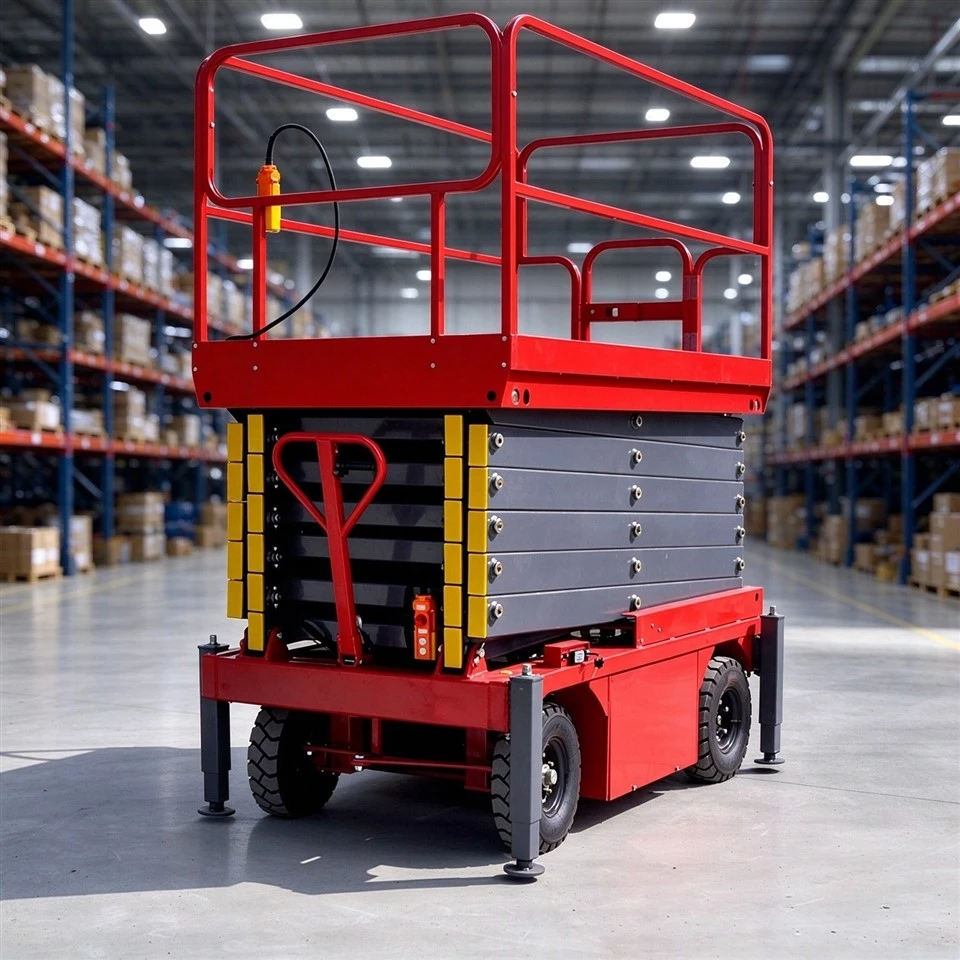

Hydraulic Towable Scissor Lift Products Description
| Model | Table Size(mm) | Load Capacity(kg) | Lifting Height(m) | Overall Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|
| MP‑0.5‑10 | 2010*1130 | 500 | 10 | 201612901540 | 1300 |
Hydraulic Towable Scissor Lift Material Configuration List
| No. | Structure Name | Component Name | Specification & Model | Remarks | |
|---|---|---|---|---|---|
| 1 | Lifting Structure | Table Panel | 3mm Flat Plate Bending | Laser cutting, CNC bending, precise blanking | |
| 2 | Table Frame | 2mm Flat Plate Bending | |||
| 3 | Upper Rail | 3mm Steel Plate Custom‑bent | Laser cutting, CNC bending, precise blanking | ||
| 4 | Scissor Arm | 120603.75mm Rectangular Tube | Punch hole opening, high assembly accuracy without deflection | ||
| 5 | Bushing | Ø45×7.5 Seamless Tube Custom‑made | |||
| 6 | Shaft Pin | Ø30, 45# Round Steel Custom‑made | Quenched and tempered & galvanized; built‑in hidden oil groove | ||
| 7 | Bearing | Assorted Models Fitted | Harbin Bearing | ||
| 8 | Hinge Lug | 12mm Steel Plate Fabricated | Laser cutting, precise blanking | ||
| 9 | Base Frame | 120603.75mm Rectangular Tube Custom‑made | |||
| 11 | Lower Rail | 4mm Steel Plate Custom‑bent | Laser cutting, CNC bending, precise blanking | ||
| 12 | Slider | 6 pcs MC Nylon Slider | Large contact surface, stable lifting with slight wobble | ||
| 13 | Outrigger | 100503.75mm Rectangular Tube Custom‑made | Pull‑out outriggers for flexible extension; solves restriction in narrow spaces | ||
| 14 | Hydraulic Structure | Power Unit | 2.2Kw, AC220V, 50Hz | ||
| 15 | Hydraulic Pump | Hydraulic Pump | Zhejiang Tiandi. Equipped with emergency lowering valve: lowers personnel & goods under power‑failure conditions; relief valve prevents excessive system pressure for overload protection during upward travel | ||
| 16 | Relief Valve | Relief Valve | |||
| 17 | Throttle Valve | Throttle Valve | |||
| 18 | Check Valve | Check Valve | |||
| 19 | Solenoid Valve | Solenoid Valve | |||
| 20 | O‑ring | O‑ring | |||
| 21 | Oil Filter | Oil Filter | |||
| 22 | Emergency Lowering Valve | Emergency Lowering Valve | |||
| 23 | Valve Plate | T6 Aluminum Plate Custom‑made | |||
| 24 | Hydraulic Cylinder | 4 pcs HSG70/45, Chrome‑plated Cylinder Rod | Baili brand; NOK Japan seals for durability and zero leakage | ||
| 25 | Oil Seal | Ø70, NOK Japan | |||
| 26 | Hydraulic Hose | 2‑layer steel‑wire reinforced high‑pressure hose | |||
| 27 | Straight Coupling | High‑strength Straight Coupling | Galvanized finish | ||
| 28 | Tee Fitting | High‑strength Tee Fitting | |||
| 29 | Oil Tank | 25L | Custom‑fabricated | ||
| 30 | Hydraulic Oil | 46# Anti‑wear Hydraulic Oil | Great Wall or Kunlun brand | ||
| 31 | Electric Control Section | Motor Cable | 3‑core Cable | Brand‑name components; contactor connection; thermal overload & phase‑sequence loss protection; electric up‑down control; emergency‑stop button on push‑button box for personnel & property safety; 24V safe control voltage for all operating parts | |
| 32 | Control Cable | 5‑core Cable | |||
| 33 | Contactor | ||||
| 34 | Transformer | Renmin BK‑50 | |||
| 35 | Time Relay | ||||
| 36 | Electric Box | High‑quality Product | |||
| 37 | Push‑button Box | Nameplate | |||
| 38 | Limit Switch | 8108 | |||
| 39 | Travel Mechanism | Steering Assembly | 8mm,12mm Steel Plate Custom‑fabricated | ||
| 40 | Towing Bracket | 30*50 Rectangular Tube Custom‑made | |||
| 41 | Vertical Shaft | Φ30, 45# Round Steel Custom‑made | |||
| 42 | Control Handle | Nameplate | Custom‑designed, nice‑looking and practical | ||
| 43 | Rear Axle | ||||
| 44 | Motor | ||||
| 45 | Storage Battery | ||||
| 46 | Controller | ||||
| 47 | Tire | 500‑8 | Brand‑name, 4 pieces | ||
| 48 | Others & Safety | Surface Treatment | Shot blasting & sand blasting for rust removal | Removes rust and weld spatter on steel components; creates micro‑rough surface to enhance powder coating adhesion | |
| 49 | Coating | Electrostatic powder spraying | Excellent coating appearance, strong adhesion & mechanical strength, high gloss, fade‑resistant | ||
| 50 | Lifting Speed | Rising: 4‑6 m/min | Descending speed adjustable | ||
| 52 | Guardrail | 30*30 Square Tube, 1.1 m height | |||
| 53 | Safety Markings | General‑purpose safety labels fitted to remind operators and guarantee operational safety |

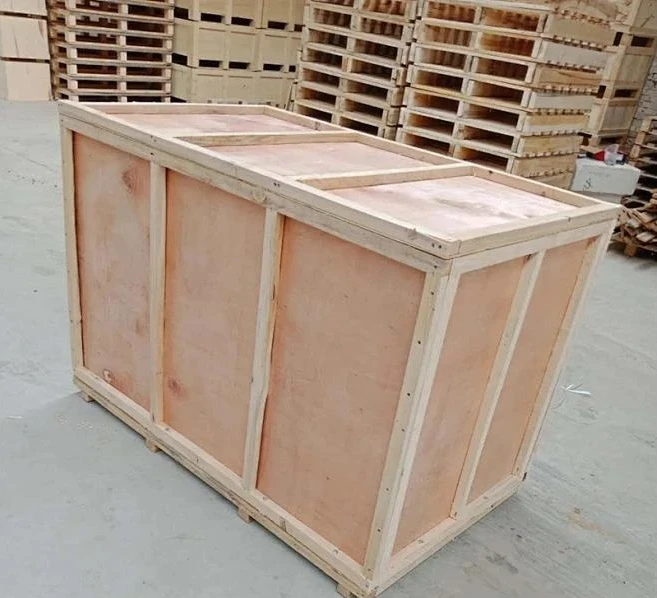

Packaging and shipping
