Benefits of Mobile Scissor Lift
Better Productivity After lifting the platform to your working height, you can drive the lift directly to shift positions. There is no need to keep lowering it for relocation, cutting lots of wasted time on site.
Easy to operate, great for new users The controls are laid out in a simple way. Lifting and travelling run smoothly. New operators can pick up the operation fast without lengthy training.
Fits narrow and restricted areas Thanks to its compact size, this lift can easily go through standard doorways, warehouse aisles and tight workshop zones.
Solid, steady lift with no shake at height The scissor structure distributes weight evenly. It moves up and down smoothly, so you can work at height without wobbling.
Full safety pack for peace of mind All key safety parts come fitted as standard: emergency stop, manual backup lowering, tilt alarm, overload cut-off and anti-tip protection for uneven ground.
Simple upkeep and low running expense The electric-hydraulic design makes daily maintenance straightforward. It rarely breaks down, which helps hold down your long-term operating costs.
Flexible selections for different jobs Pick from various lifting heights, load ratings and battery configurations to match what you need for your site work.
Components of Self Propelled Mobile Scissor Lift

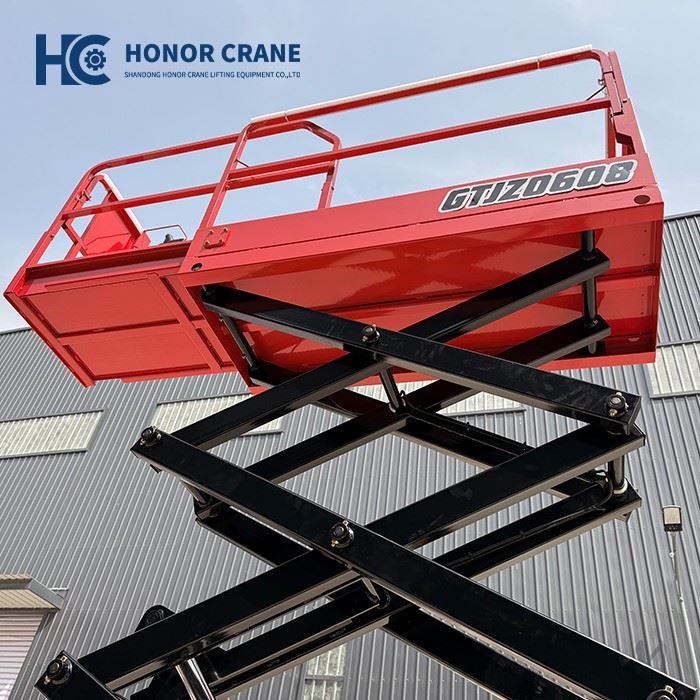

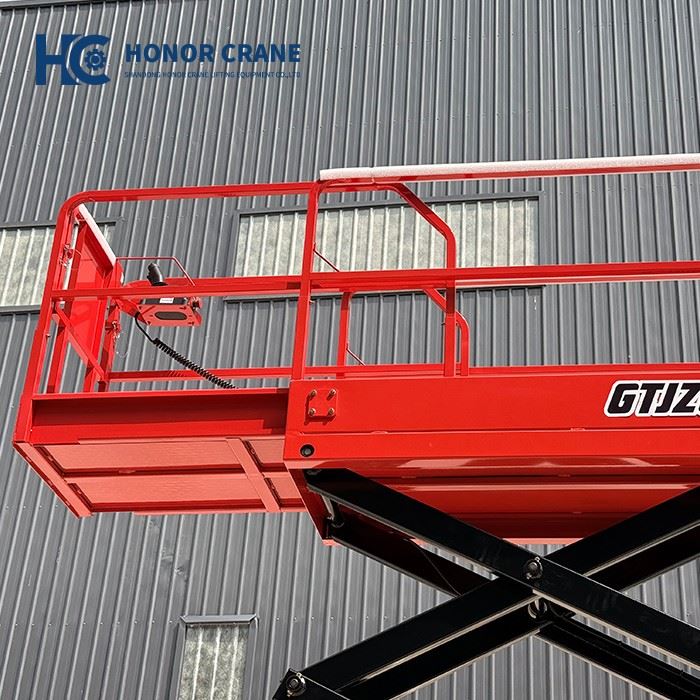

Work platform
Work platform where the workers stand to operate and place their tools. All around it, there are protective railings installed. This makes it safer for maintenance workers and equipment installers to work up high.

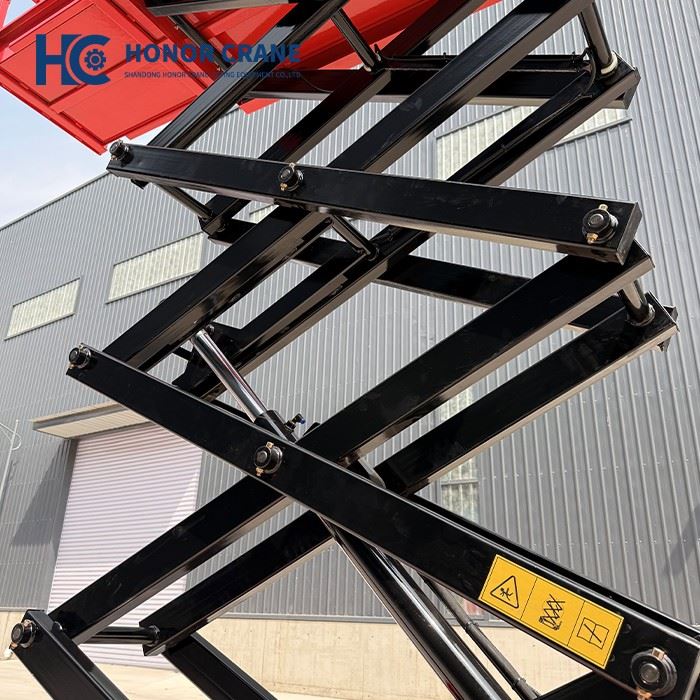

Scissor arms
Entire equipment's lifting and lowering are all supported by it. It uses hydraulic cylinders to drive the extension and retraction of the scissor mechanism. The up and down movements are very stable and won't shake.
Hydraulic lifting system
Entire lifting power core is driven by hydraulic cylinders to make the scissor arms extend and retract. The lifting process is smooth and the load-bearing capacity is more stable. This is also the key to the equipment's stable operation.
Electric Drive System
Entire machine is fully electric and can move independently. The operator can directly control it to move forward, backward and make turns without having to exert much effort in pushing or pulling. This significantly improves the efficiency of on-site work.
Control Panel
All the lifting, moving and stopping operations are completed on this panel. The button logic is simple and easy to understand, and workers can quickly get started with the operation after just a glance.
Safety Protection Device
Safety configuration is very comprehensive: there are emergency stop buttons, tilt power-off alarms, load overload protection, anti-slip on uneven roads, and manual lowering of the platform when power is off. All these features minimize the risks of high-altitude operations and make the use of the equipment more reassuring.
Products Specification
| Model | HCGTJZ0406 | HCGTJZ0608 | HCGTJZ0608 | HCGTJZ0810 | HCGTJZ1012 | HCGTJZ1214 | HCGTJZ1416 |
| Maximum working height | 5.8 m | 7.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m | 15.8 m |
| Maximum platform height | 3.8 m | 5.8 m | 5.8 m | 7.8 m | 9.8 m | 11.8 m | 13.8 m |
| Overall length | 1.44 m | 1.82 m | 2.39 m | 2.39 m | 2.39 m | 2.39 m | 2.79 m |
| Overall width | 0.70 m | 0.78 m | 1.16 m | 1.16 m | 1.16 m | 1.16 m | 1.25 m |
| Overall height (unfolded fence) | 1.86 m | 2.02 m | 2.21 m | 2.34 m | 2.47 m | 2.60 m | 2.60 m |
| Overall height (folded fence) | 1.46 m | 1.62 m | 1.7 m | 1.82 m | 1.94 m | 2.06 m | 2.1 m |
| Work platform dimensions (length x width) | 1.3*0.68 m | 1.68*0.78 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.27*1.13 m | 2.63*1.13 m |
| Platform extension size | 0.55 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Wheelbase | 1.02 m | 1.35 m | 1.86 m | 1.86 m | 1.86 m | 1.86 m | 2.23 m |
| Ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| RATED LOAD | 230 kg | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Machine travel speed (retracted state) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine travel speed (lifting state) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rise/fall time | 3-5m/min | 3-5m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable angle for work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Front-wheel drive | Front-wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| Tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire | Seamless solid tire |
| Tire Size | φ230*80mm | φ305*100mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power source | 2*12V/85AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 1.2KW | 1.2KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Drive motor | 2*0.5KW | 2*0.5KW | - | - | - | - | - |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Whole machine weight | 860 kg | 1200 kg | 2100 kg | 2250 kg | 2550 kg | 2950 kg | 3450 kg |
Working Process of Self Propelled Mobile Scissor Lift
Pre-operation Check Run a quick overall inspection before you start. Check the battery charge, tyres, hydraulic parts, safety devices and control panel. Confirm everything works properly prior to operation.
Position the Lift Drive the lift to your work spot using the built-in controls. Since it moves under its own power, you won't need a tow vehicle or extra transport gear. You can shift it around the site as needed.
Lift the Platform Flip on the lifting control. Hydraulic cylinders extend the scissor arms, raising the platform steadily to the height you need for the job.
Carry out Aerial Work You can reposition the lift slowly at working height within the permitted range. Complete installation, inspection, maintenance and other overhead tasks while staying inside the guardrails and load limit.
Lower the Platform Once the work is finished, lower the platform fully before moving the lift.
Park and Daily Check Drive the lift to its parking area and shut down the power. Give it a quick visual check and simple routine service so it's ready for the next job.
FAQ
01. How do I choose the right model?
02. Can the lift move while the platform is raised?
03. Do you support customization?
04. Do you test the machine before delivery?
